Code 32: EGR Sensor (CALIF)

Fig 1: Code 32: EGR Sensor (Calif) (1 of 2)

G91D16587

Courtesy of NISSAN MOTOR CO., U.S.A.

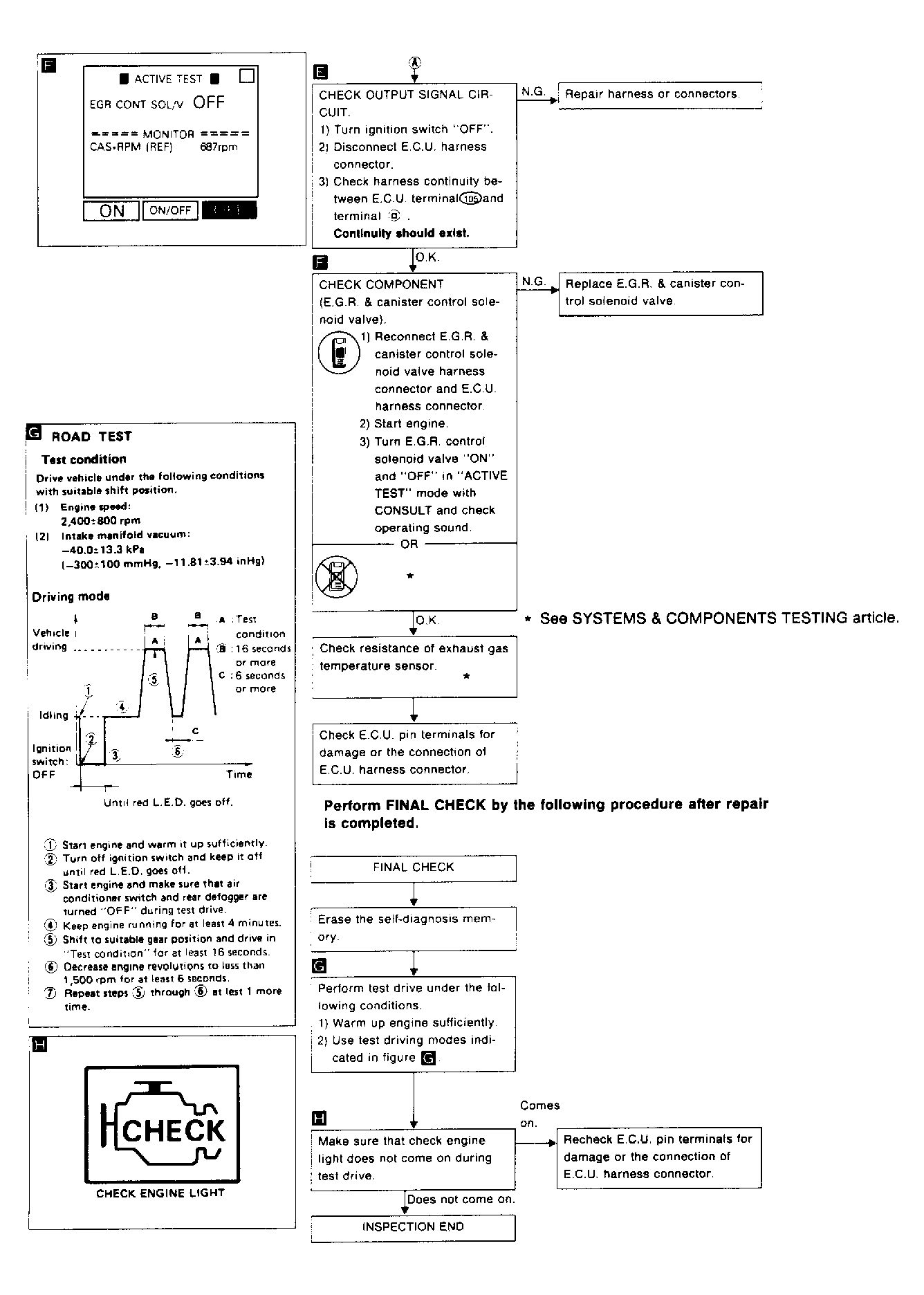

Fig 2: Code 32: EGR Sensor (Calif) (2 of 2)

G91E16588

Courtesy of NISSAN MOTOR CO., U.S.A.
