Component Locations

COMPONENT LOCATIONS

Component	Locations
Fuse/Relay Block	Behind left kick panel. See Fig 1 .
Ignition Relay	On fuse/relay block. See Fig 1 .
Power Window Amplifier	Behind left kick panel. See Fig 1 .

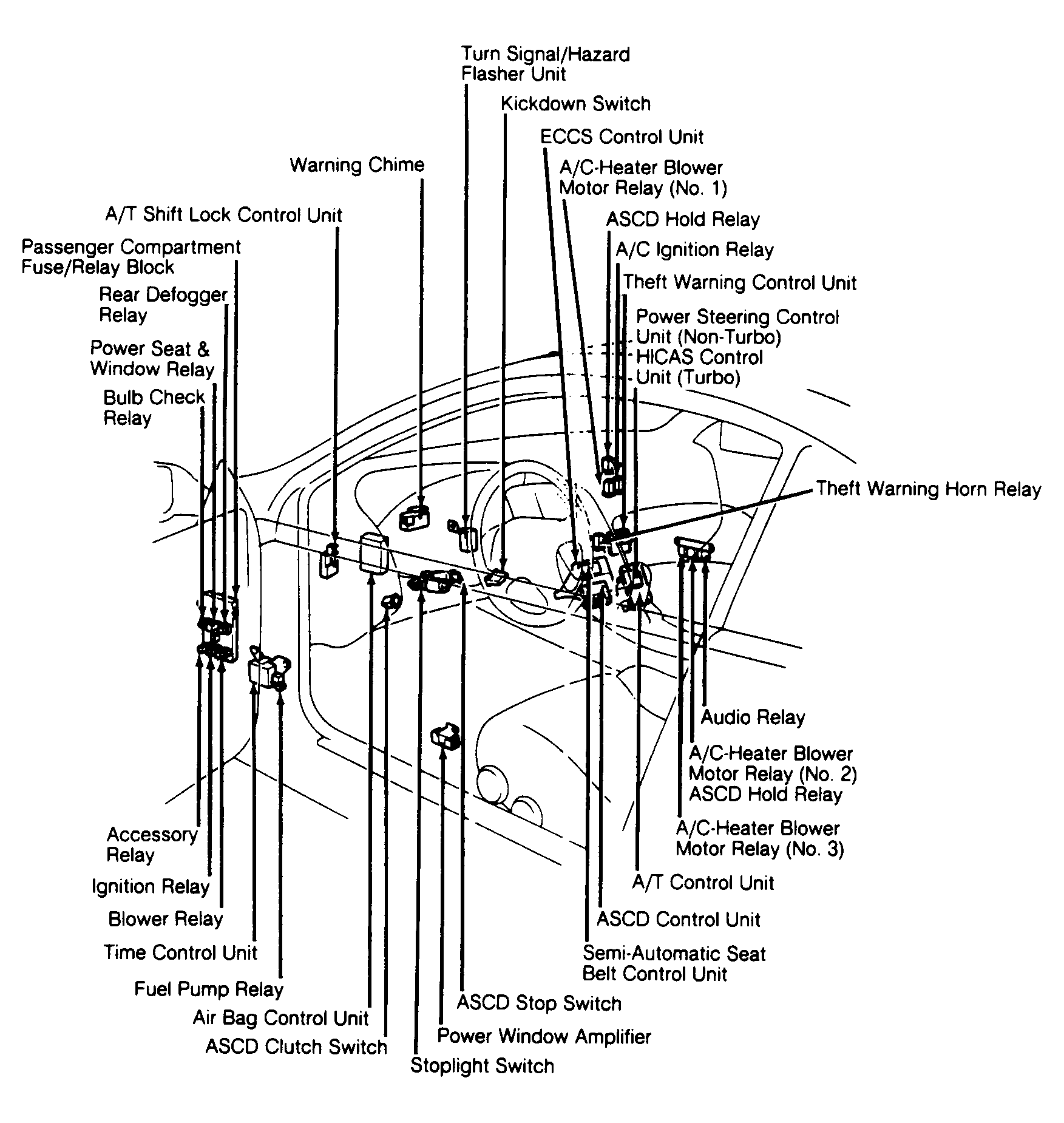

Fig 1: Locating Power Window Electrical Components
