Fuel Pump Chart

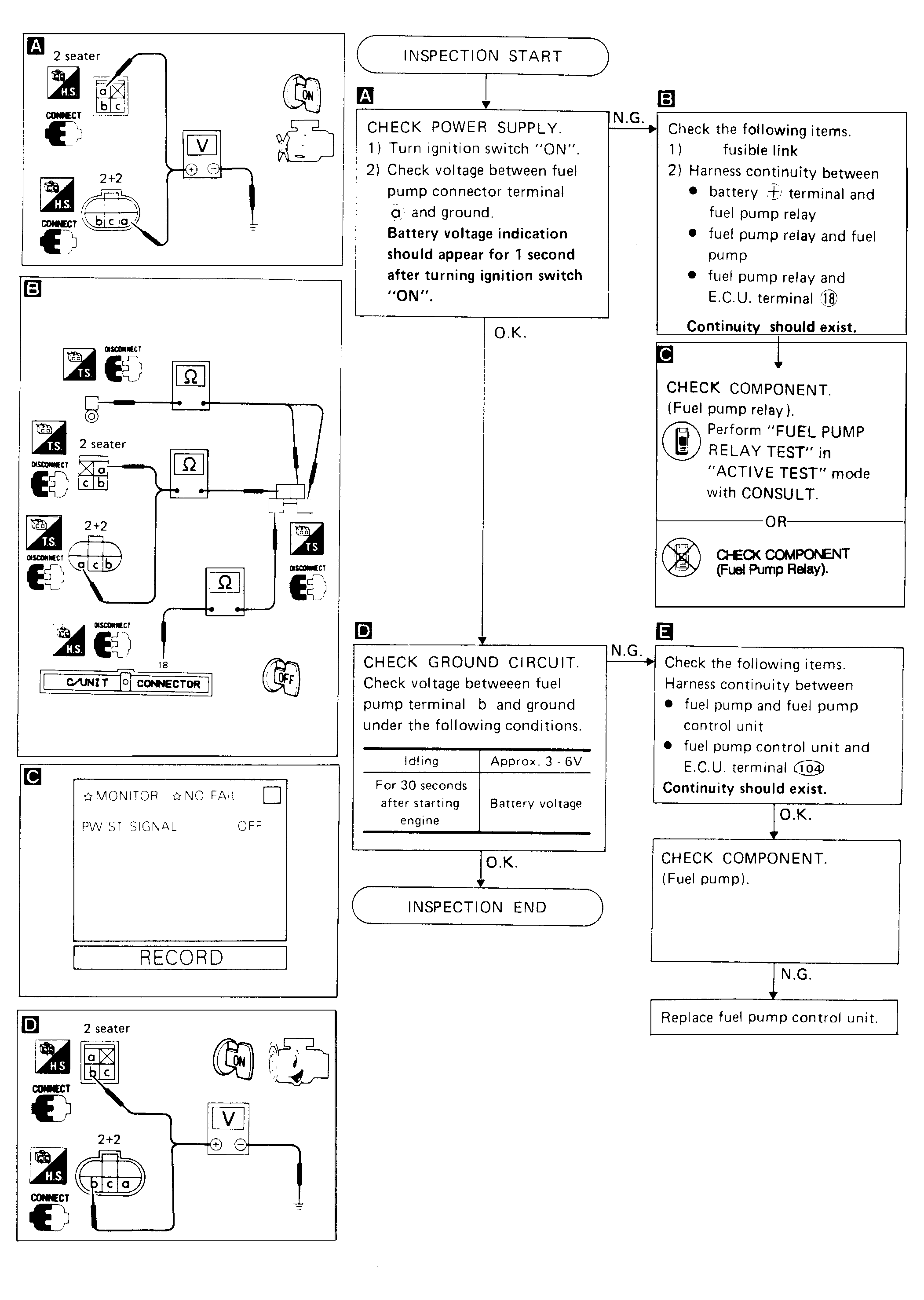

Fig 1: Fuel Pump Diagnostic Chart (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

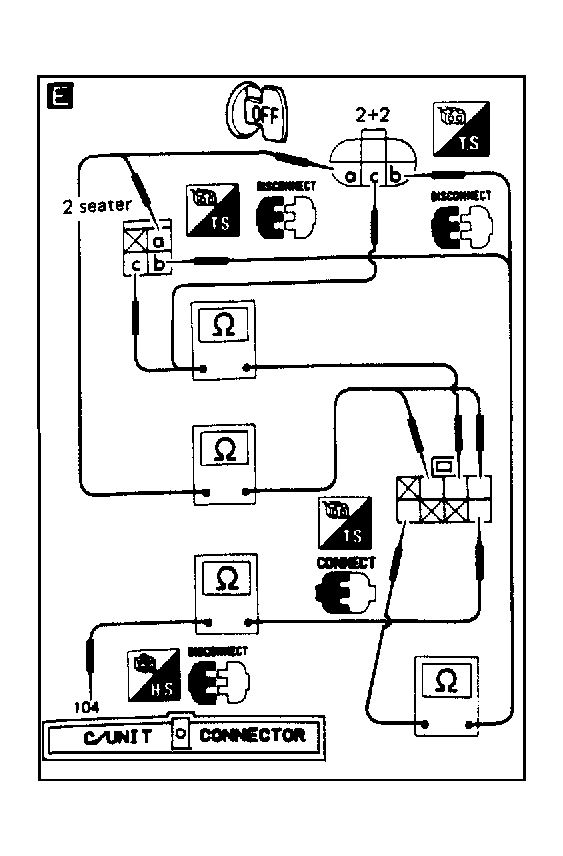

Fig 2: Fuel Pump Diagnostic Chart (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
