Code 32: EGR Sensor (CALIF.)

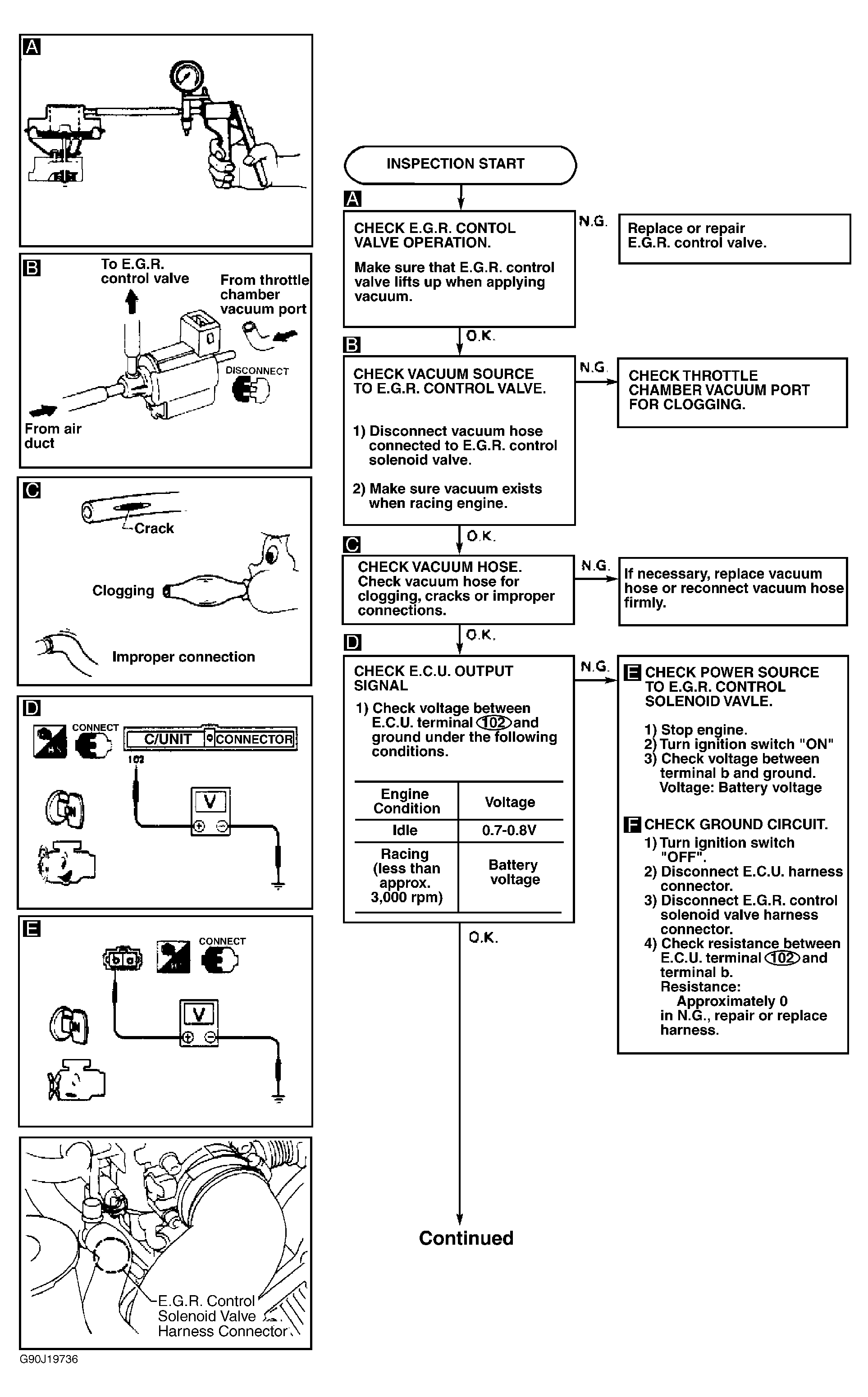

Fig 1: Code 32: EGR Sensor Test (Calif) (1 of 2)

G90J19736

Courtesy of NISSAN MOTOR CO., U.S.A.

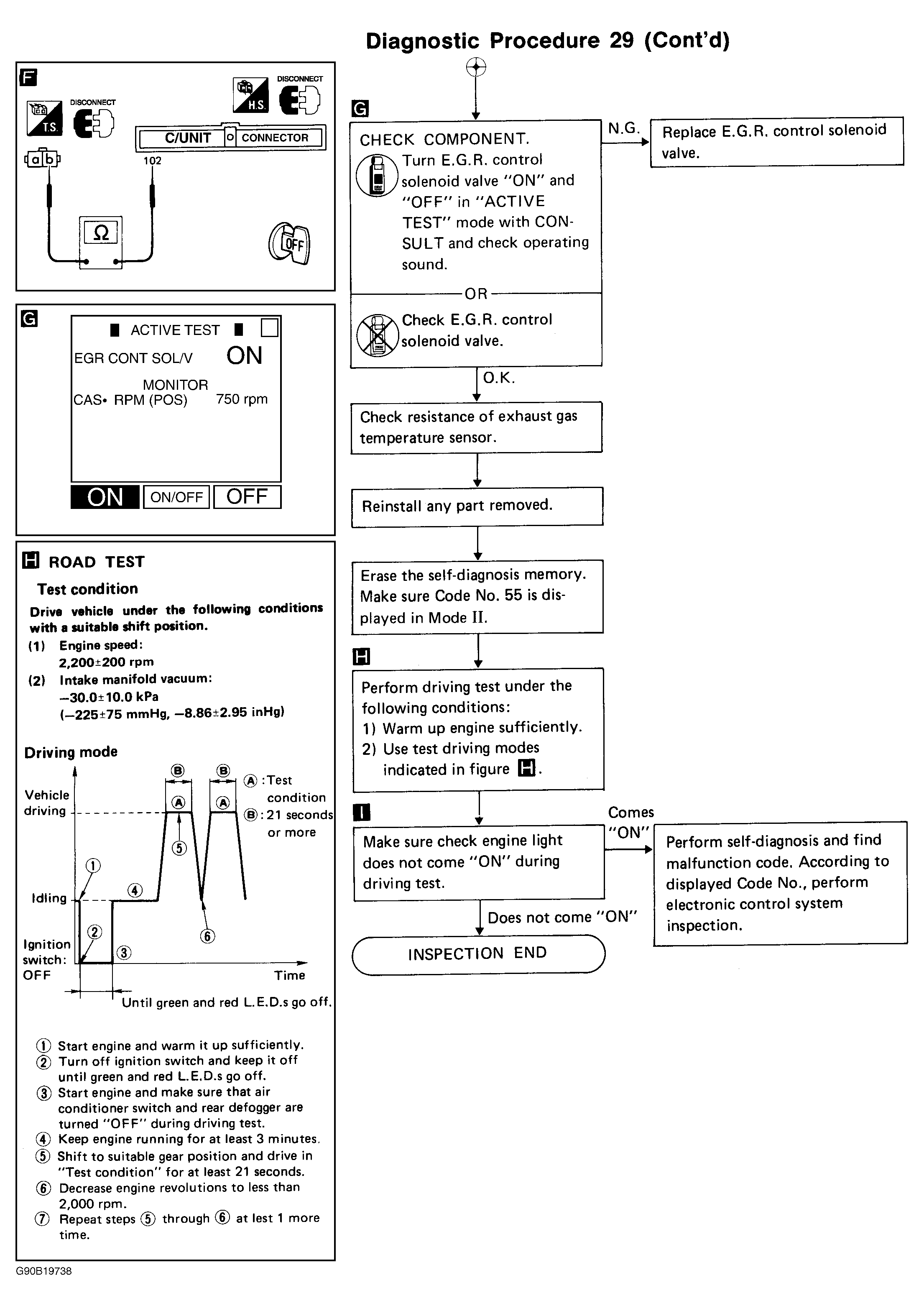

Fig 2: Code 32: EGR Sensor Test (Calif) (2 of 2)

G90B19738

Courtesy of NISSAN MOTOR CO., U.S.A.
