Radiator (Cooling) Fan Control Chart
Radiator (Cooling) Fan Control Chart

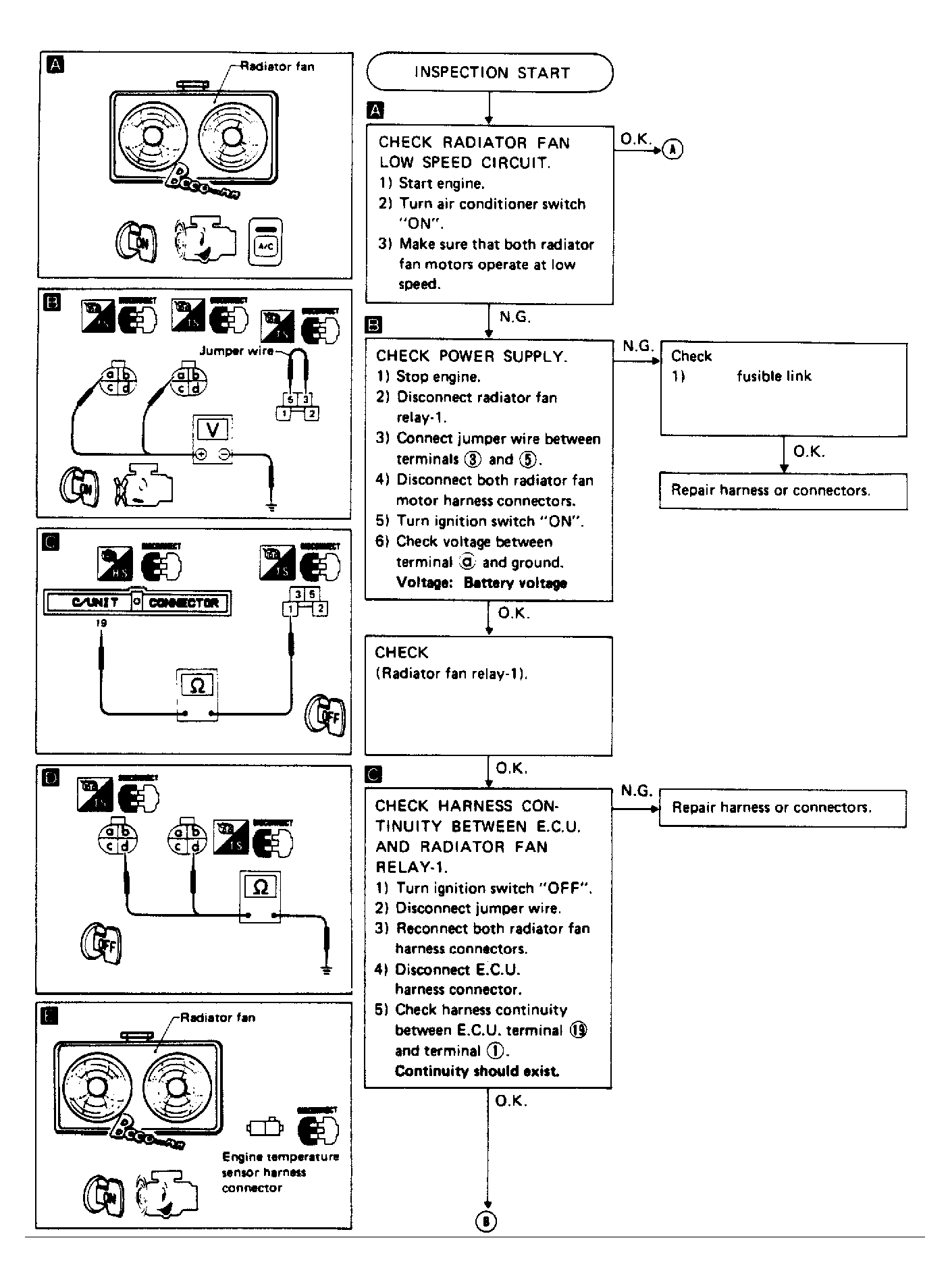

Fig 1: Radiator (Cooling) Fan Control Diagnostic Chart (1 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

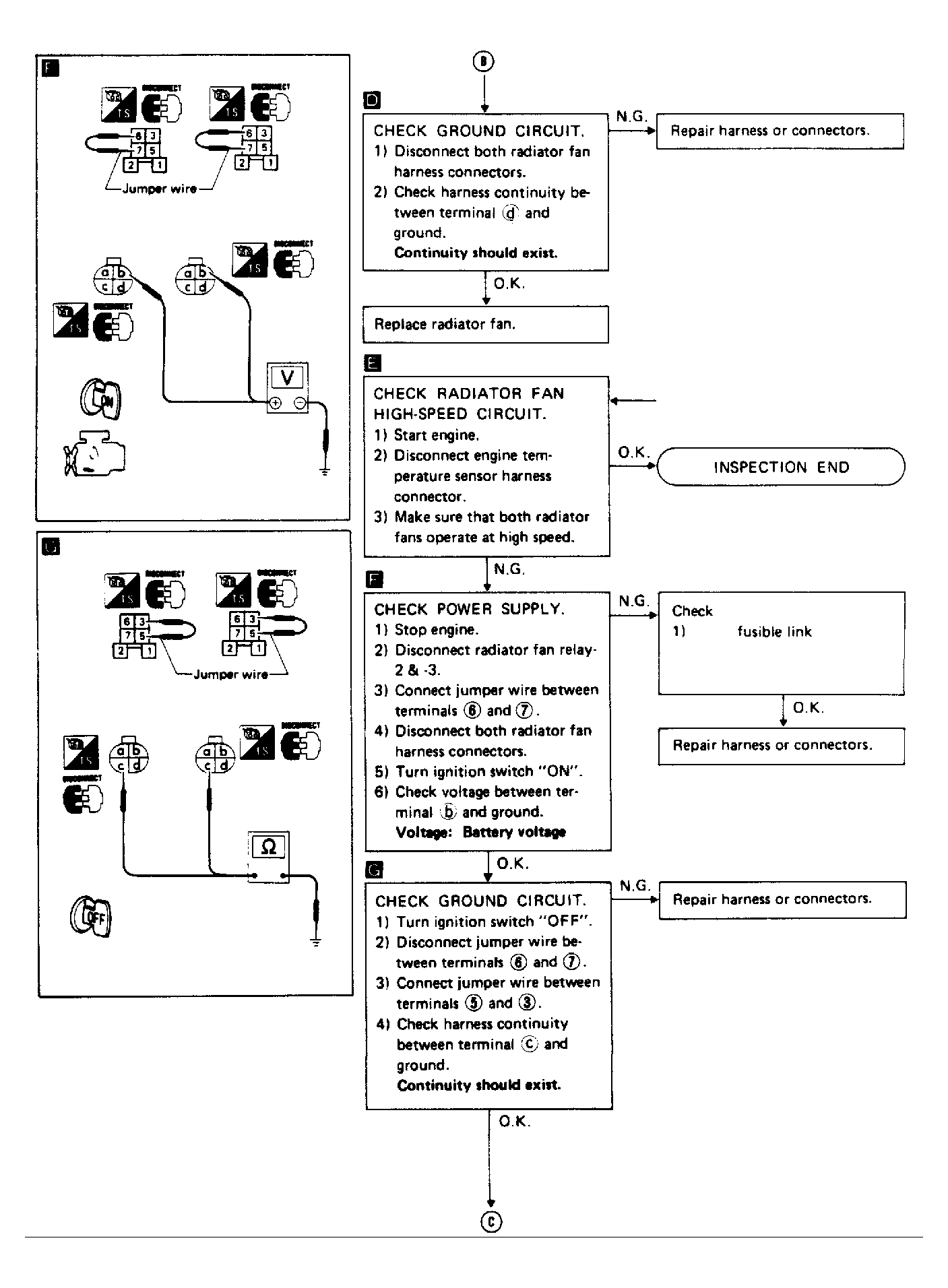

Fig 2: Radiator (Cooling) Fan Control Diagnostic Chart (2 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

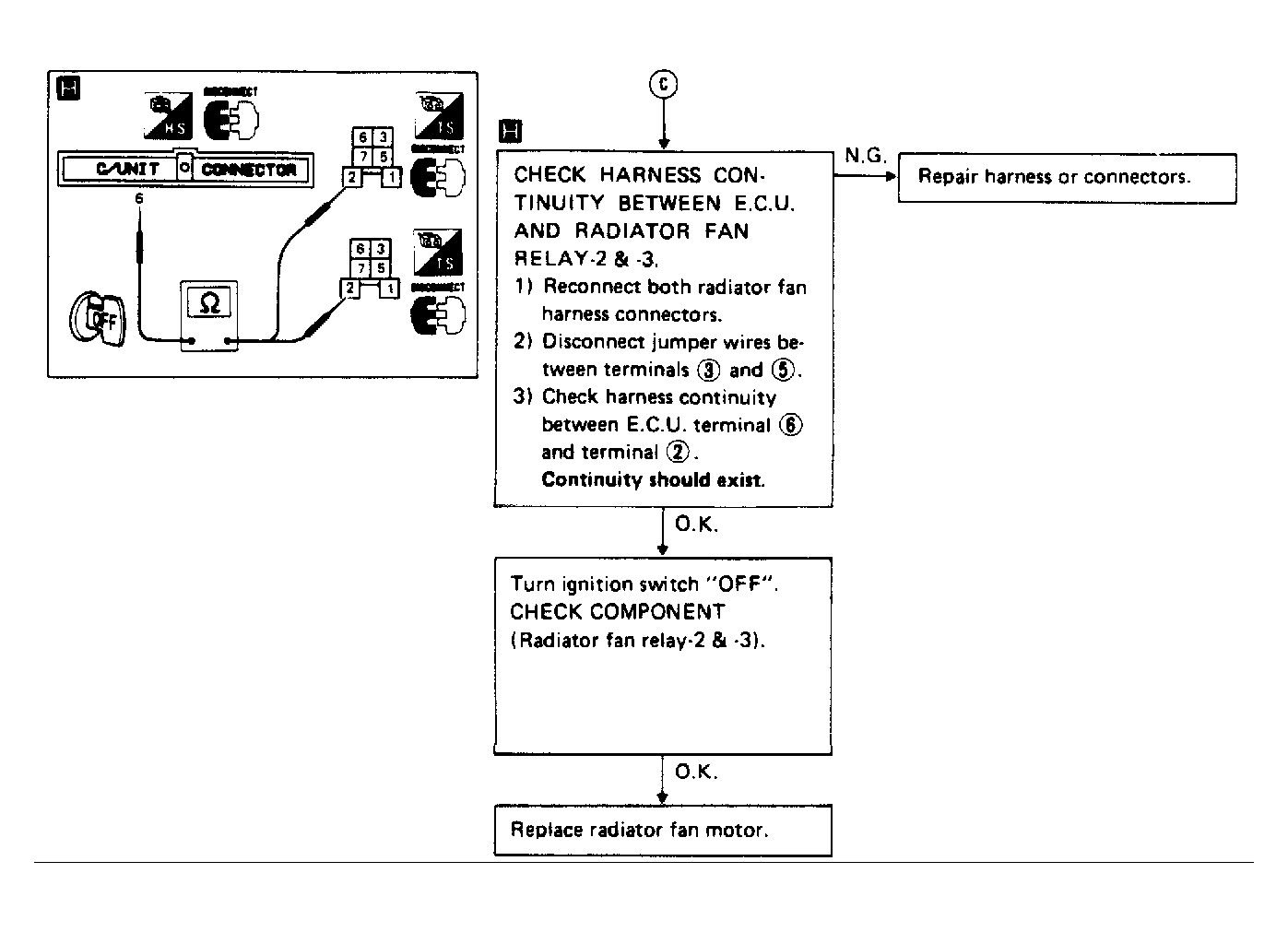

Fig 3: Radiator (Cooling) Fan Control Diagnostic Chart (3 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
