Code 21: No Ignition Reference

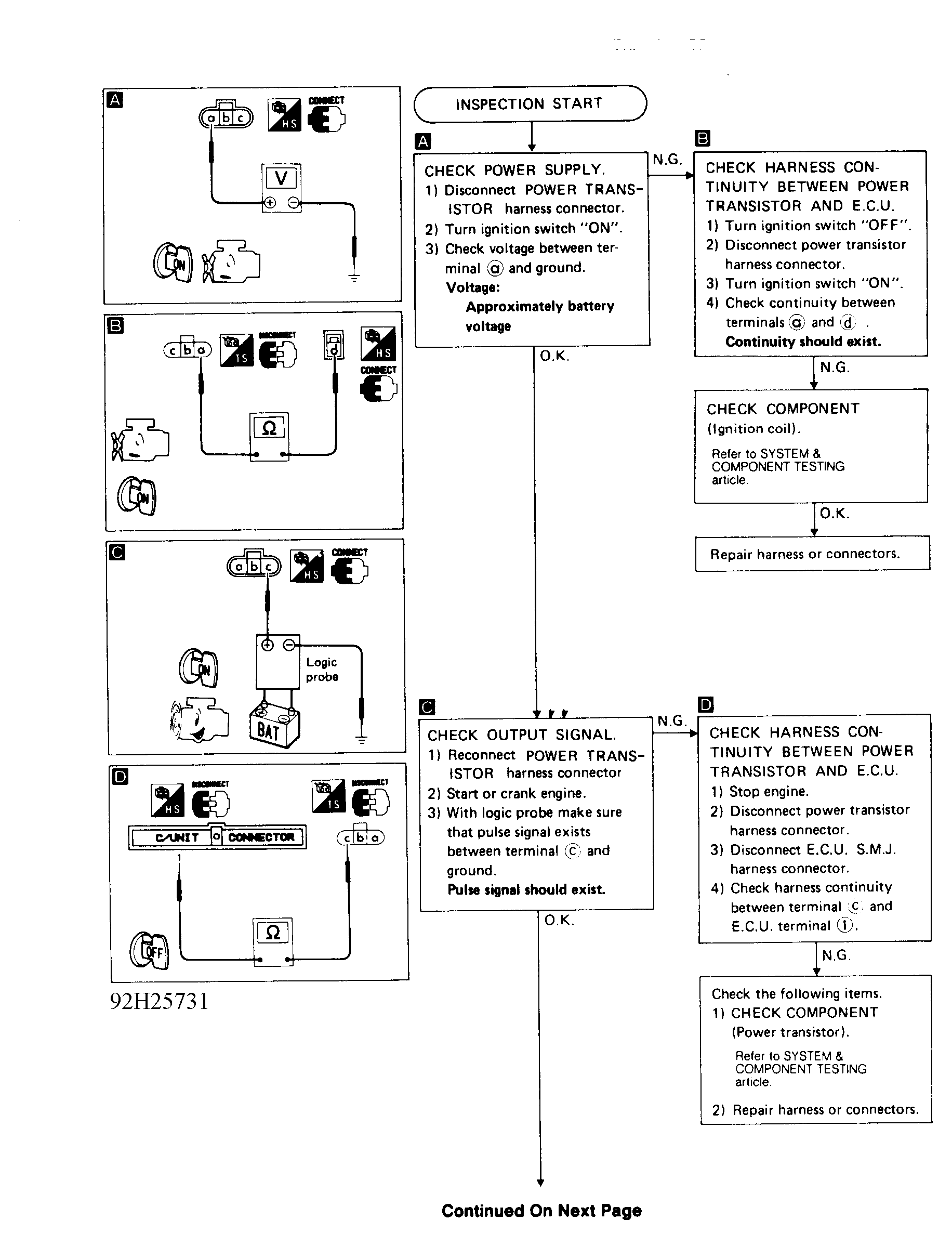

Fig 1: Code 21: No Ignition Reference Test (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

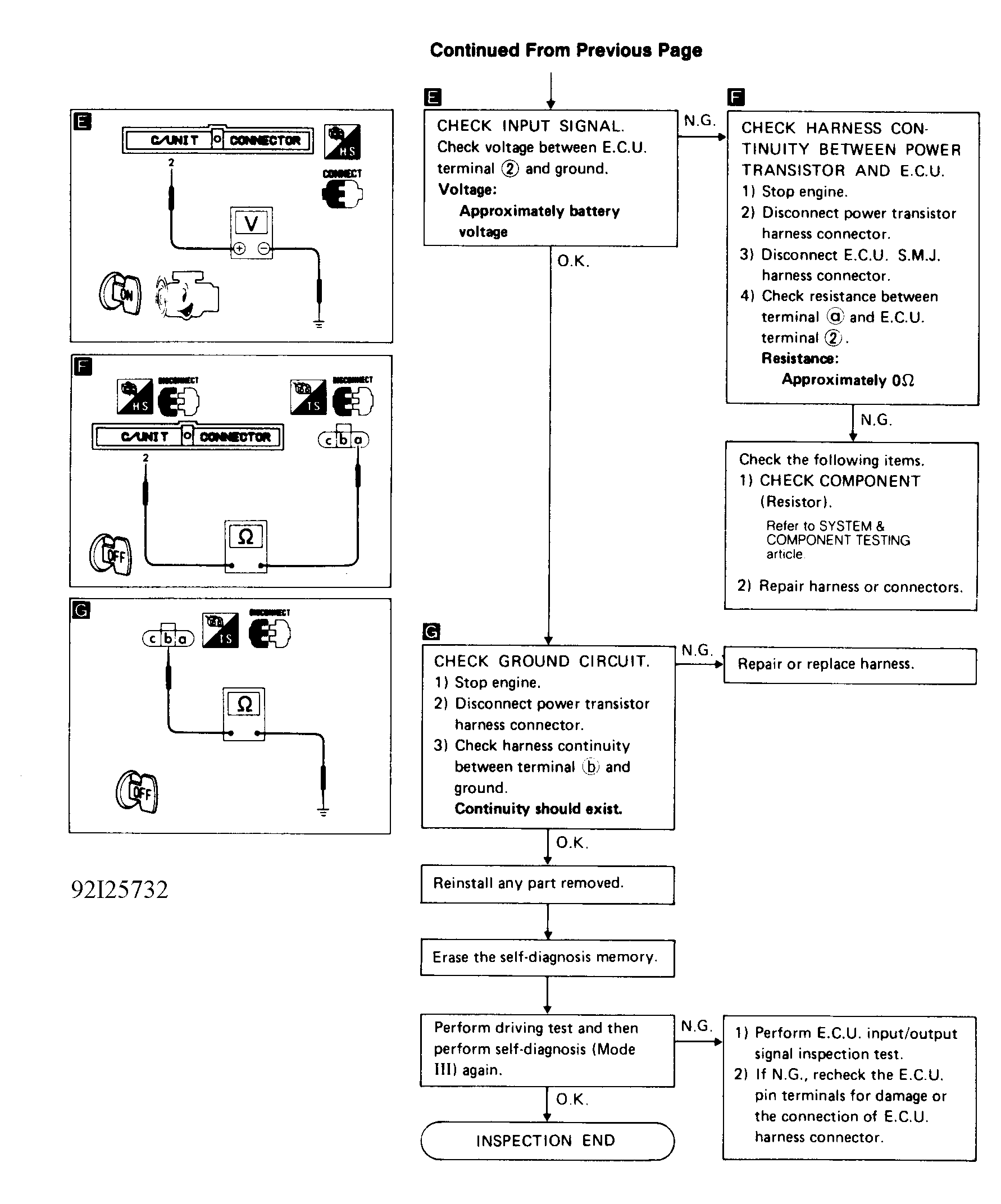

Fig 2: Code 21: No Ignition Reference Test (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
