Engine Controls - System/Component Tests
›
Diagnostic Charts
›
Lock-Up Cancel Chart
Lock-Up Cancel Chart

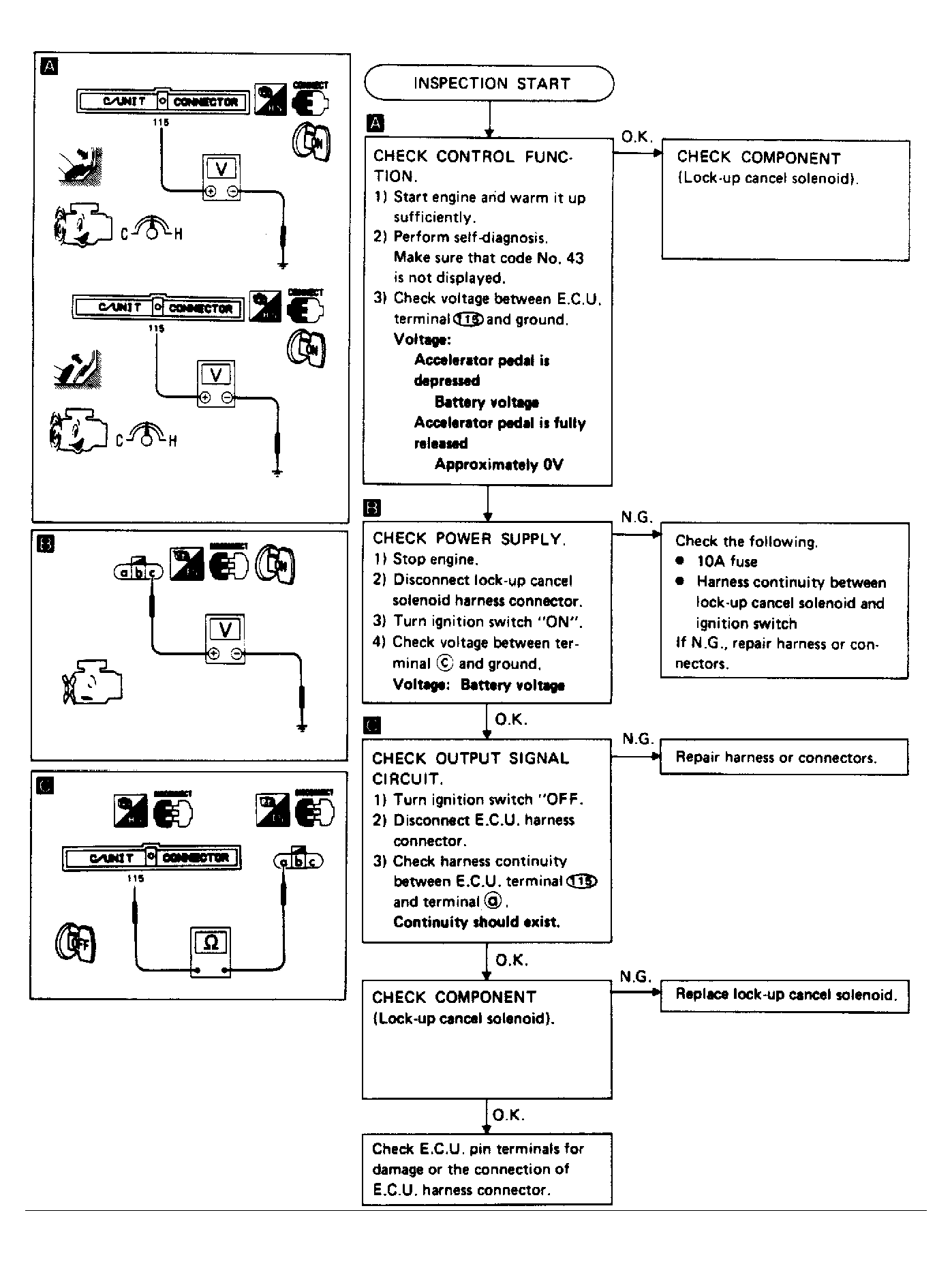

Fig 1: Lock-Up Cancel Diagnostic Chart (Pickup 2.4L)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
