Nissan-Datsun
›
1991
›
Pathfinder SE, Standard
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - System/Component Tests
›
Diagnostic Charts
›
EGR Control Chart
EGR Control Chart

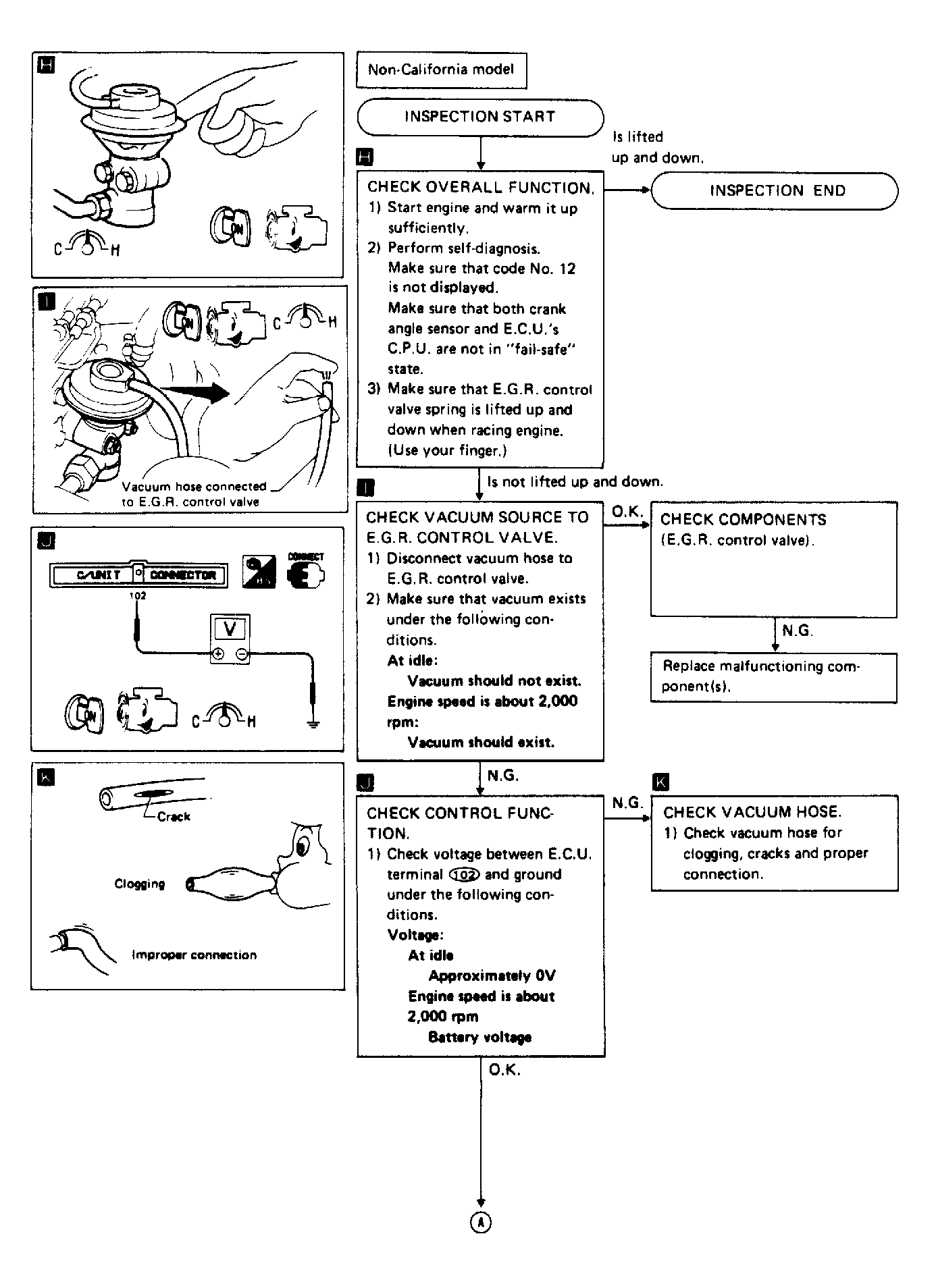

Fig 1: EGR Control Diagnostic Chart (Pickup 2.4L) (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

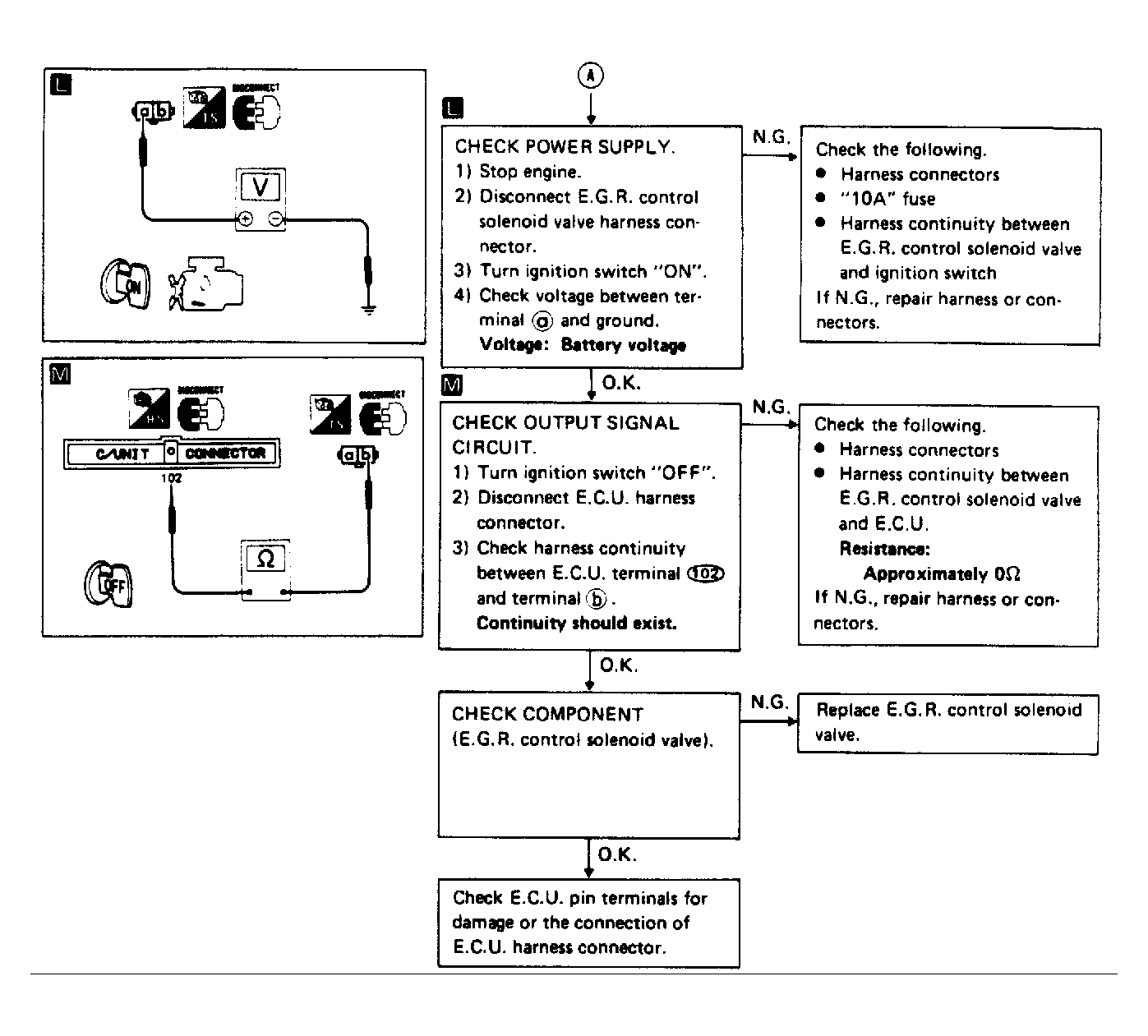

Fig 2: EGR Control Diagnostic Chart (Pickup 2.4L) (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

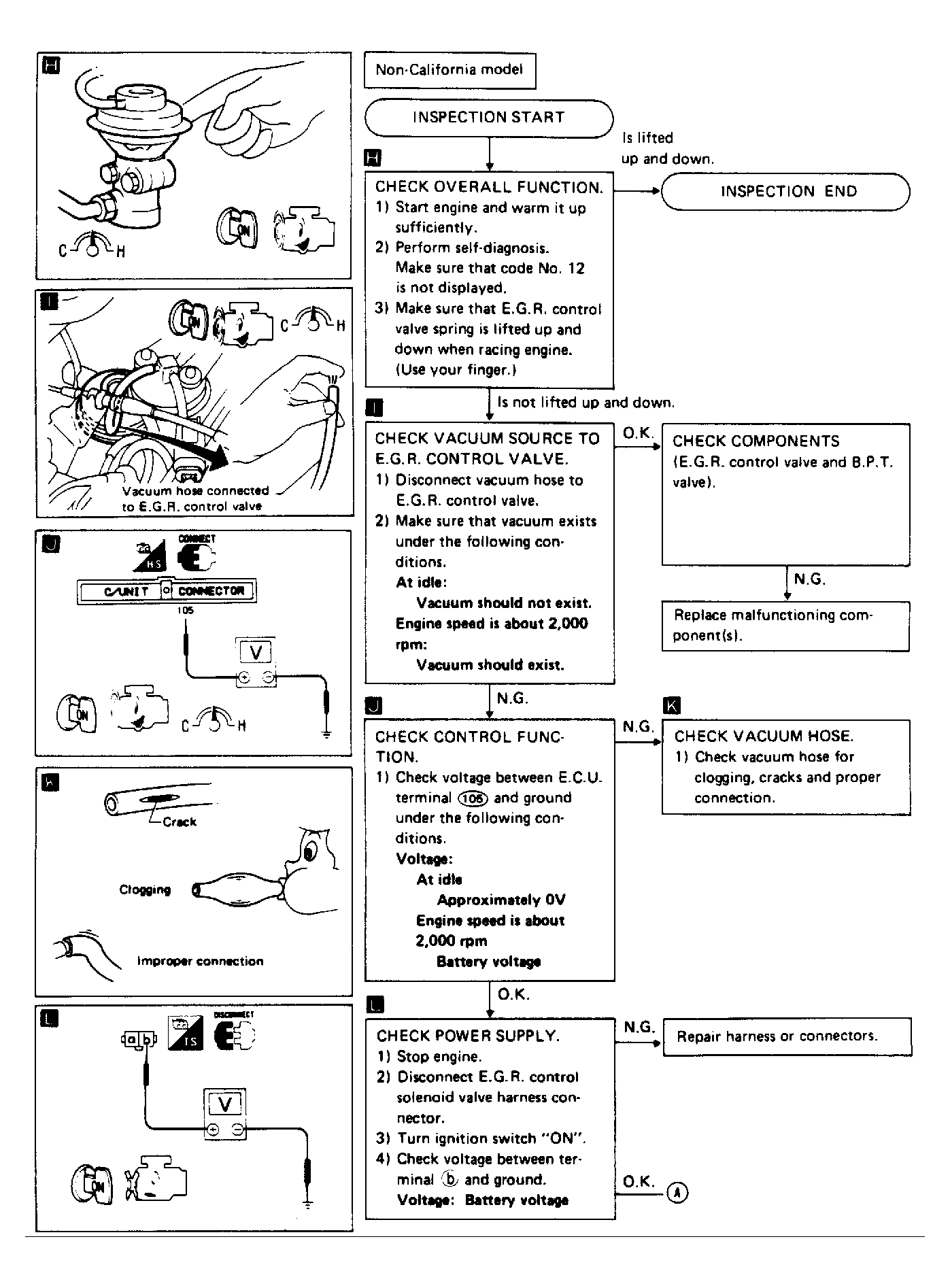

Fig 3: EGR Control Diagnostic Chart (3.0L) (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

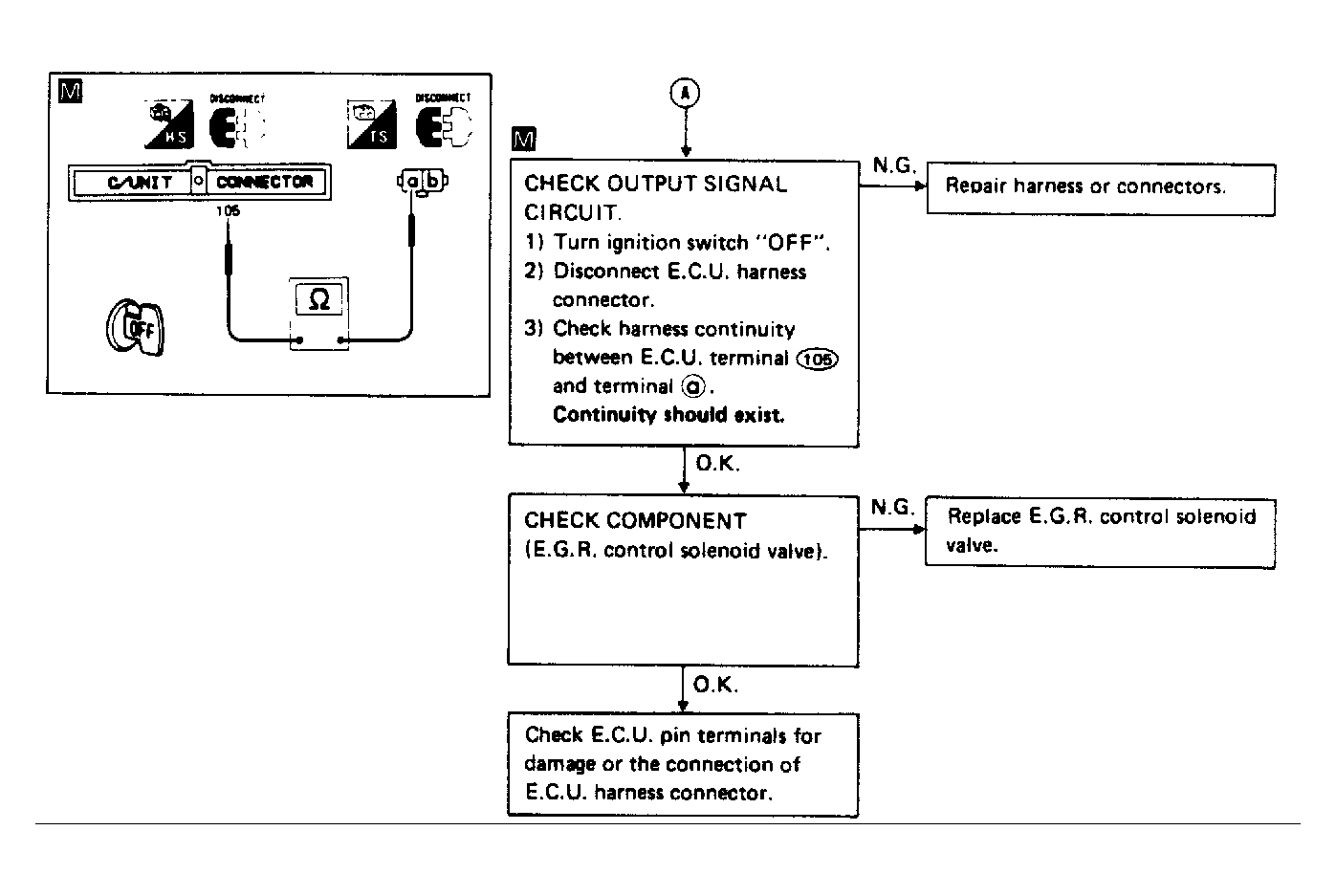

Fig 4: EGR Control Diagnostic Chart (3.0L) (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
