EGR Function Chart

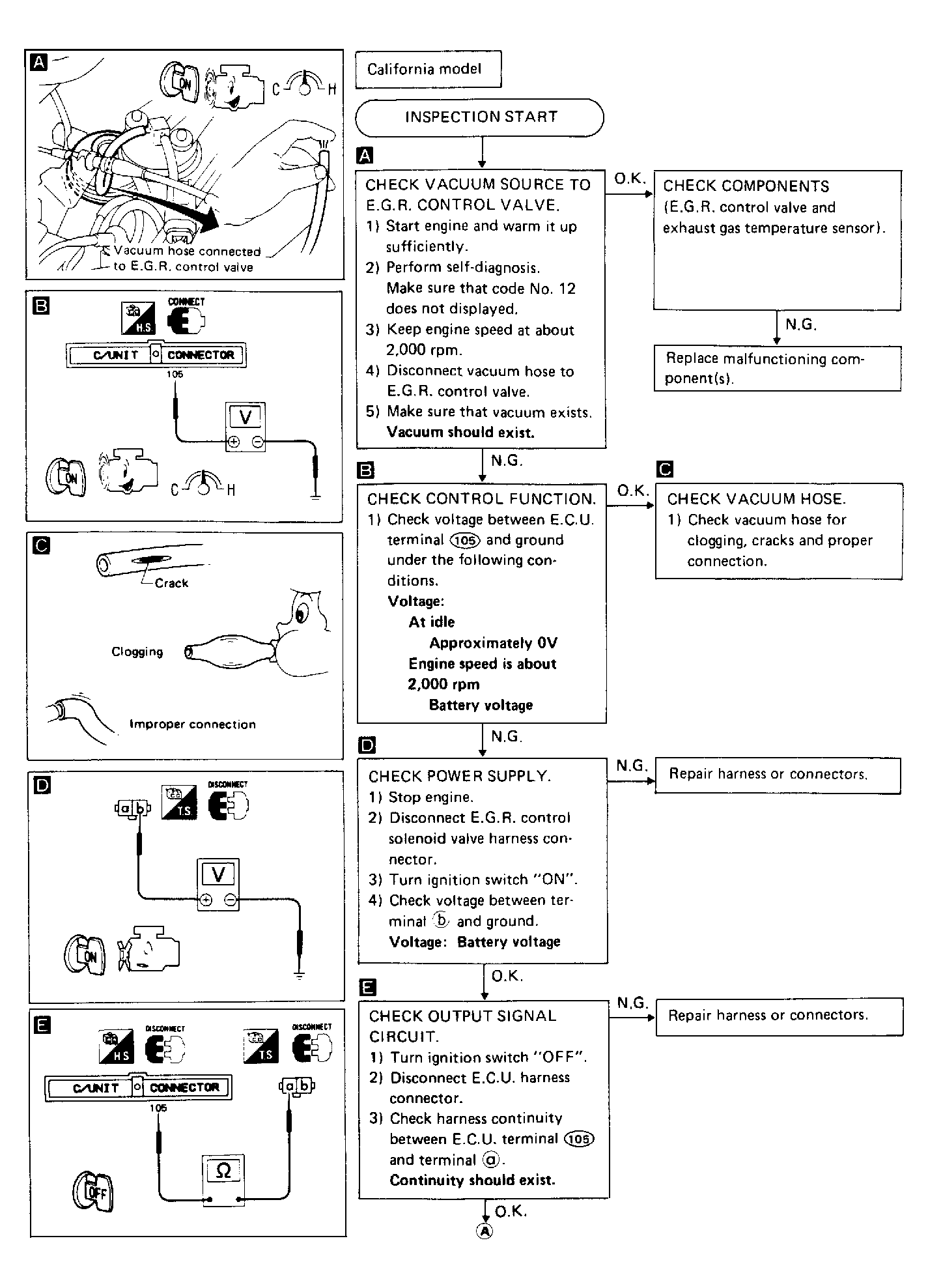

Fig 1: EGR Function Diagnostic Chart (Pickup 2.4L) (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

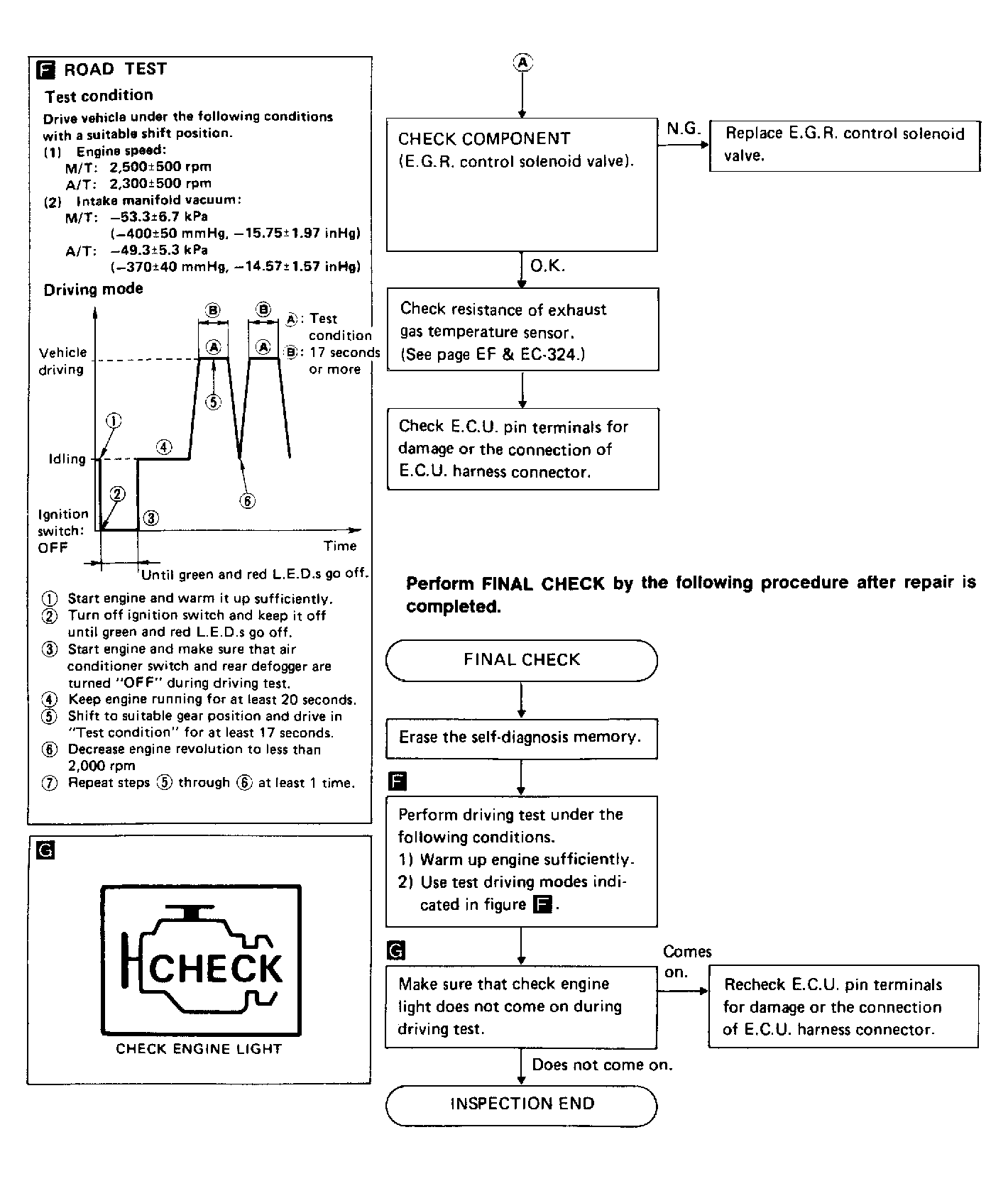

Fig 2: EGR Function Diagnostic Chart (Pickup 2.4L) (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

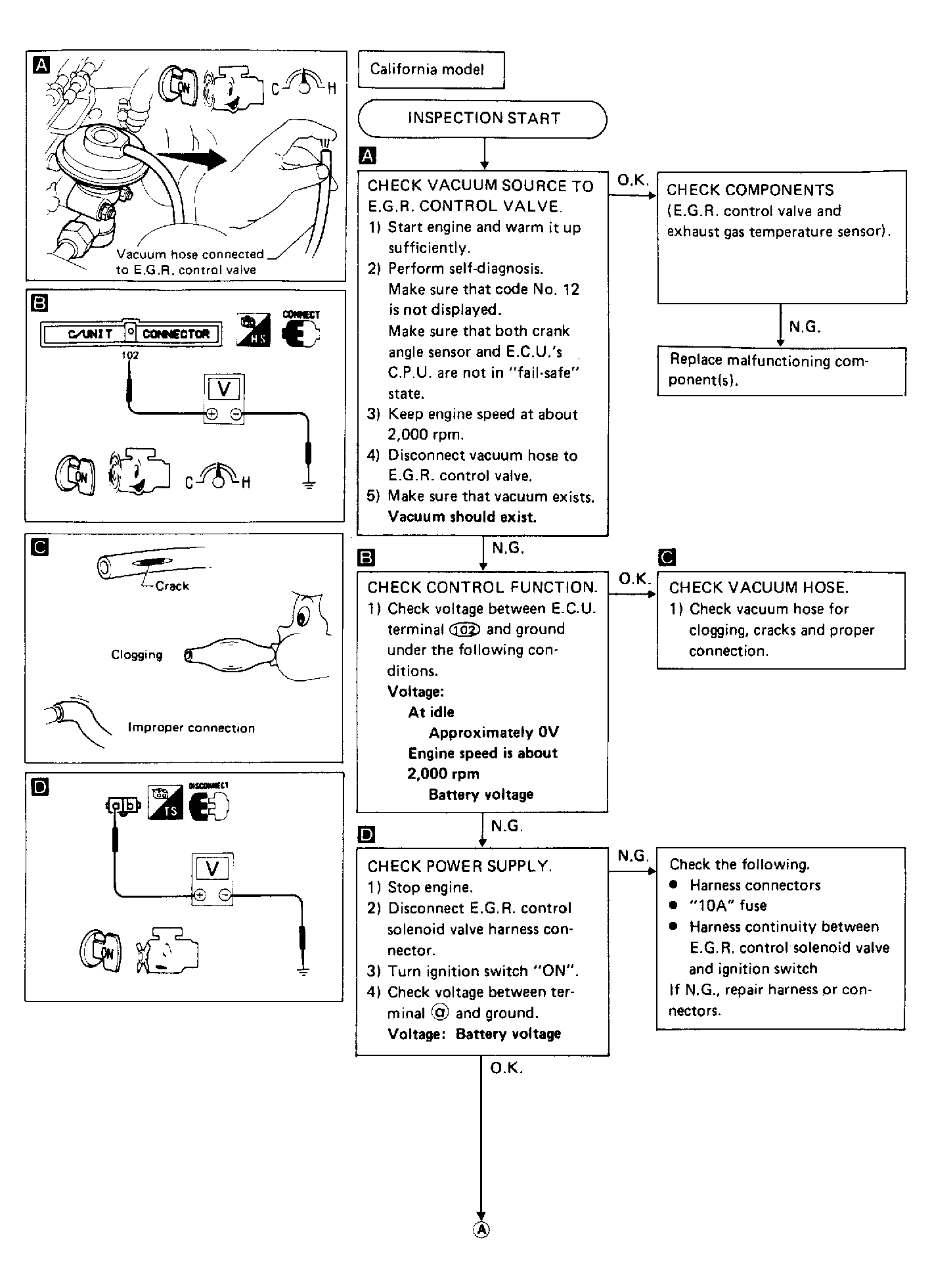

Fig 3: EGR Function Diagnostic Chart (3.0L) (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

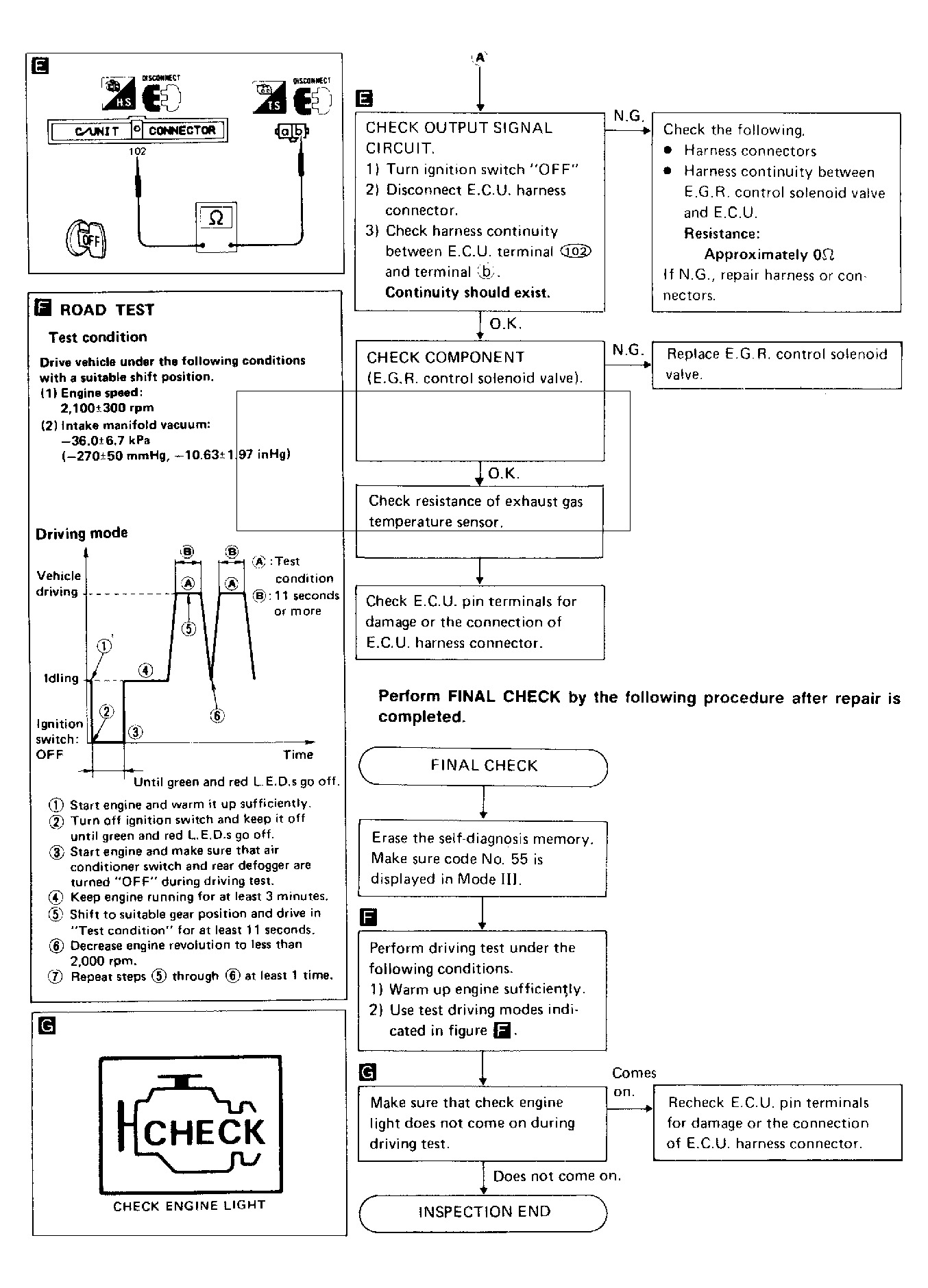

Fig 4: EGR Function Diagnostic Chart (3.0L) (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
