Code 32: EGR Sensor (CALIF. V6)

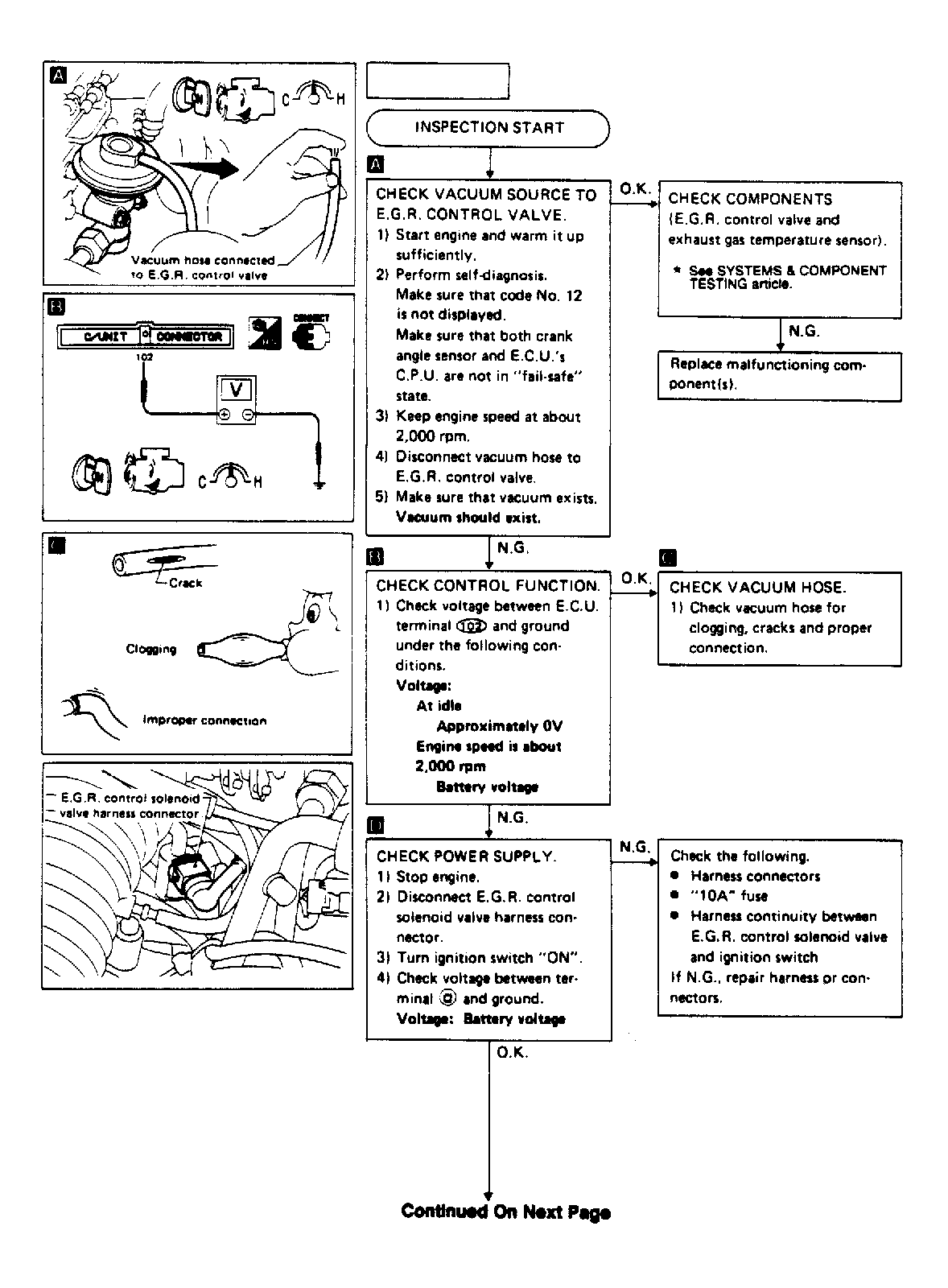

Fig 1: Code 32: EGR Sensor Test (Calif. V6) (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

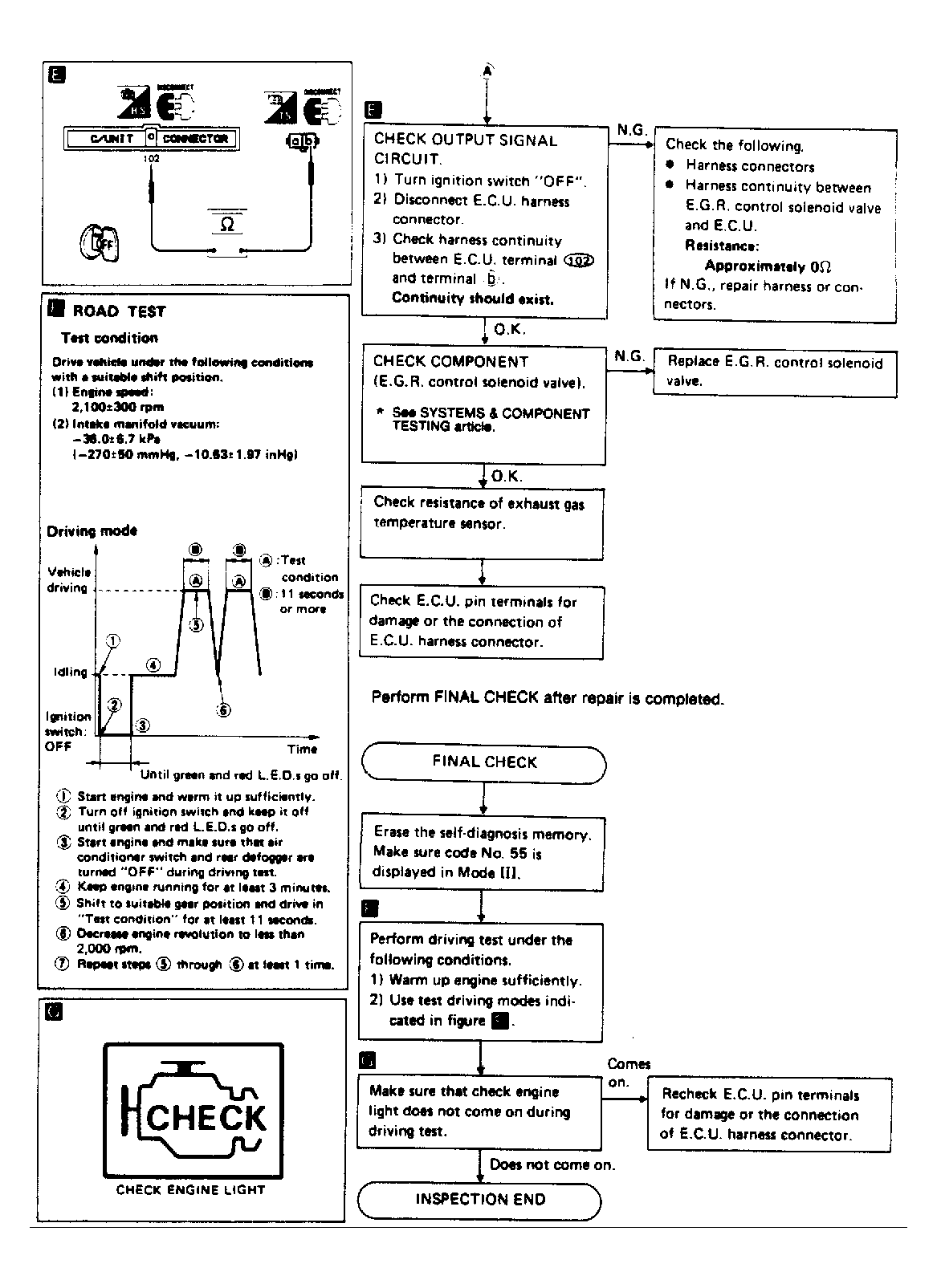

Fig 2: Code 32: EGR Sensor Test (Calif. V6) (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
