Procedure No. 3

Perform this test under the following conditions:

1. Coupe

   If the door locks cannot be operated by driver's side or passenger side lock knob switch.
2. Except Coupe

   If door locks cannot be operated by driver's side or passenger side lock knob switch but can be operated by main switch.

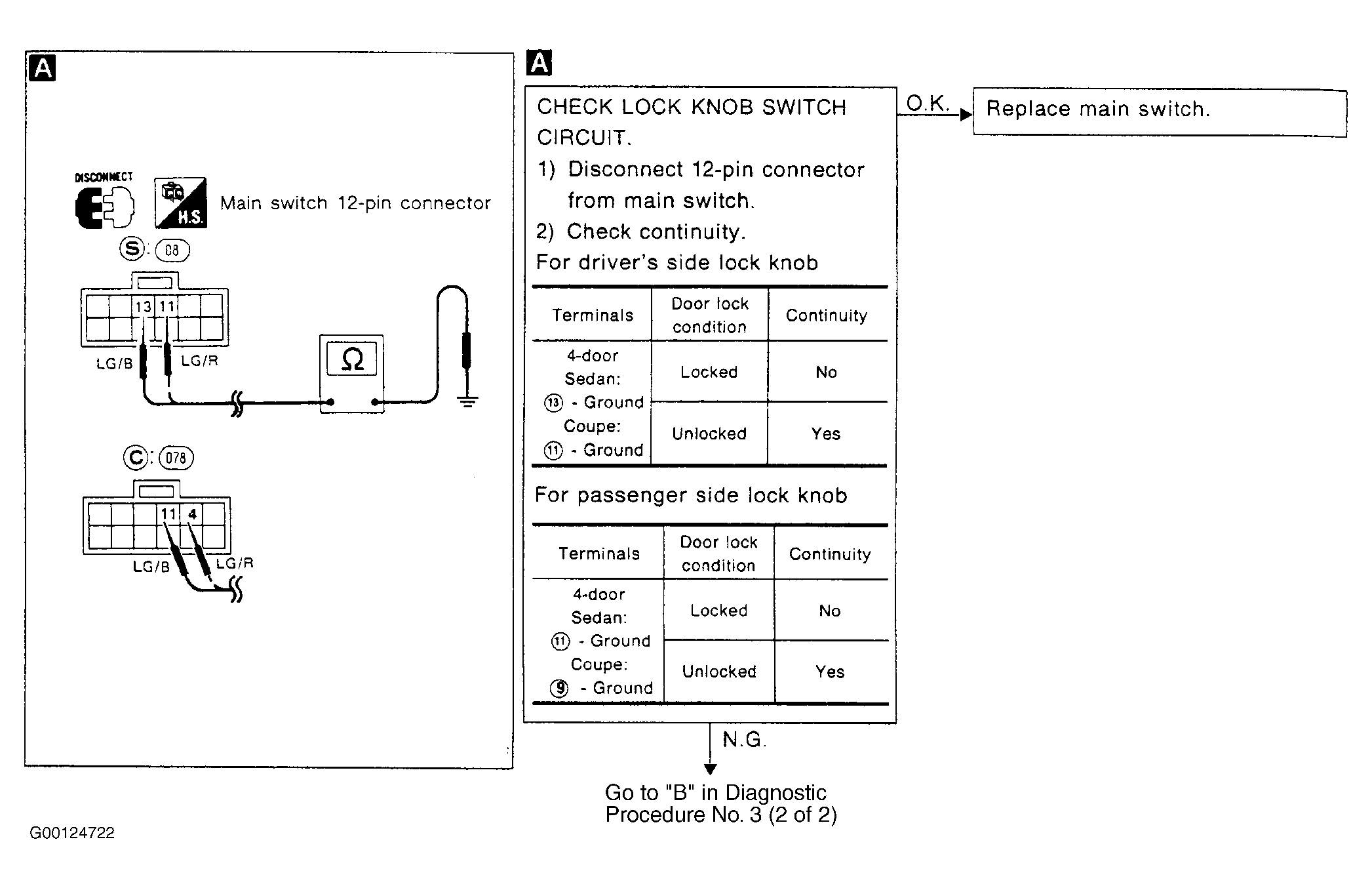

Fig 1: Diagnostic Procedure No. 3 (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

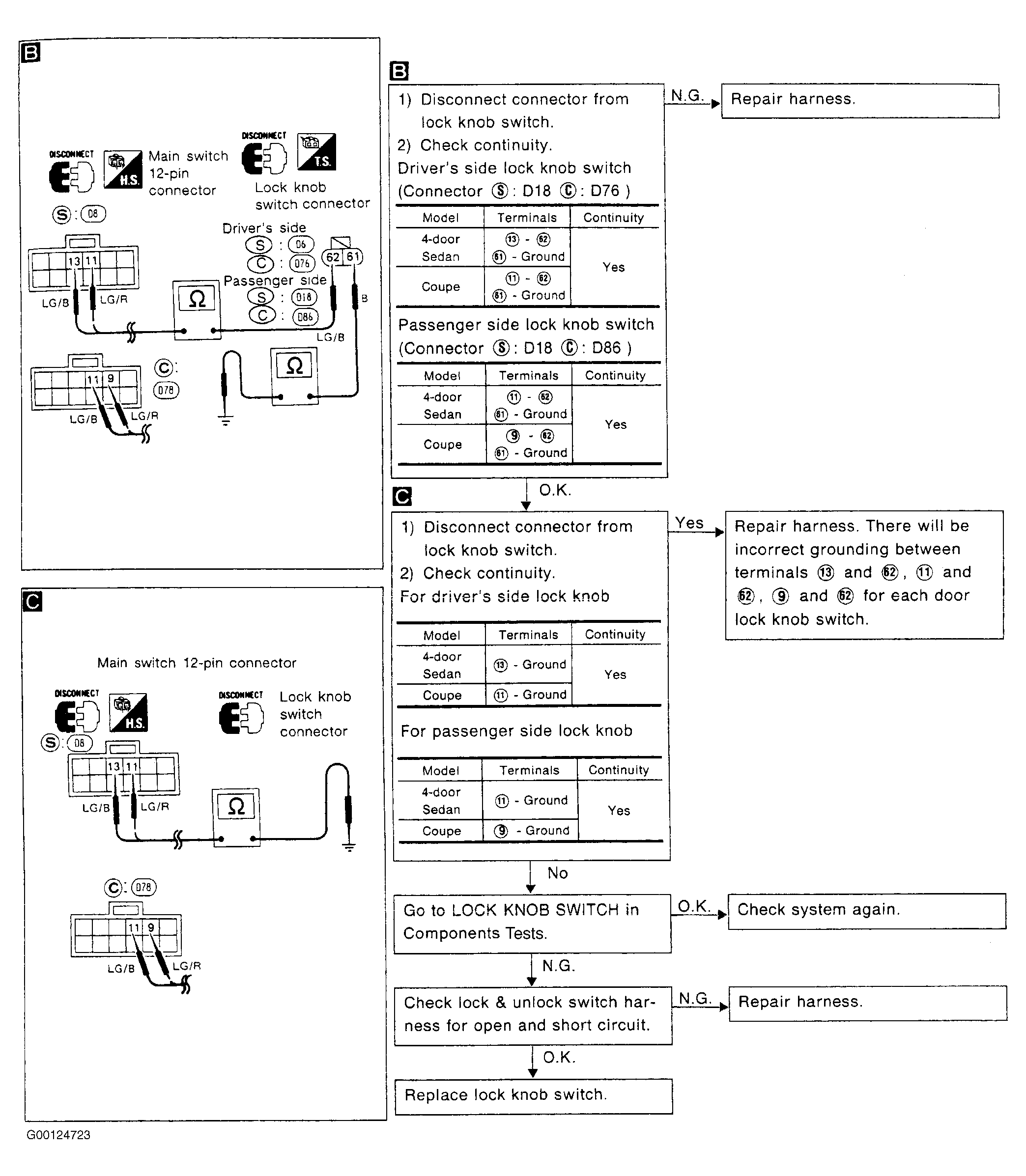

Fig 2: Diagnostic Procedure No. 3 (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
