Engine Performance
›
System
›
Engine Controls - System/Component Tests
›
Diagnostic Charts
›
EGR Function Chart
EGR Function Chart

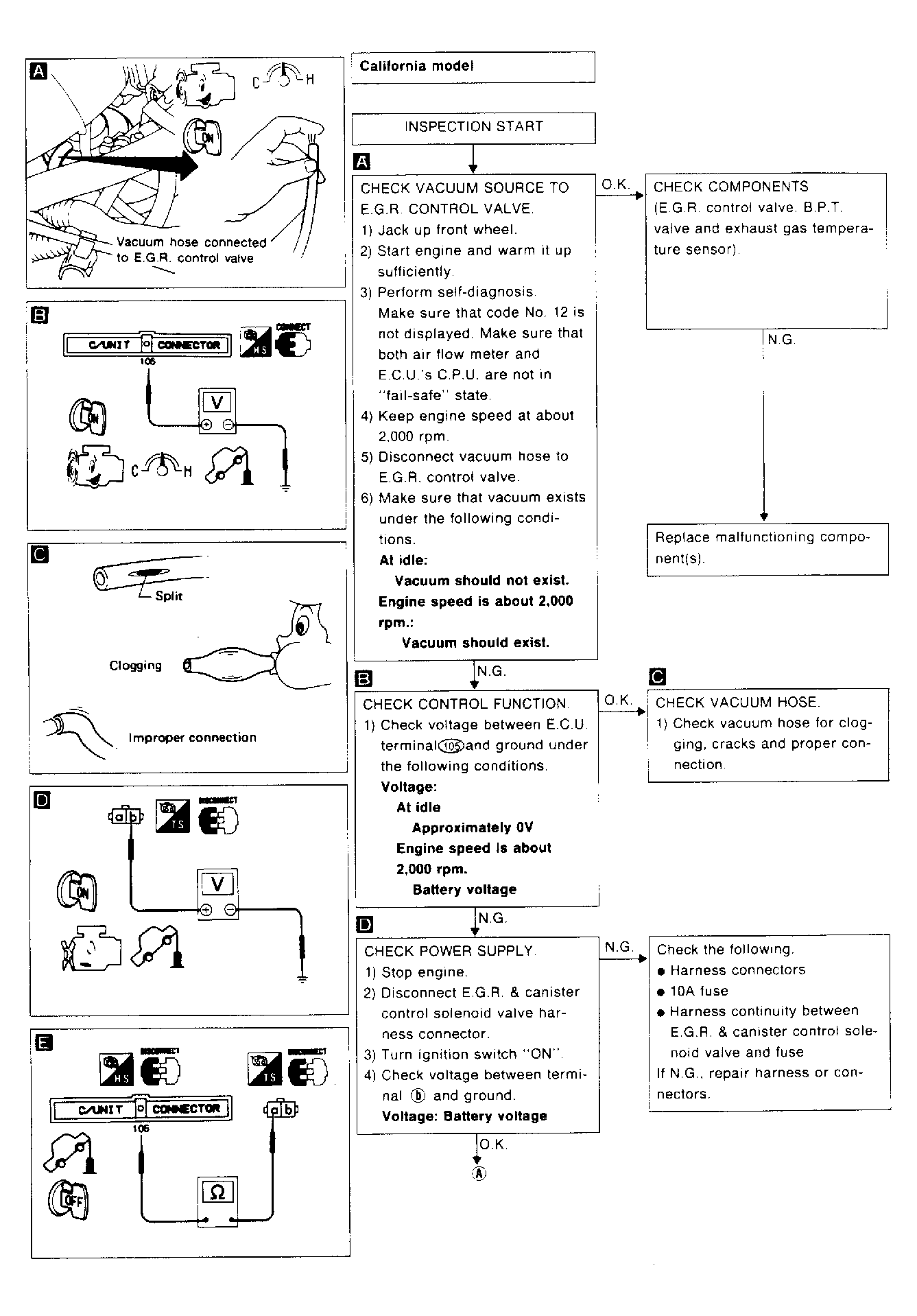

Fig 1: EGR Function Diagnostic Chart (1 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

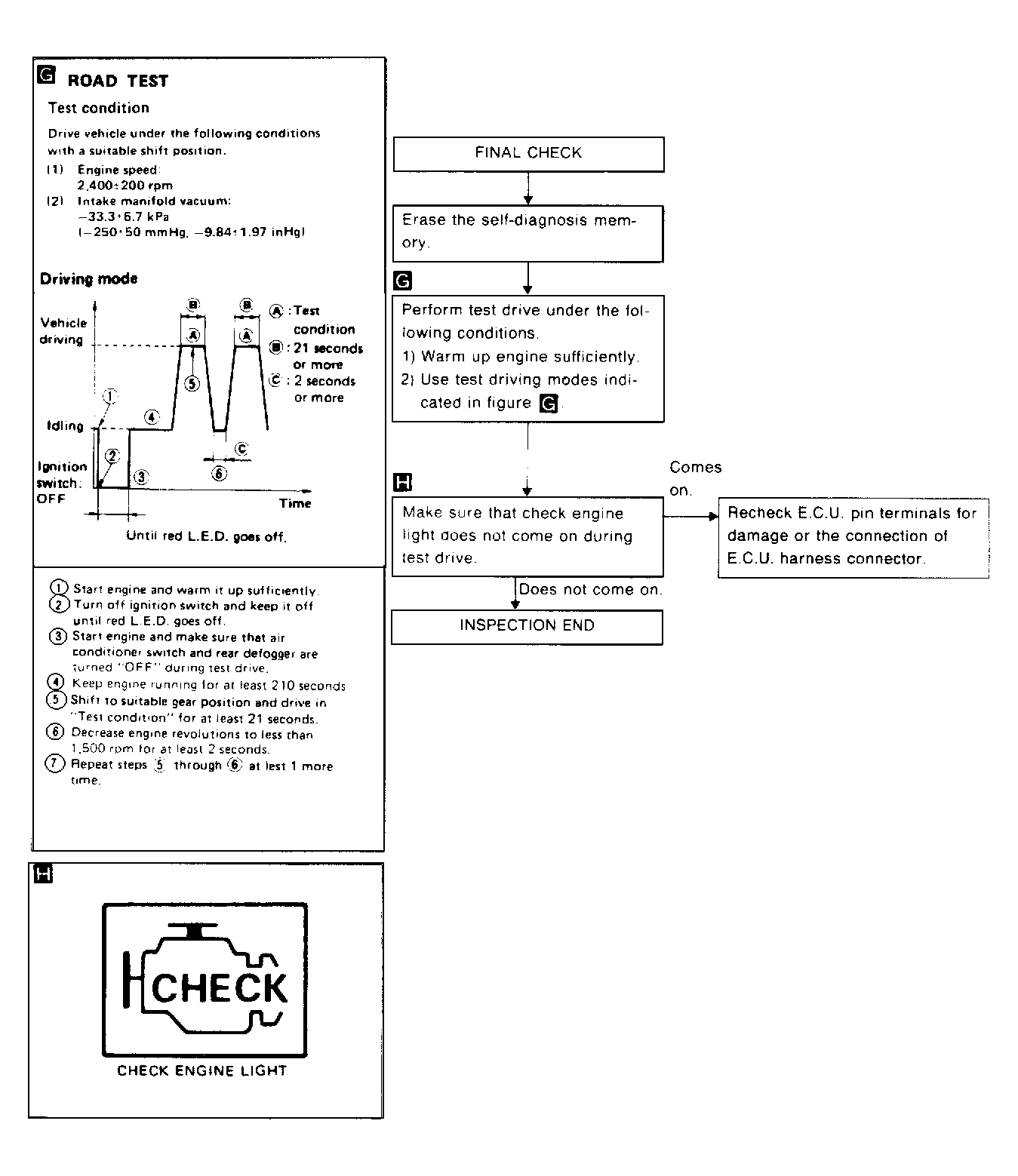

Fig 2: EGR Function Diagnostic Chart (2 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

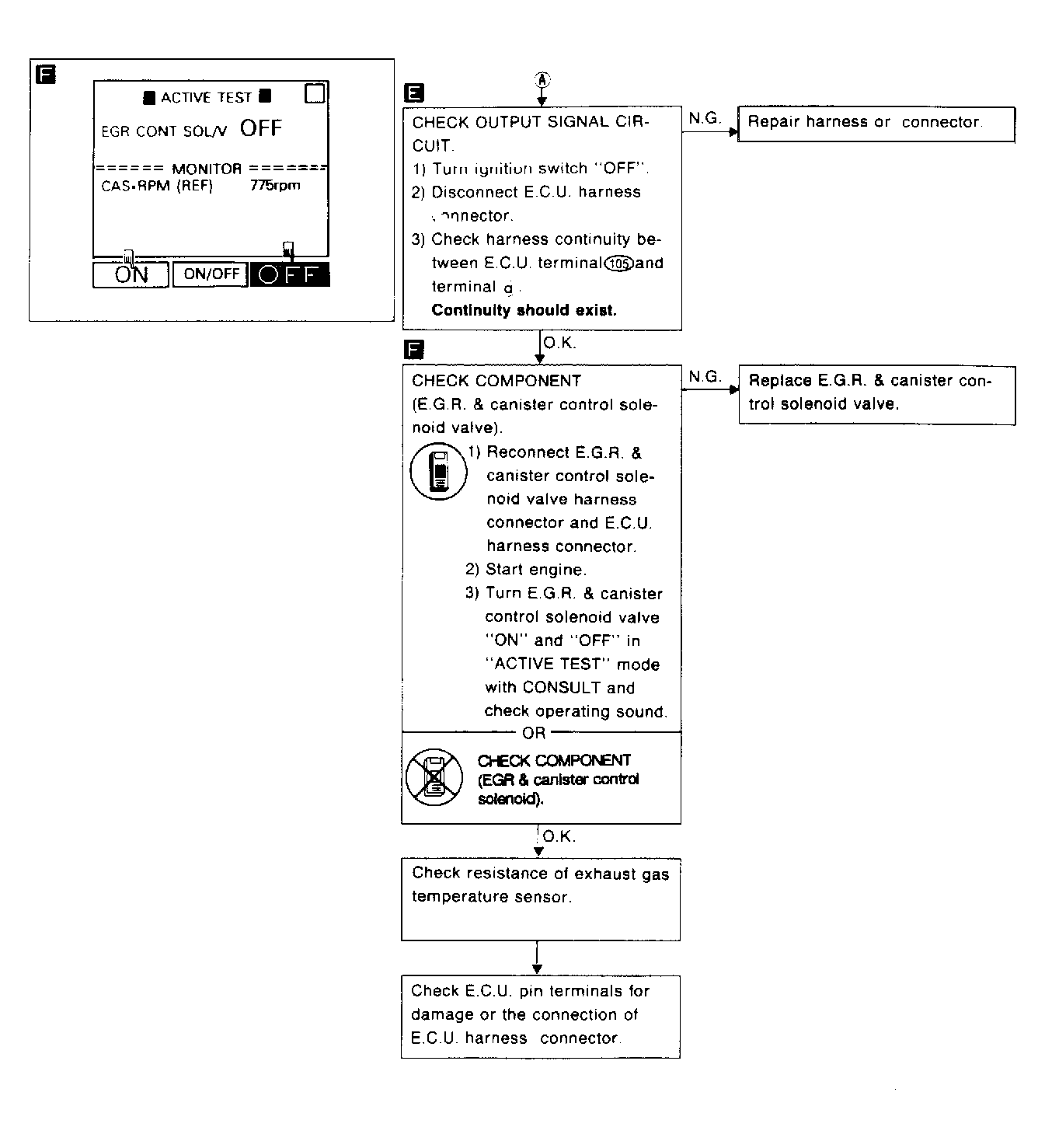

Fig 3: EGR Function Diagnostic Chart (3 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
