Sentra SE-R
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - System/Component Tests
›
Diagnostic Charts
›
Ecu Power Source & Ground Chart
Ecu Power Source & Ground Chart

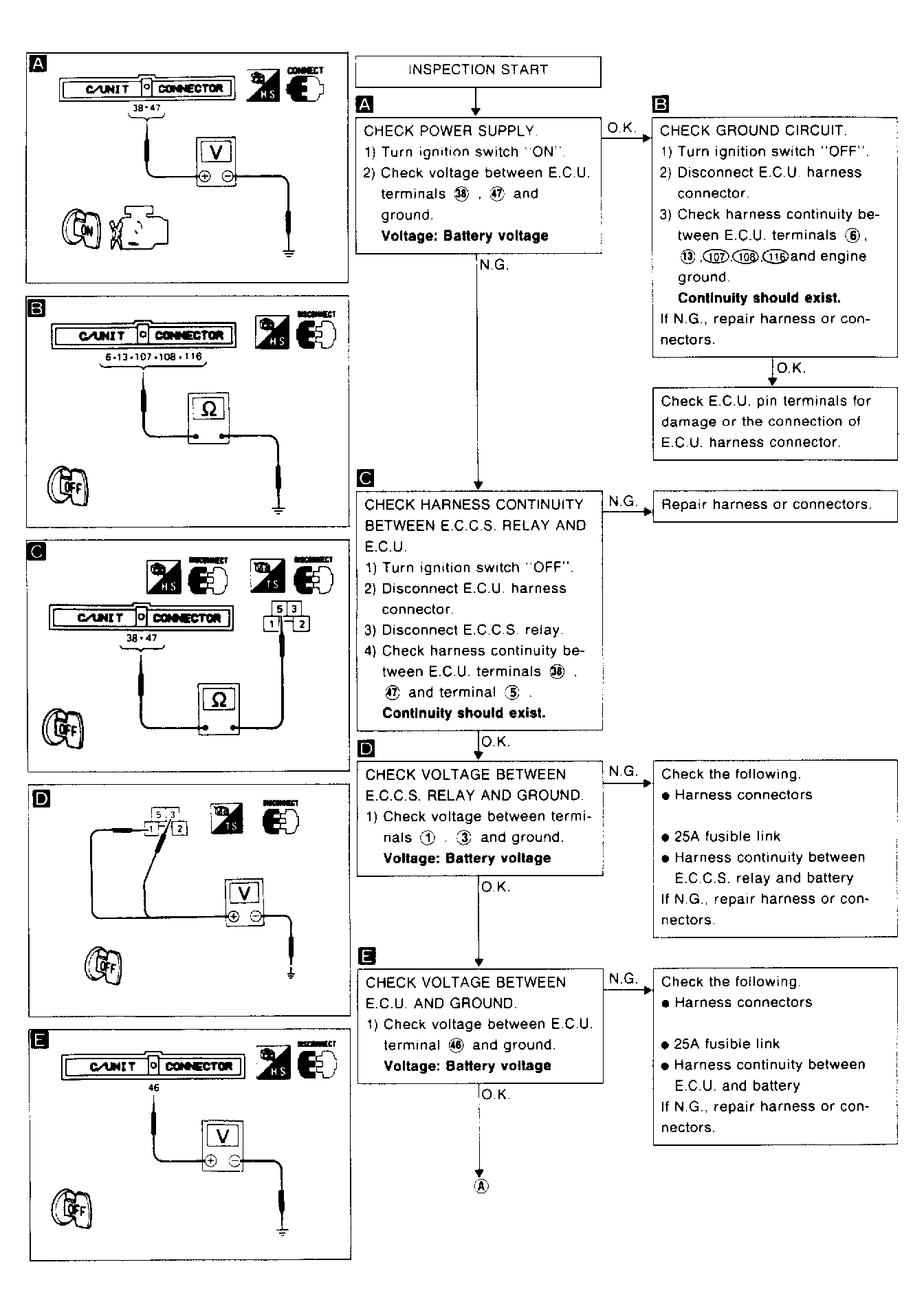

Fig 1: ECU Power Source & Ground Diagnostic Chart (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

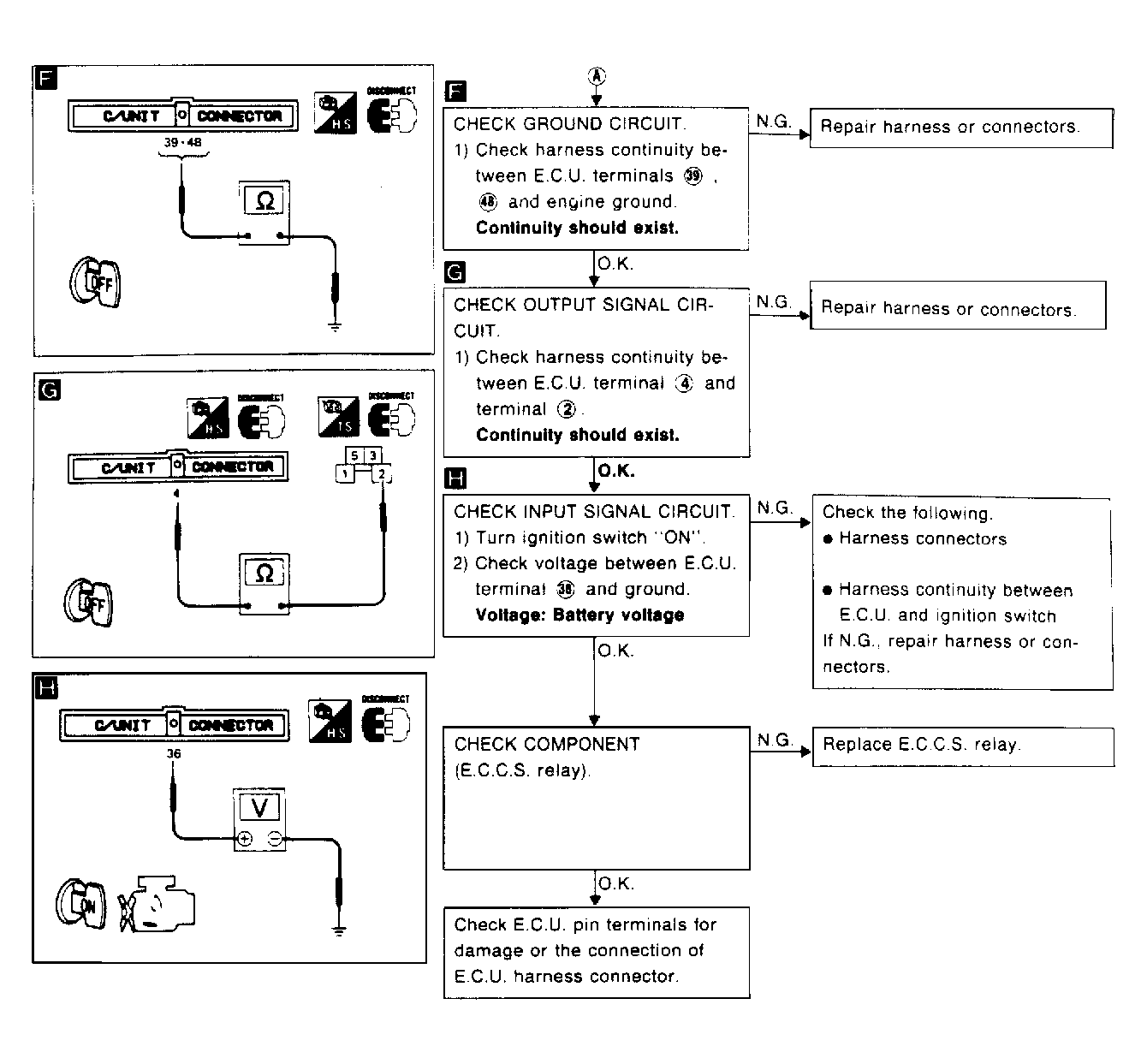

Fig 2: ECU Power Source & Ground Diagnostic Chart (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
