Power Steering Oil Pressure Switch Chart
Power Steering Oil Pressure Switch Chart

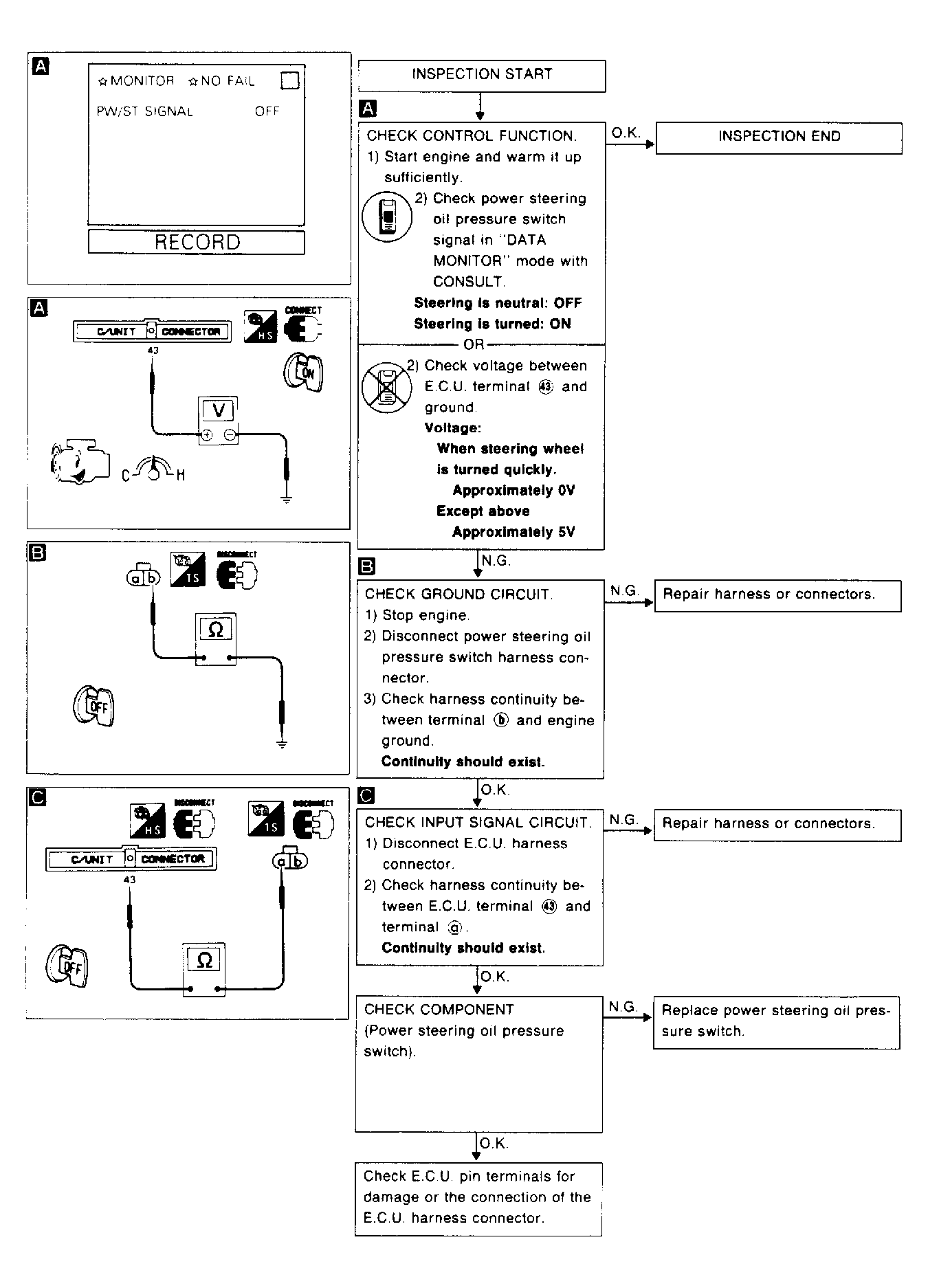

Fig 1: Power Steering Oil Pressure Switch Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
