Power Transistor

Disconnect power transistor harness connector. Check continuity between terminals with a digital tester. See Fig 1 and Fig 2 . If results are not as specified, replace power transistor.

Fig 1: Power Transistor Terminal Identifcation

Courtesy of NISSAN MOTOR CO., U.S.A.

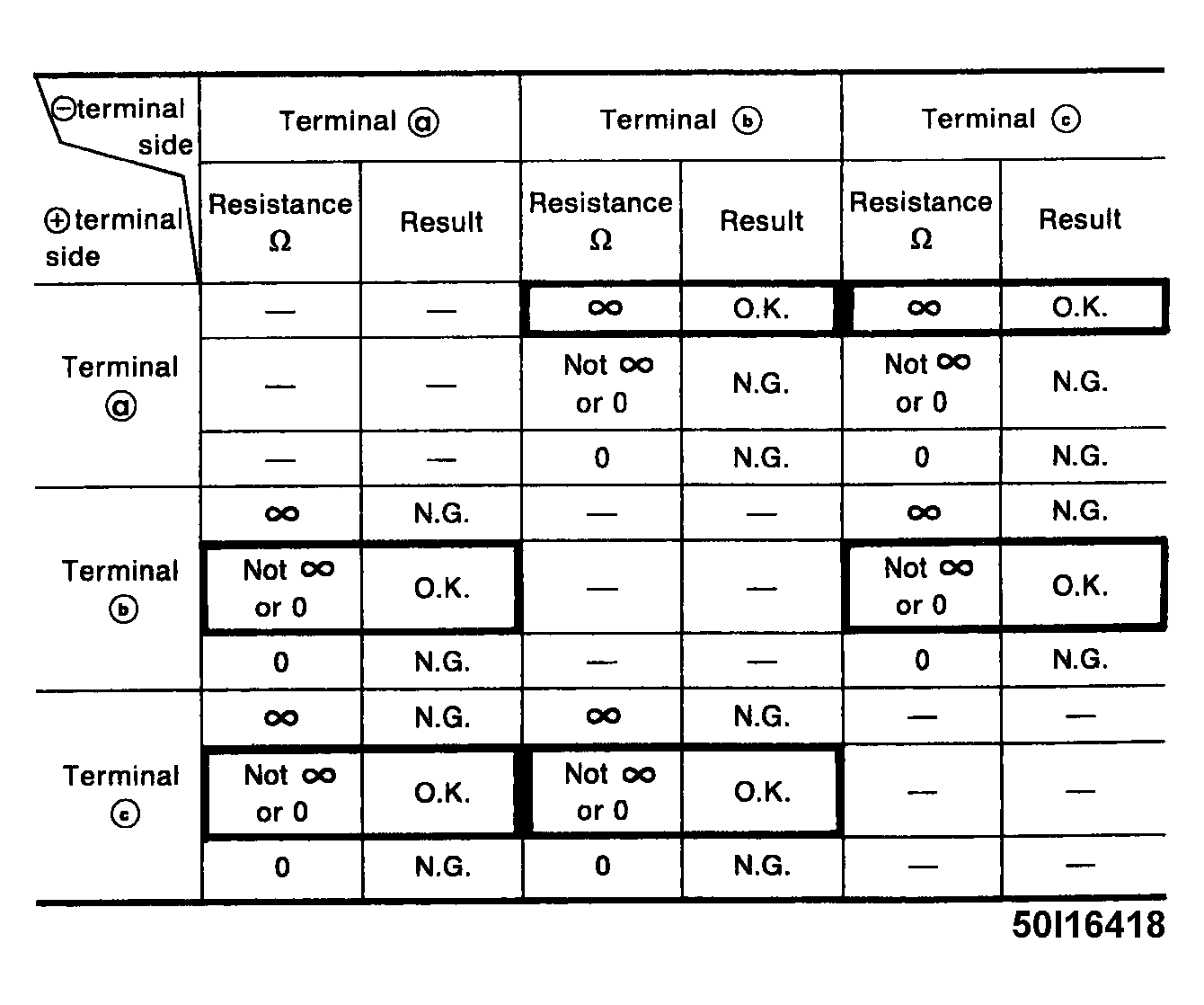

Fig 2: Power Transistor Continuity Check

Courtesy of NISSAN MOTOR CO., U.S.A.
