Code 13: Coolant Temperature Sensor

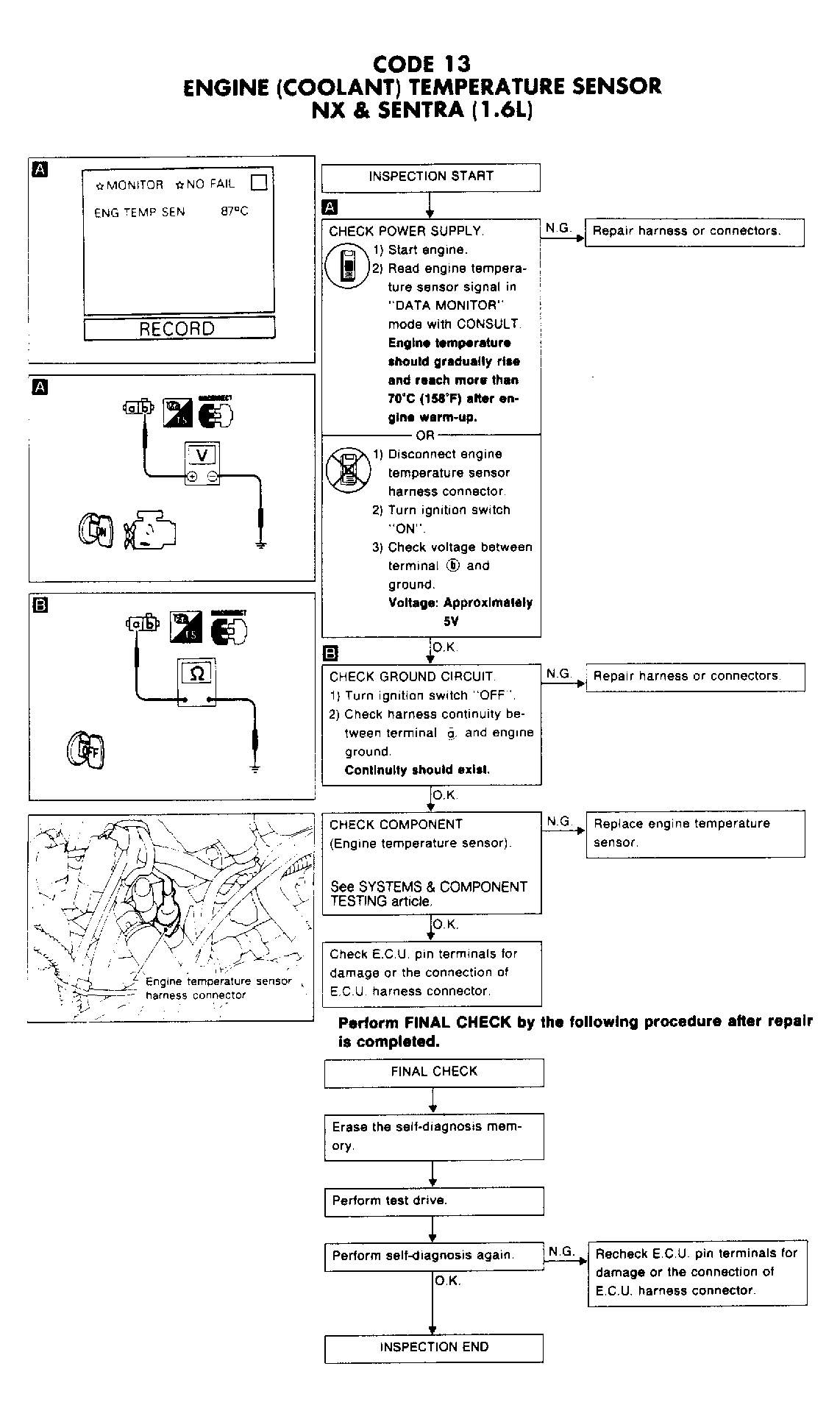

Fig 1: Code 13: Coolant Temperature Sensor Test (1.6L)

Courtesy of NISSAN MOTOR CO., U.S.A.

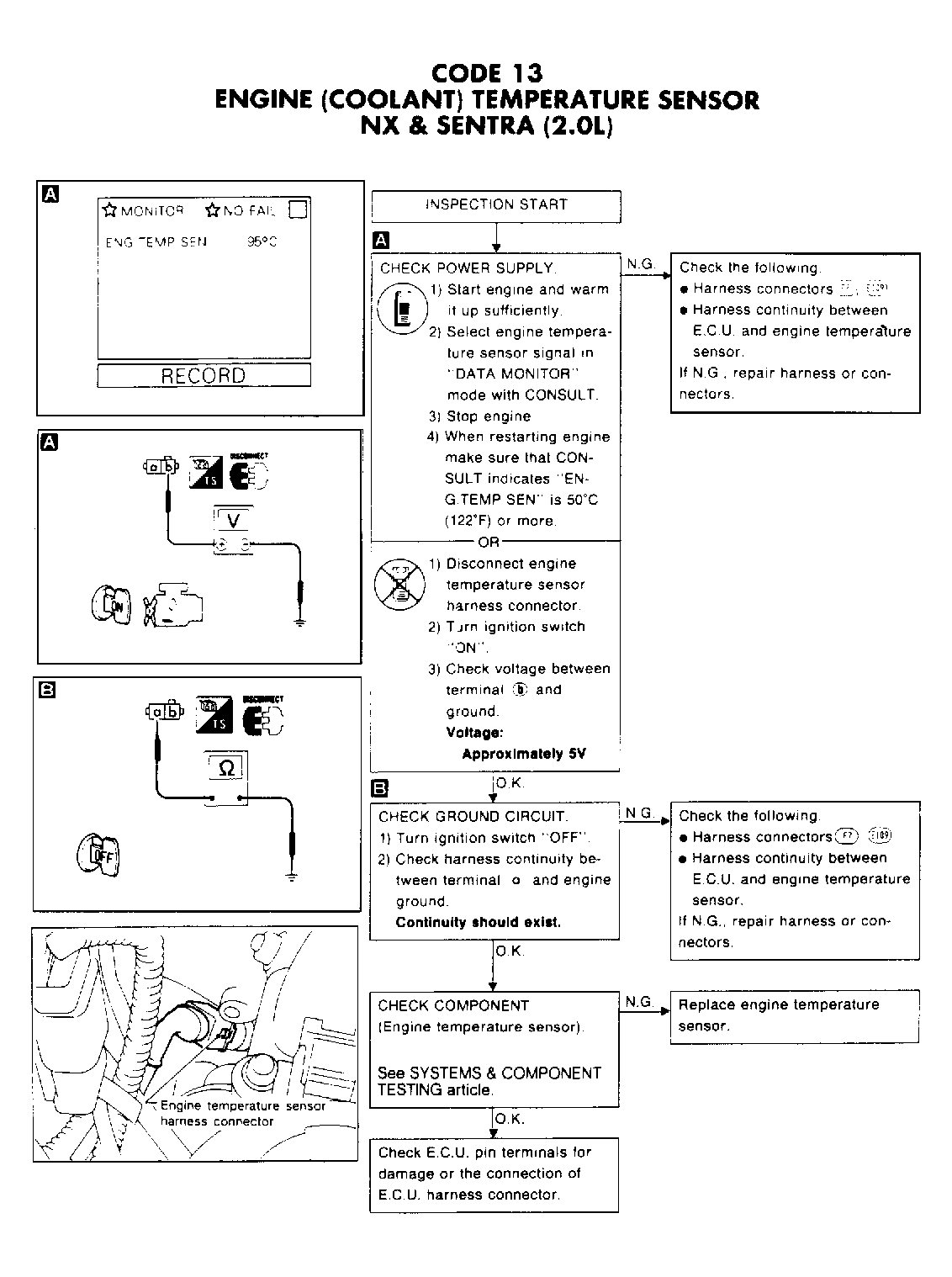

Fig 2: Code 13: Coolant Temperature Sensor Test (2.0L)

Courtesy of NISSAN MOTOR CO., U.S.A.
