Code 33: Oxygen Sensor

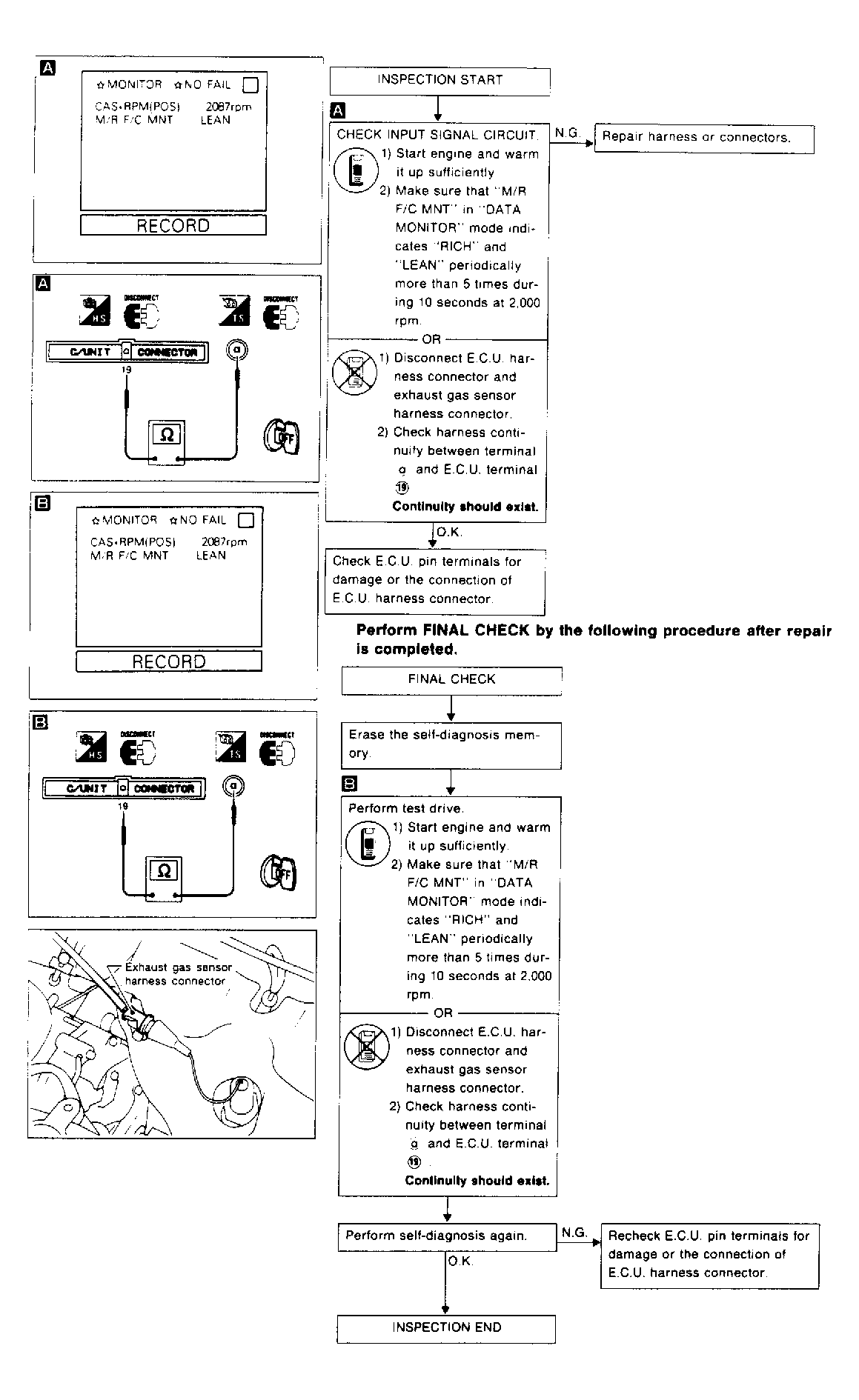

Fig 1: Code 33: Oxygen Sensor Test (1.6L)

G91I16590

Courtesy of NISSAN MOTOR CO., U.S.A.

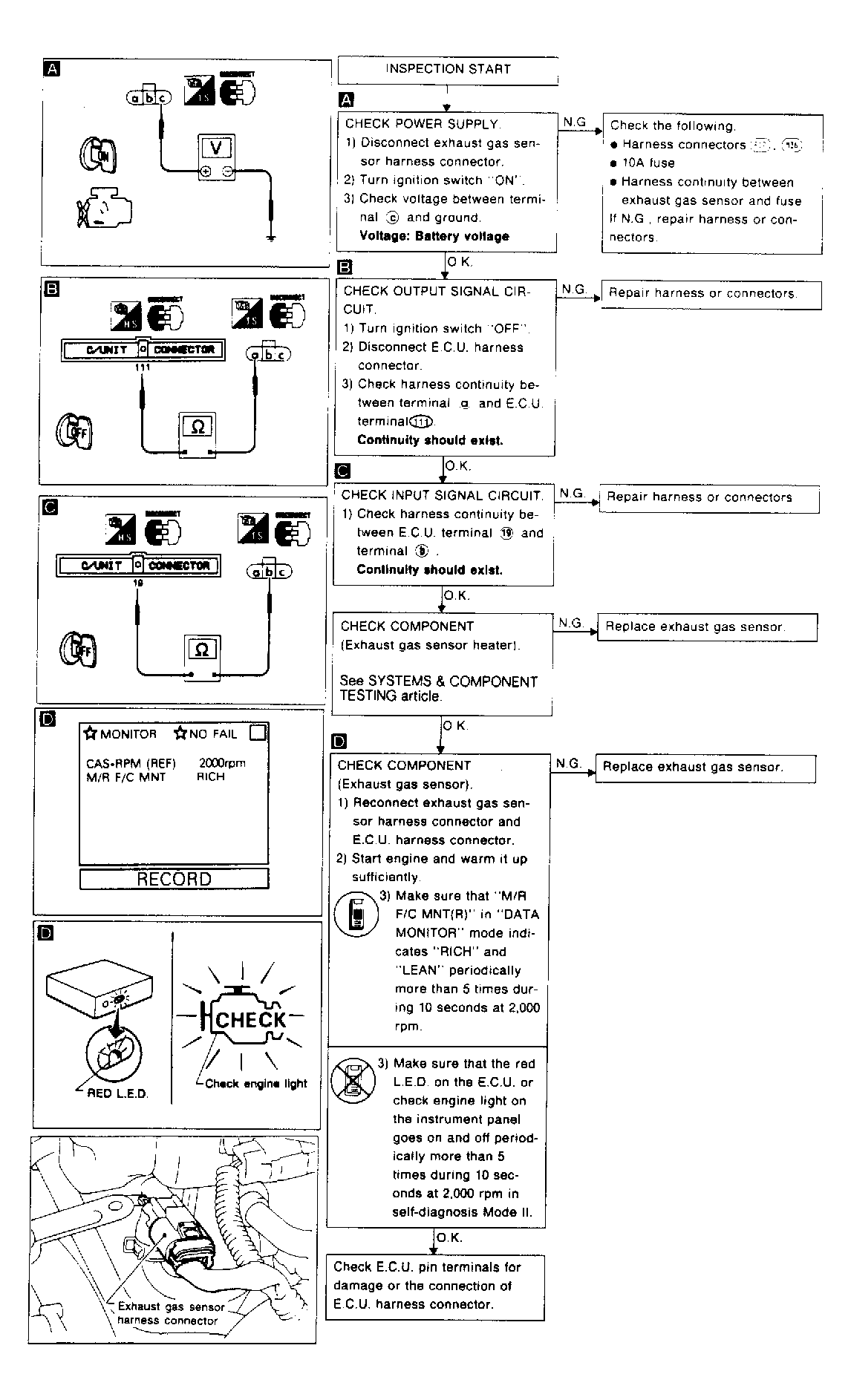

Fig 2: Code 33: Oxygen Sensor Test (2.0L) (1 Of 2)

G91J16591

Courtesy of NISSAN MOTOR CO., U.S.A.

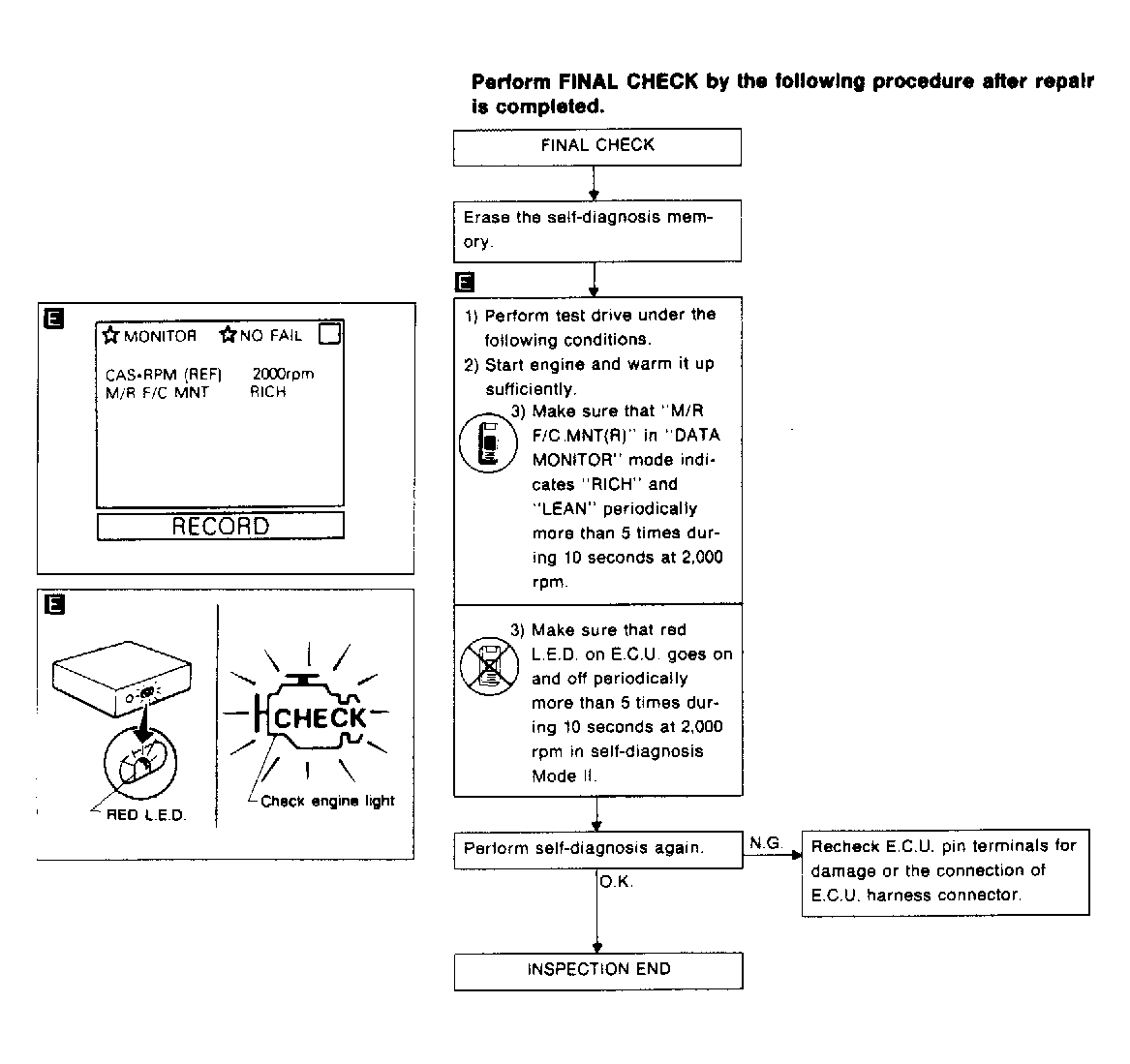

Fig 3: Code 33: Oxygen Sensor Test (2.0L) (2 Of 2)

G91A16592

Courtesy of NISSAN MOTOR CO., U.S.A.
