Final Steps For All Code Charts

Unless otherwise instructed in code chart, perform following steps after repair:

• Reinstall any part removed.
• Erase self-diagnostic memory. See CLEARING CODES under SELF-DIAGNOSTIC SYSTEM.
• Ensure Code 55 (no malfunction) is displayed in self-diagnostic mode.
• Test drive vehicle.
• Perform self-diagnosis.

If code resets, check for damage to ECU pin terminals and connector harness.

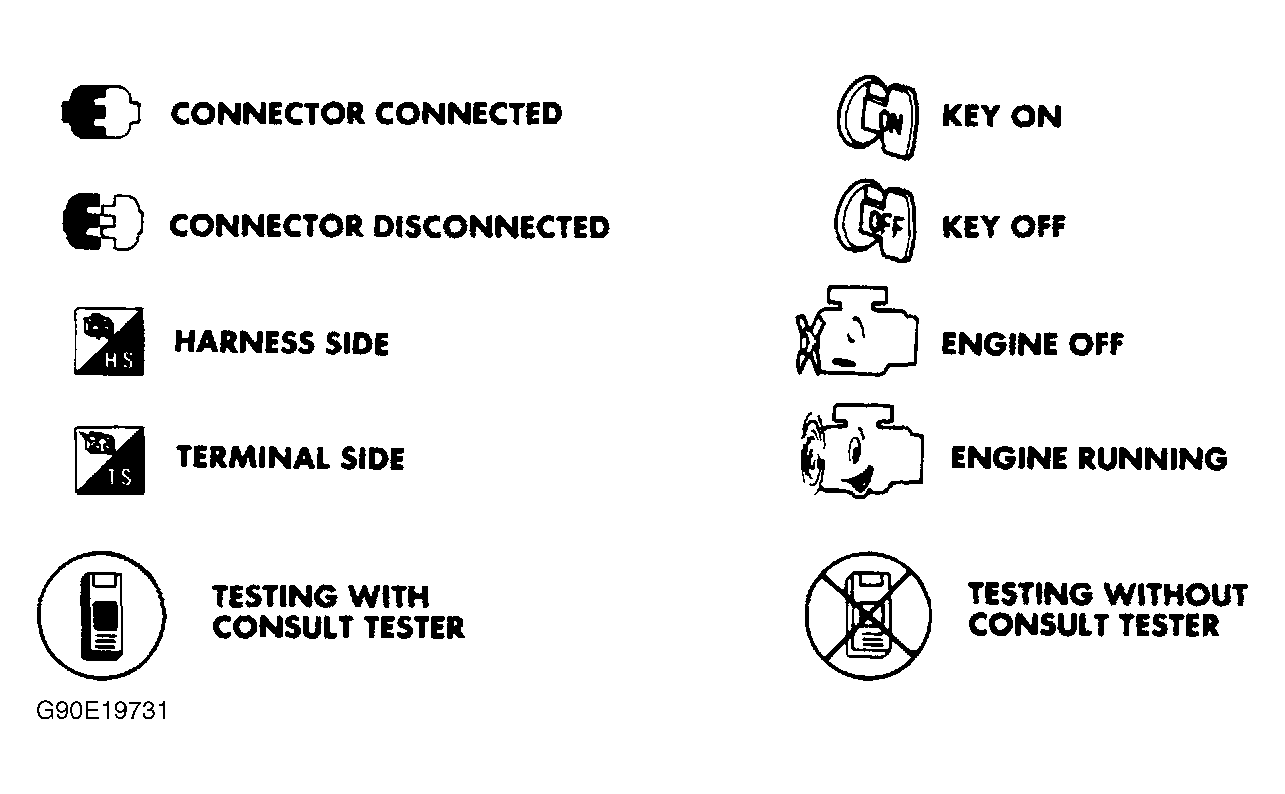

Fig 1: Identifying Trouble Code Charts Symbols

Courtesy of NISSAN MOTOR CO., U.S.A.
