Throttle Valve Switch Maxima Se
Throttle Valve Switch Maxima Se

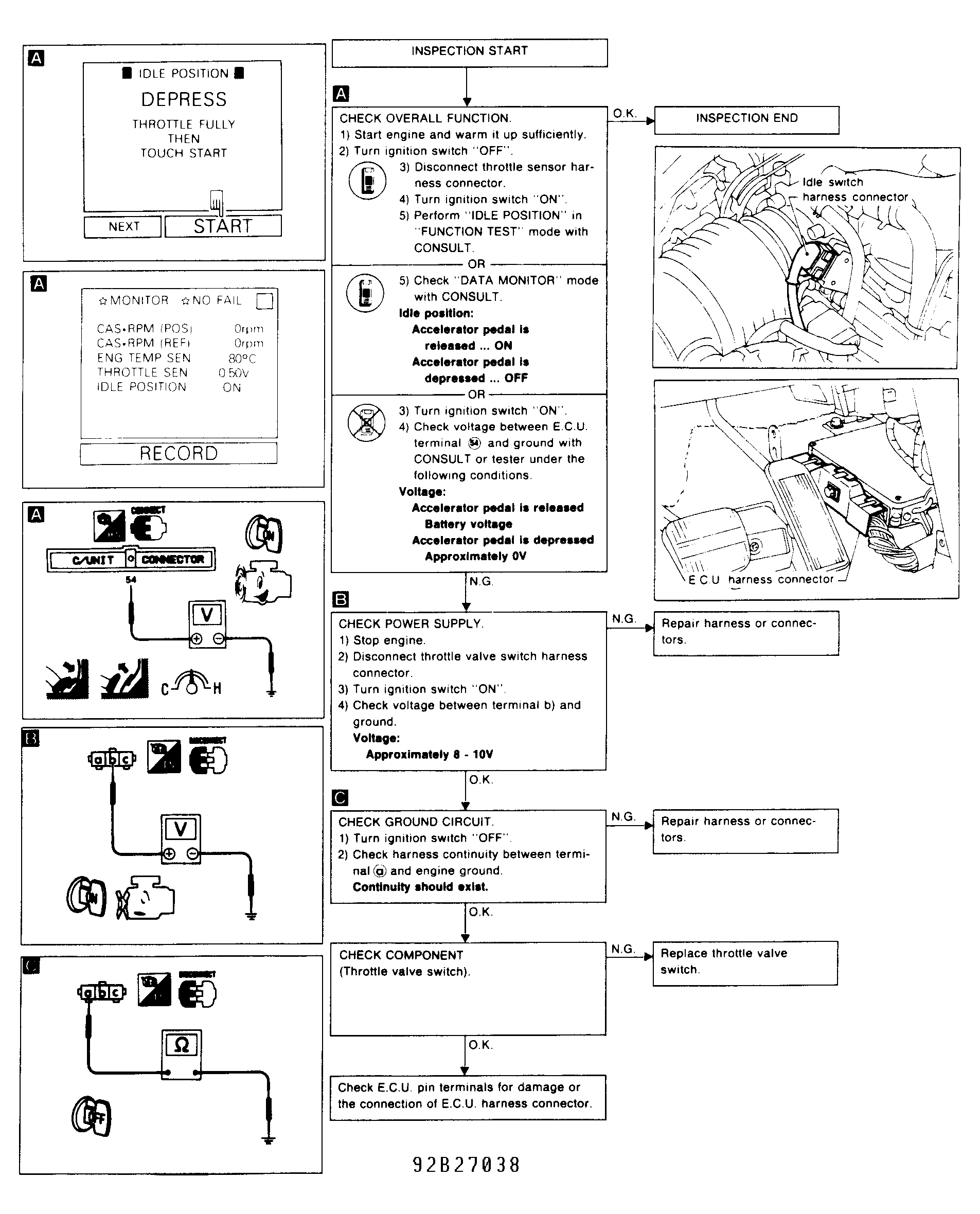

Fig 1: Throttle Valve Switch Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
