Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|

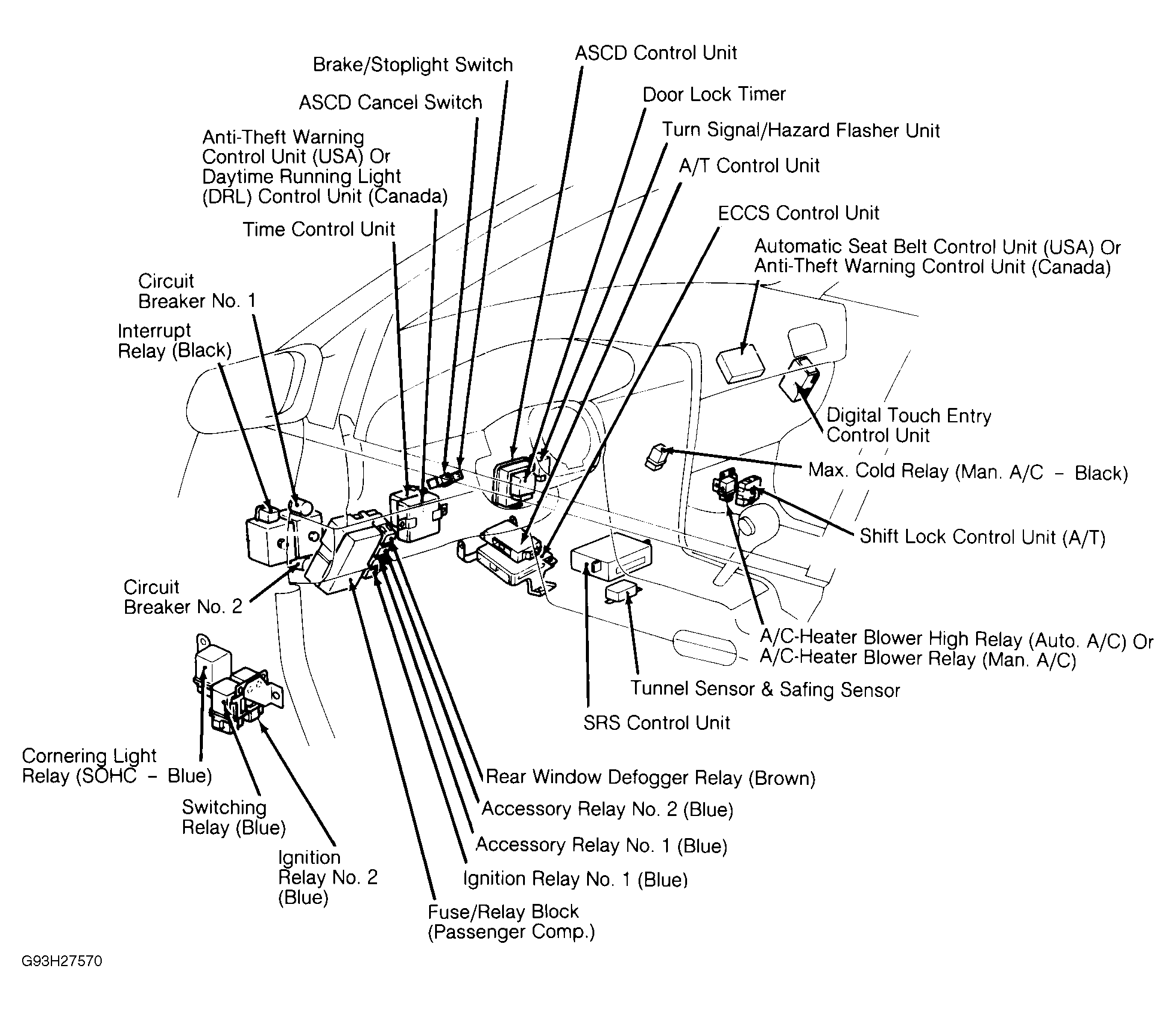

| Circuit Breakers (2) | Under left side of dash, behind fuse/relay block. See Figure . | |
| Fuse/Relay Block | ||
| Engine Compartment | On inner left front fender panel, near battery. See Figure . | |
| Passenger Compartment | Under left side of dash. See Figure . | |
| Fusible Links | On inner left front fender panel, in fuse/relay block. See Figure . | |
| Relay Block | On left front corner of engine compartment, in front of battery. See Figure & Figure . | |
