Injector Malfunction Chart
Injector Malfunction Chart

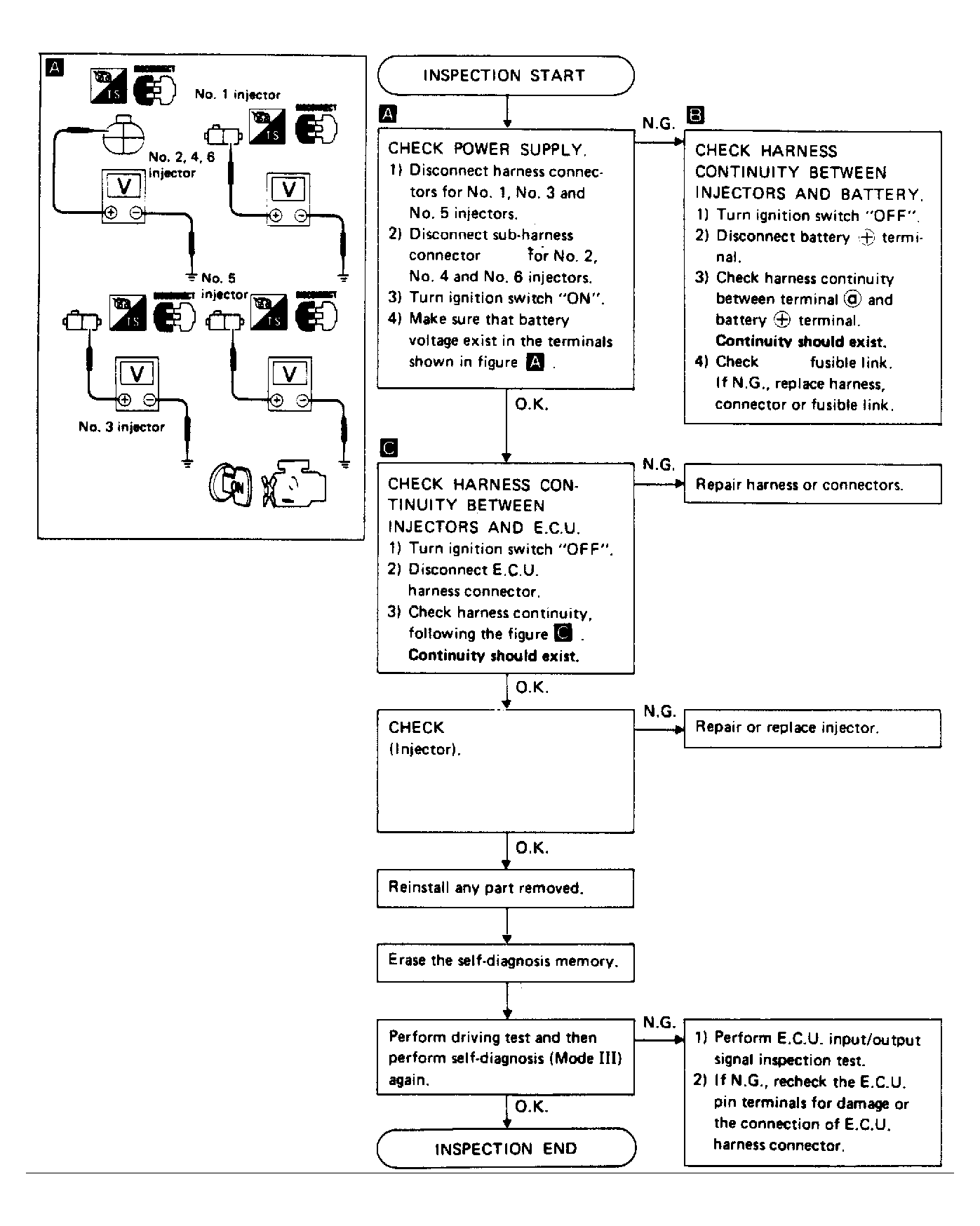

Fig 1: Injector Malfunction Flow Chart (1 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

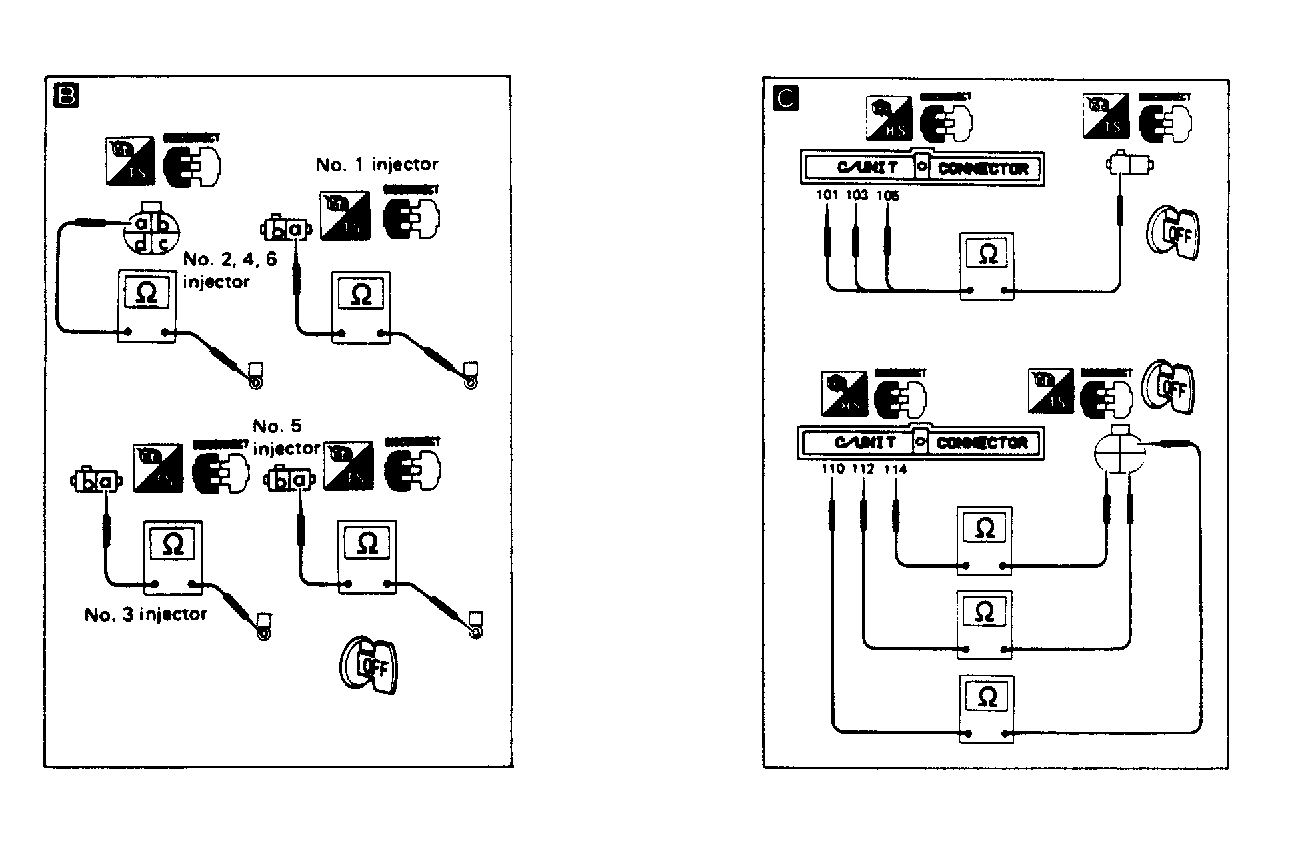

Fig 2: Injector Malfunction Flow Chart (2 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

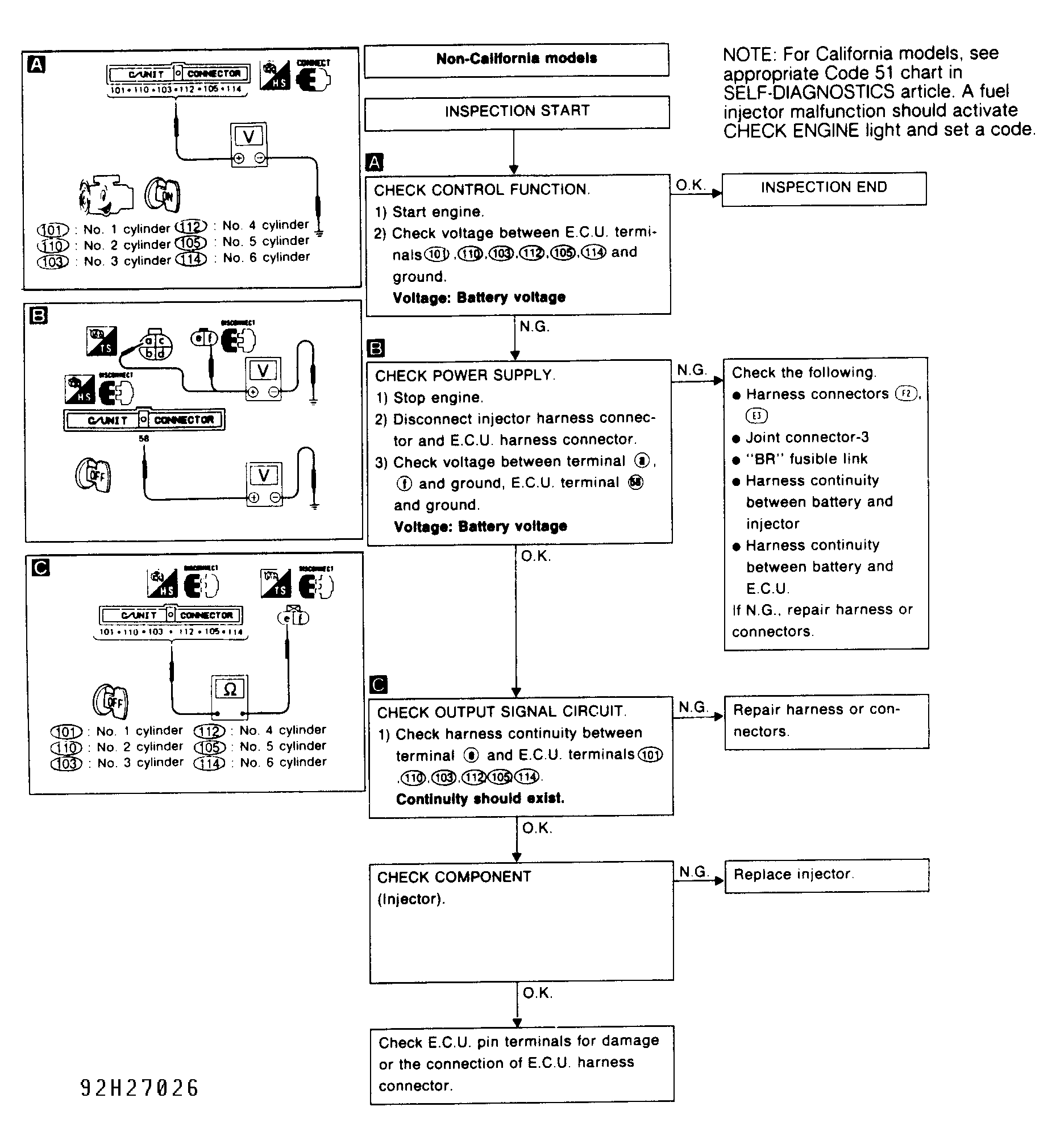

Fig 3: Injector Malfunction Flow Chart Maxima SE (3 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
