Fuel Pump Chart
Fuel Pump Chart

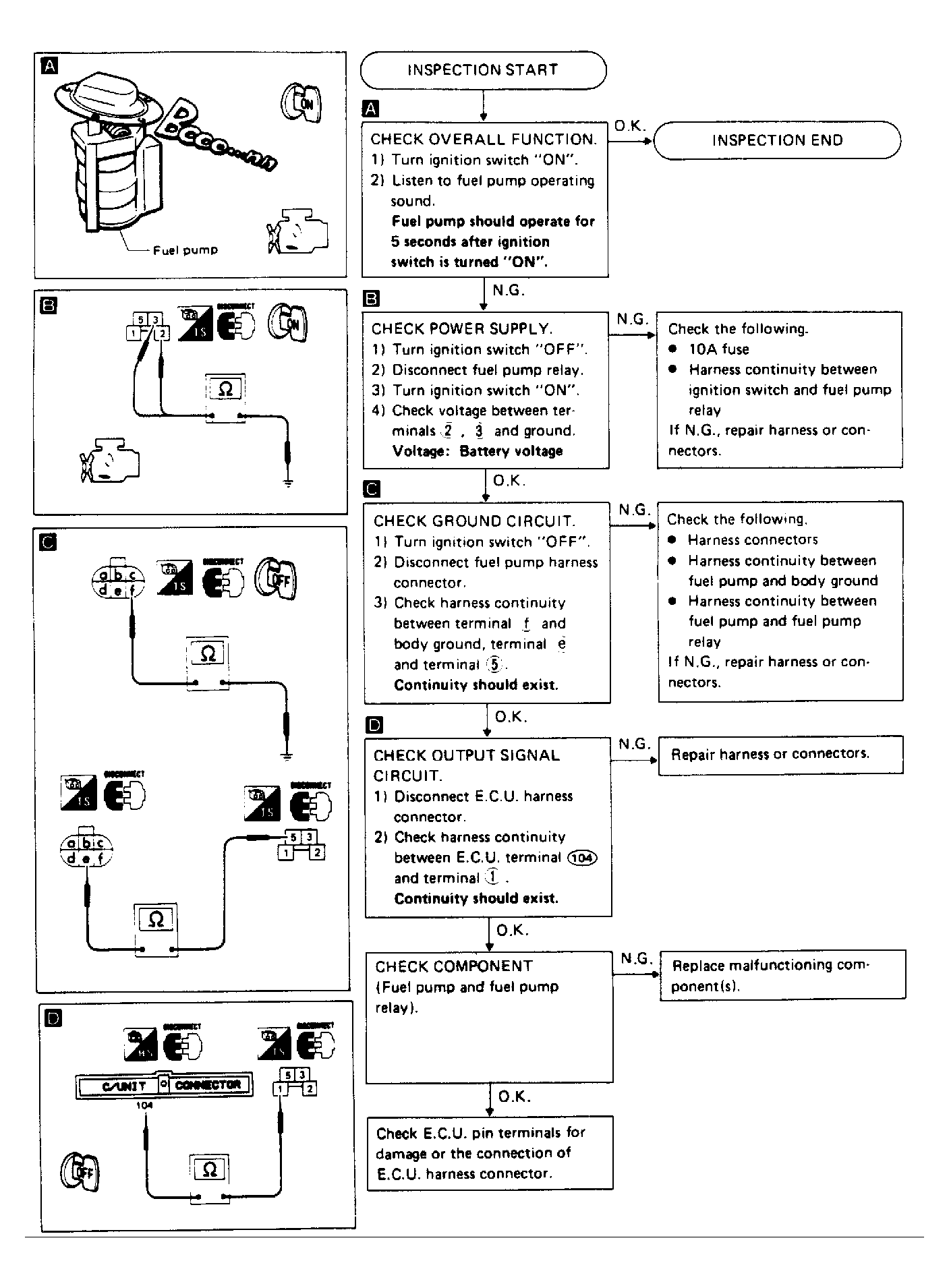

Fig 1: Fuel Pump Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
