Code 32 - EGR Sensor (CALIF.)(4-Cylinder)

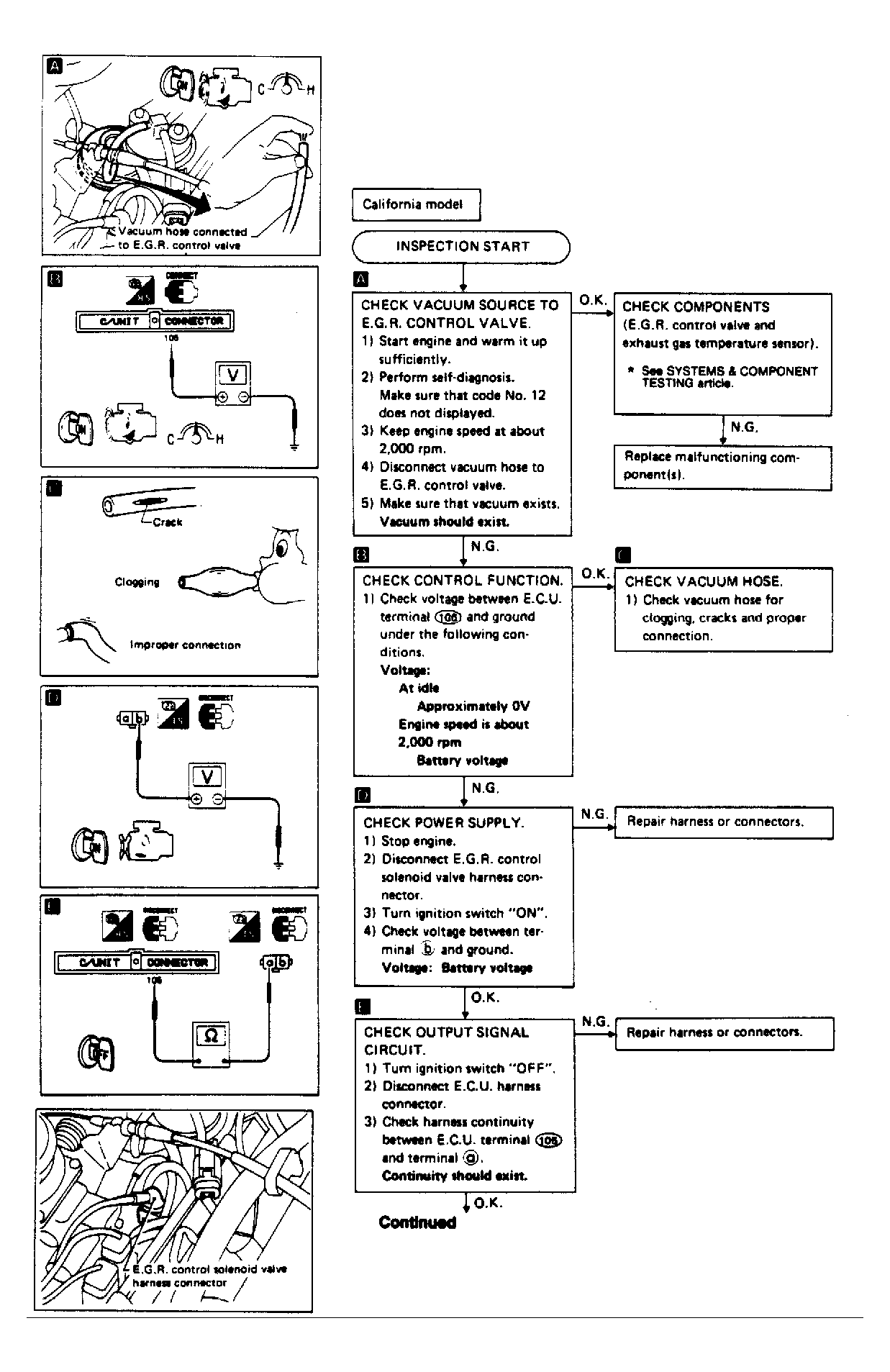

Fig 1: Code 32 - EGR Sensor (Calif.)(4-Cylinder)(1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

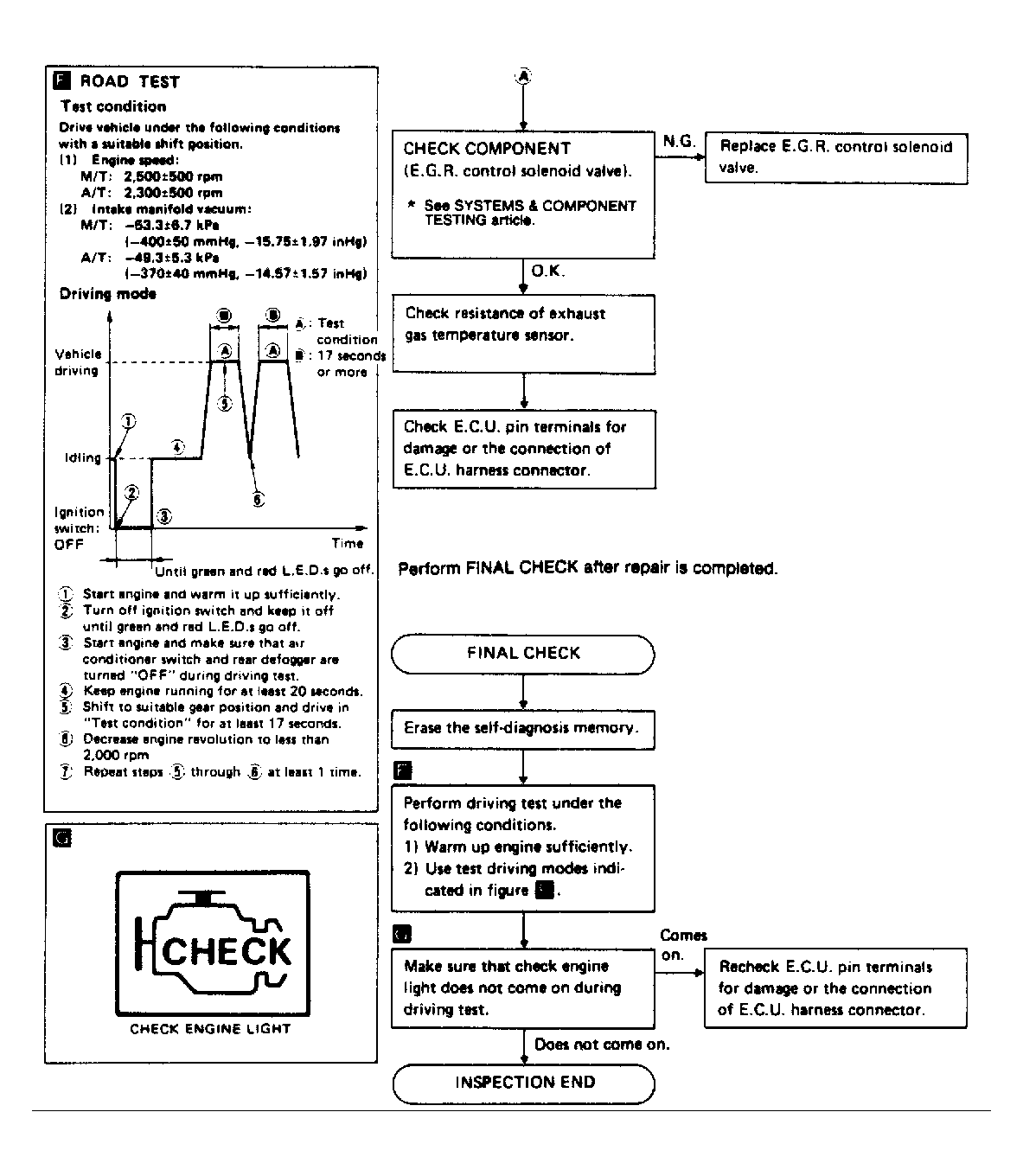

Fig 2: Code 32 - EGR Sensor (Calif.)(4-Cylinder)(2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
