Connector Identification
Connector Identification
Fig 1: Power Window & Door Lock Connector Identification, Circuit Diagram & Component Tests (Coupe)
Courtesy of NISSAN MOTOR CO., U.S.A.

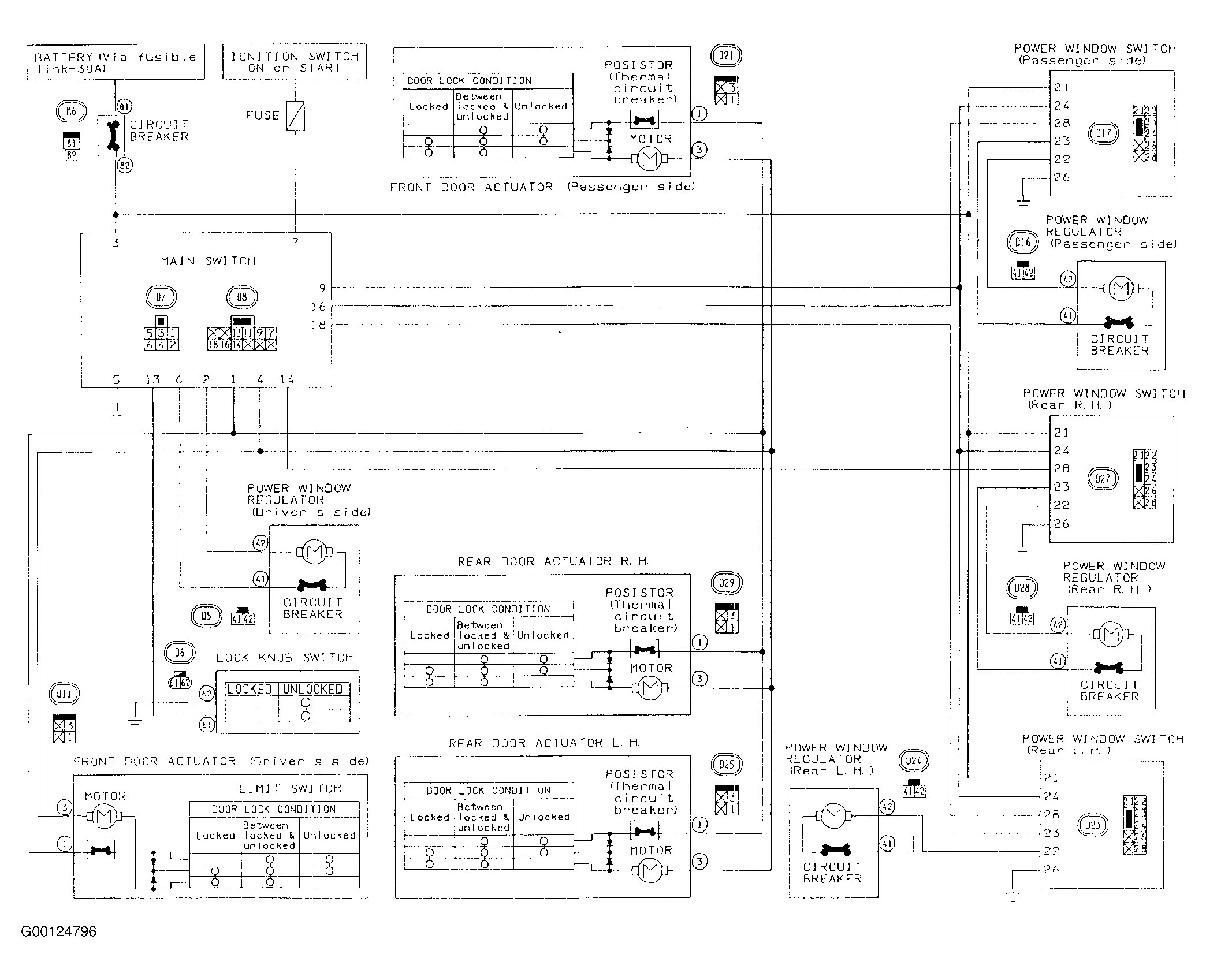

Fig 2: Power Window & Door Lock Connector Identification, Circuit Diagram & Component Tests (4-Door Sedan)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
