Low Fuel Warning Light Sensor

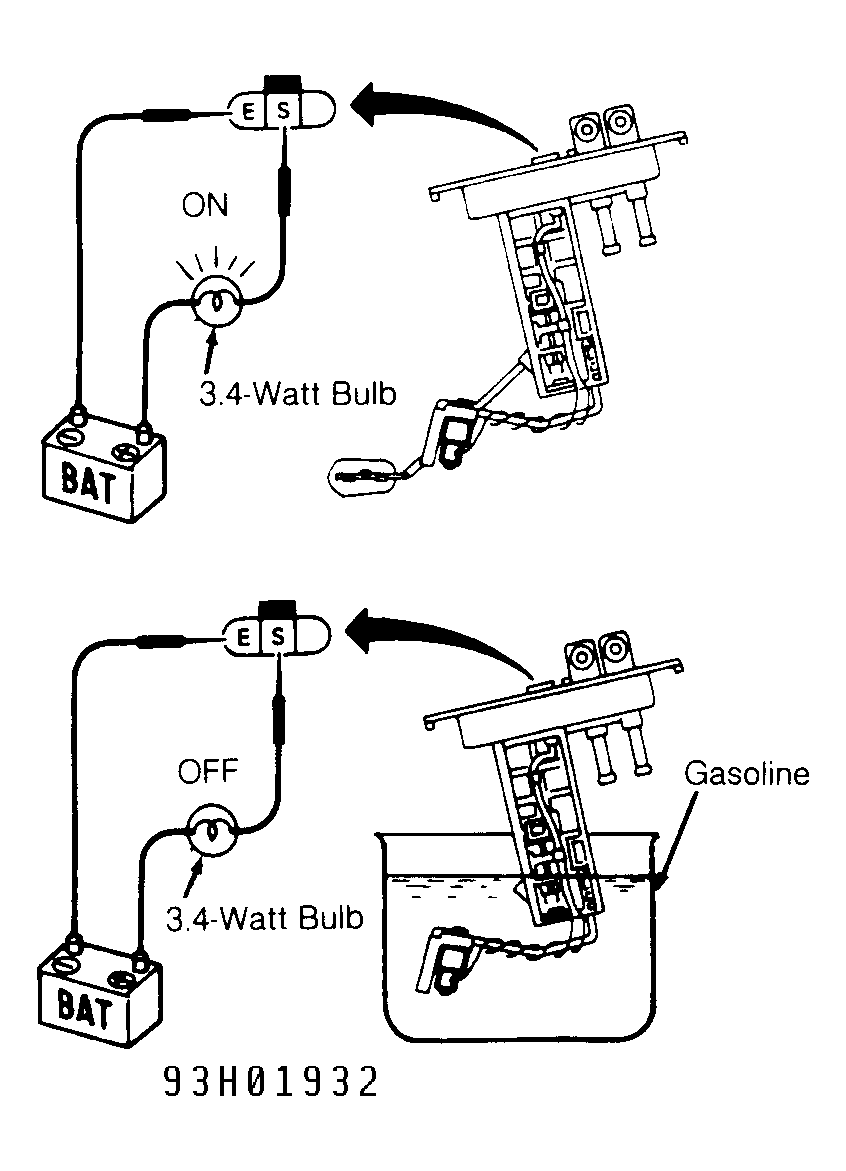

Remove fuel gauge sending unit from fuel tank. Connect 12-volt battery and 3.4-watt light bulb, in series, to specified terminals of fuel gauge sending unit connector. See Fig 1 . Allow time for light bulb to come on. With sending unit float submerged in gasoline, light should not come on.
