Warning Buzzer Test

Remove instrument cluster. Remove warning buzzer from back of instrument cluster. Connect 12-volt battery source across specified terminals of warning buzzer. See Fig 1 . Replace warning buzzer if it does not sound.

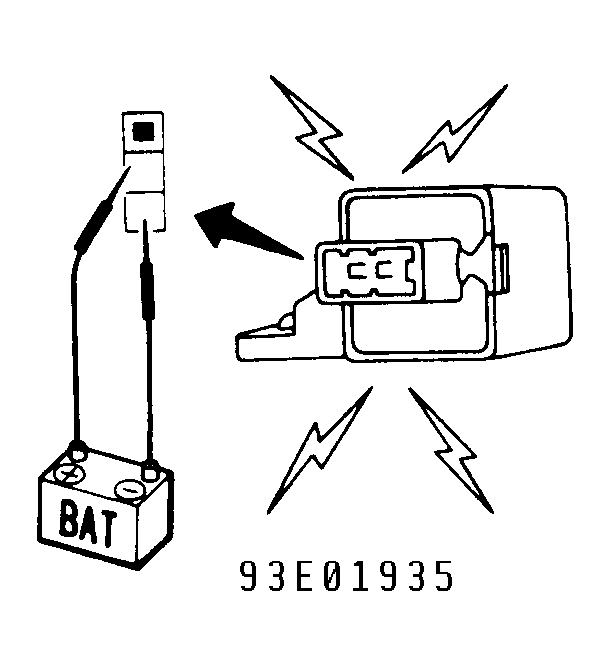

Fig 1: Testing Warning Buzzer

Courtesy of NISSAN MOTOR CO., U.S.A.
