Auxiliary Air Control (AAC) Chart

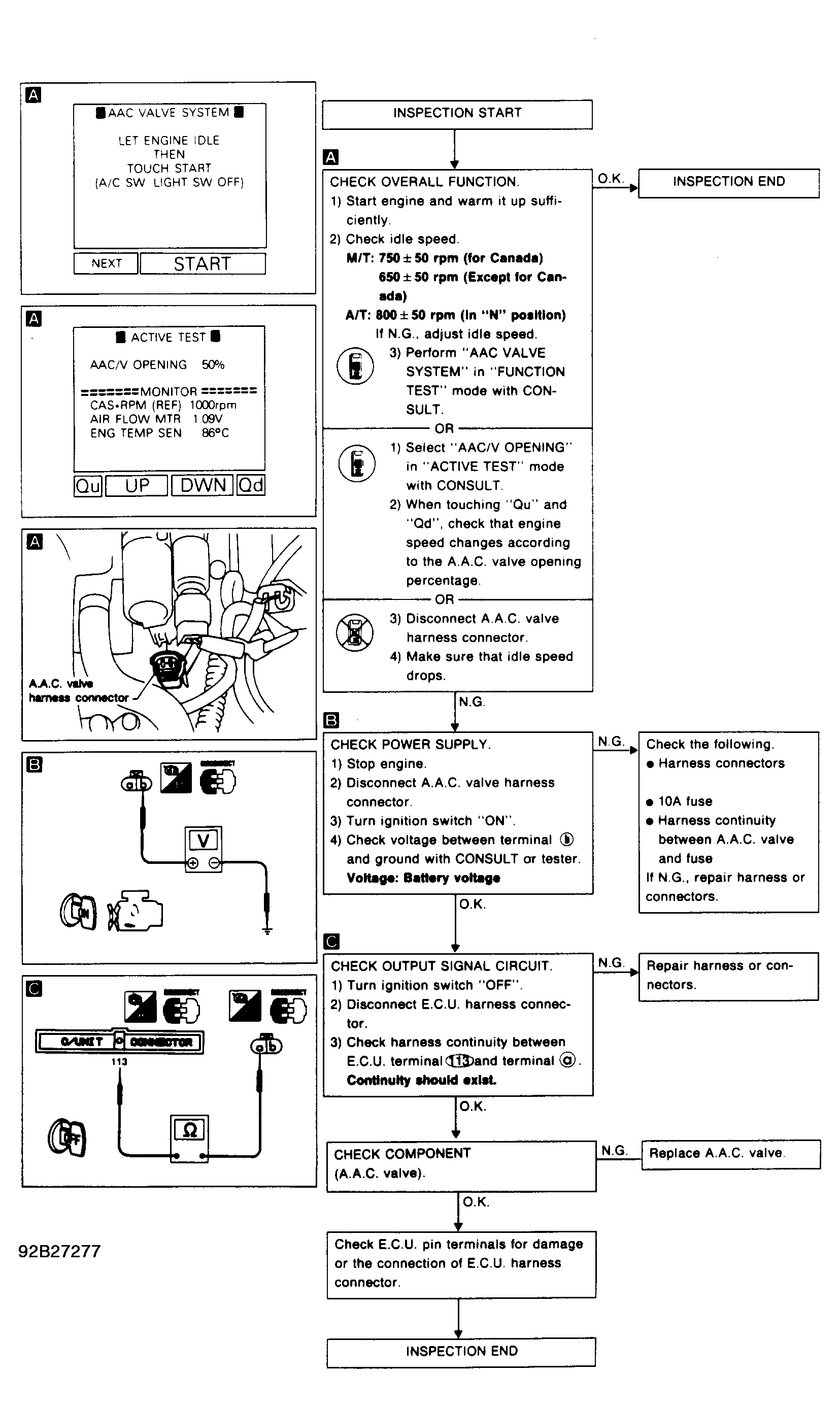

Fig 1: Auxiliary Air Control (AAC) Flow Chart (1.6L)

Courtesy of NISSAN MOTOR CO., U.S.A.

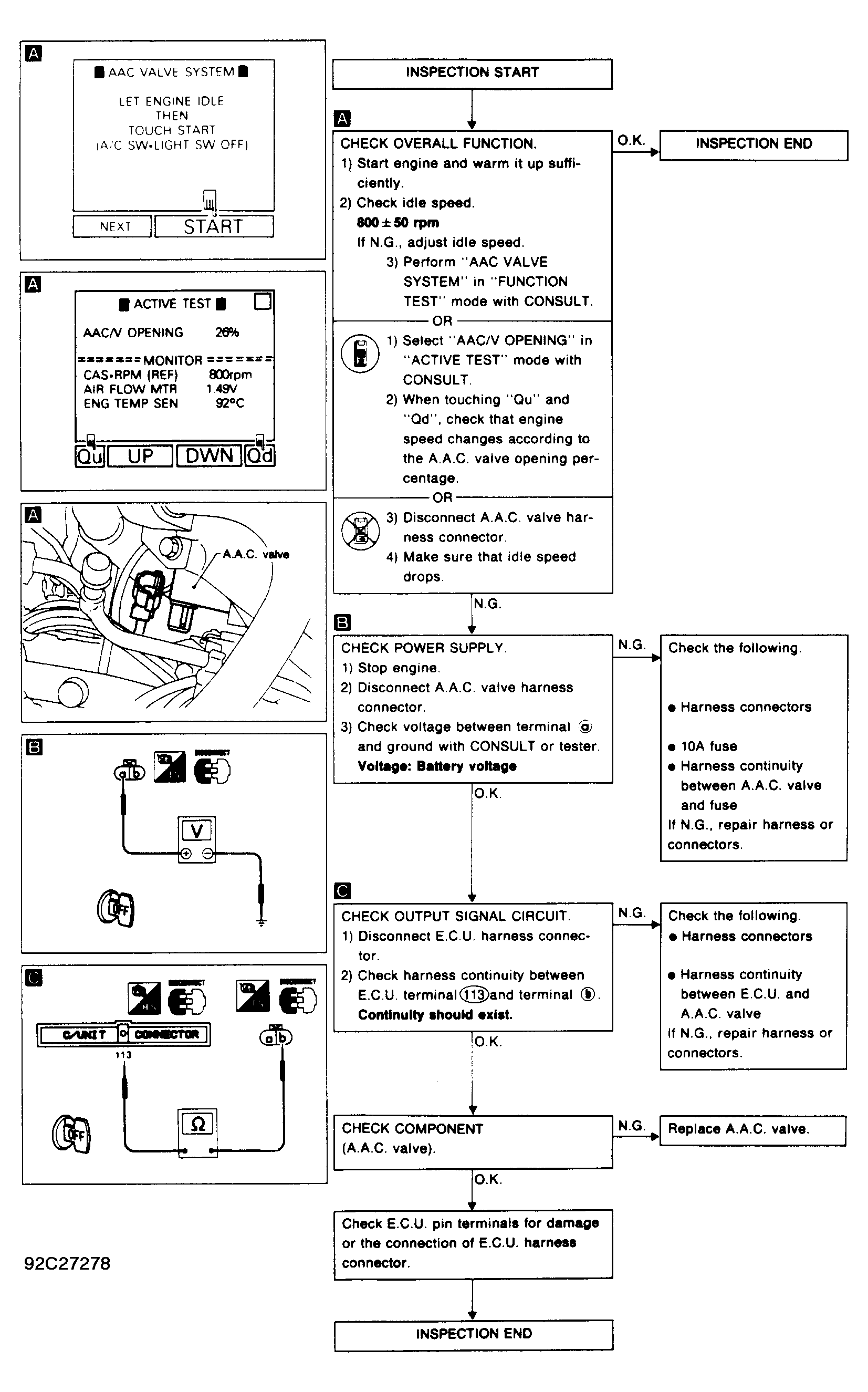

Fig 2: Auxiliary Air Control (AAC) Flow Chart (2.0L)

Courtesy of NISSAN MOTOR CO., U.S.A.

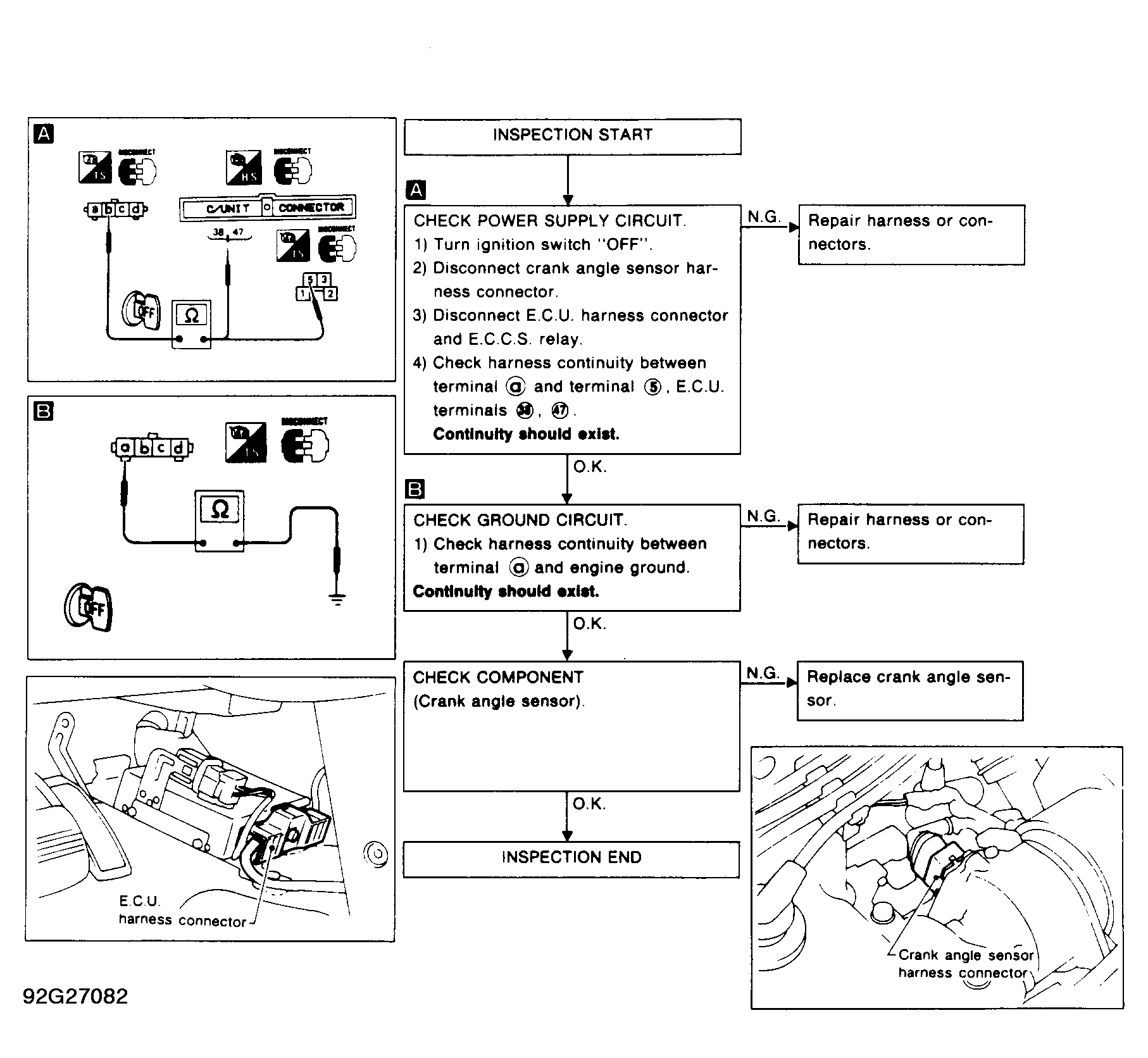

Fig 3: Crank Angle Sensor Flow Chart (1.6L)

Courtesy of NISSAN MOTOR CO., U.S.A.
