Ecu Power Source & Ground Chart

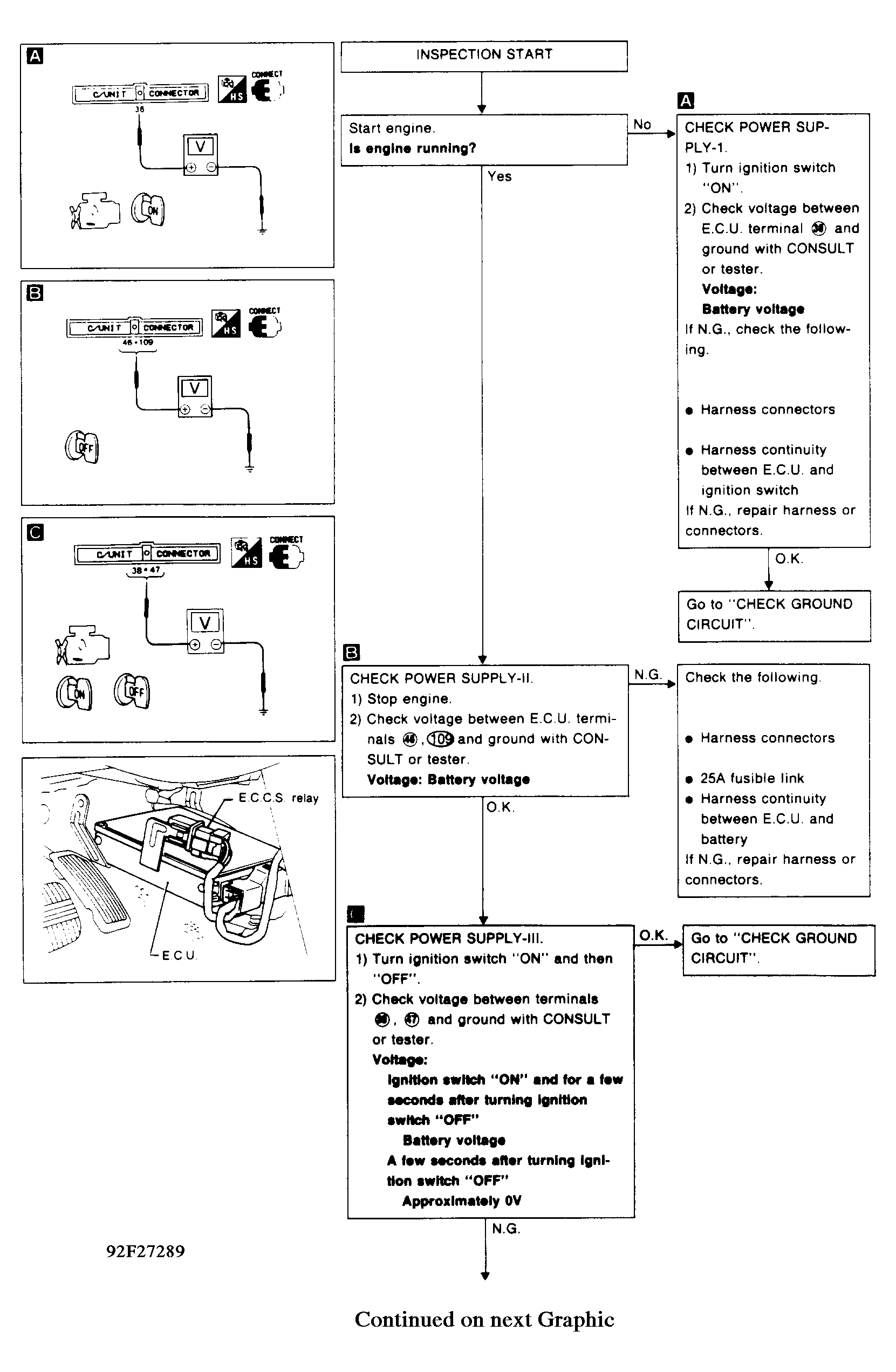

Fig 1: ECU Power Source & Ground Flow Chart (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

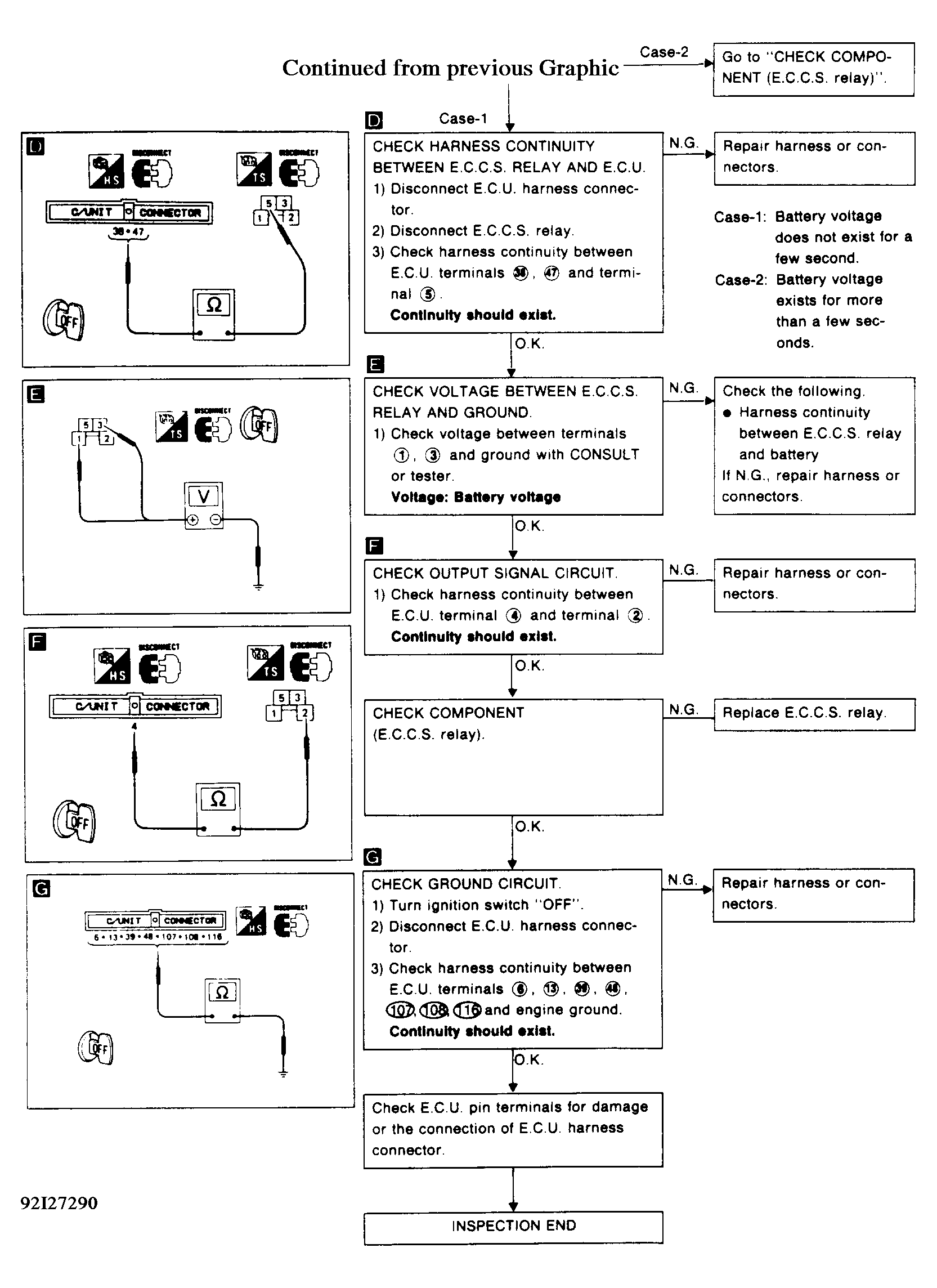

Fig 2: ECU Power Source & Ground Flow Chart (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
