Exhaust Gas Sensor Heater Chart
Exhaust Gas Sensor Heater Chart

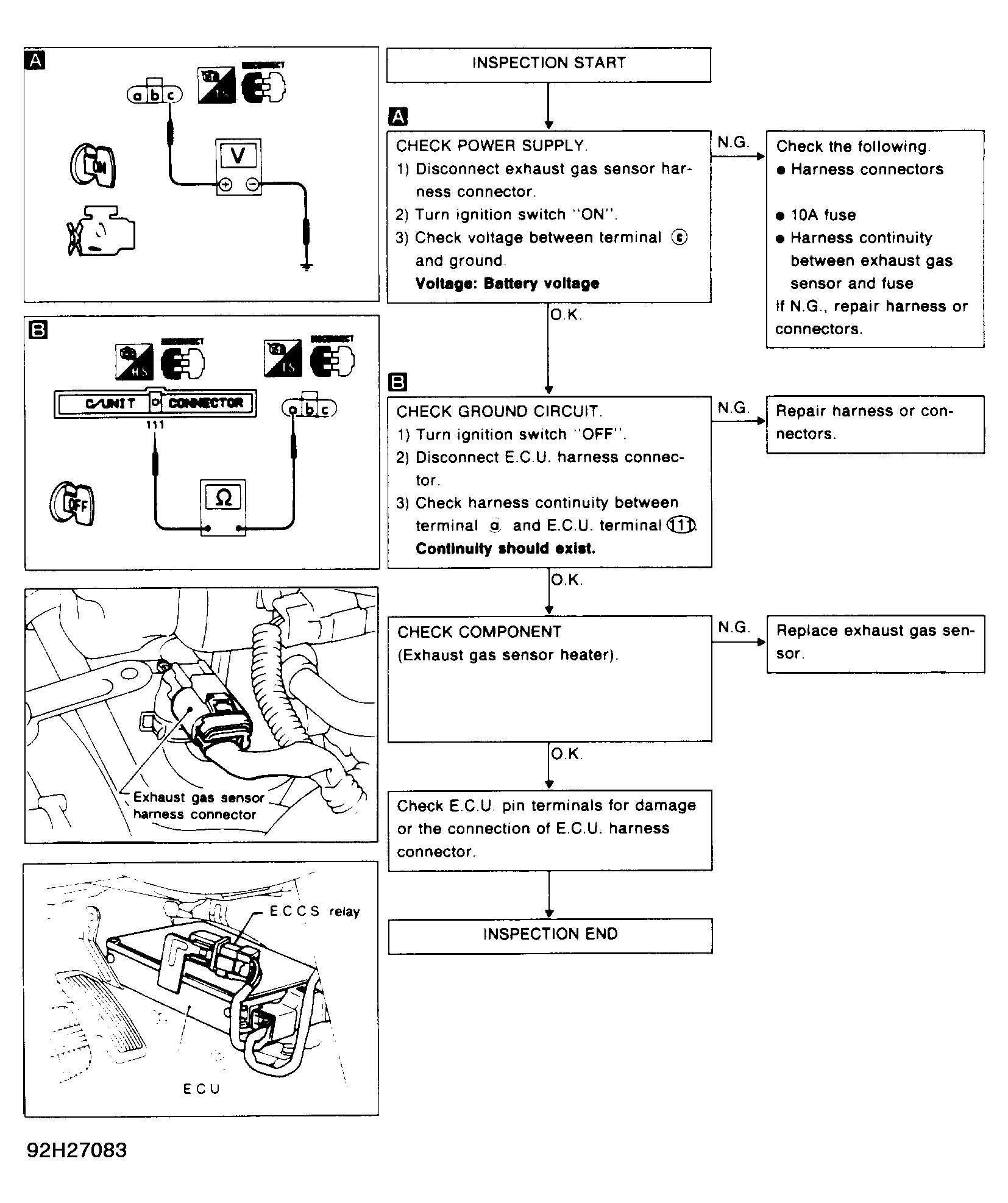

Fig 1: Exhaust Gas Sensor Heater Flow Chart (2.0L)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
