Engine Controls - System/Component Tests
›
Diagnostic Charts
›
Fuel Pump Chart
Fuel Pump Chart

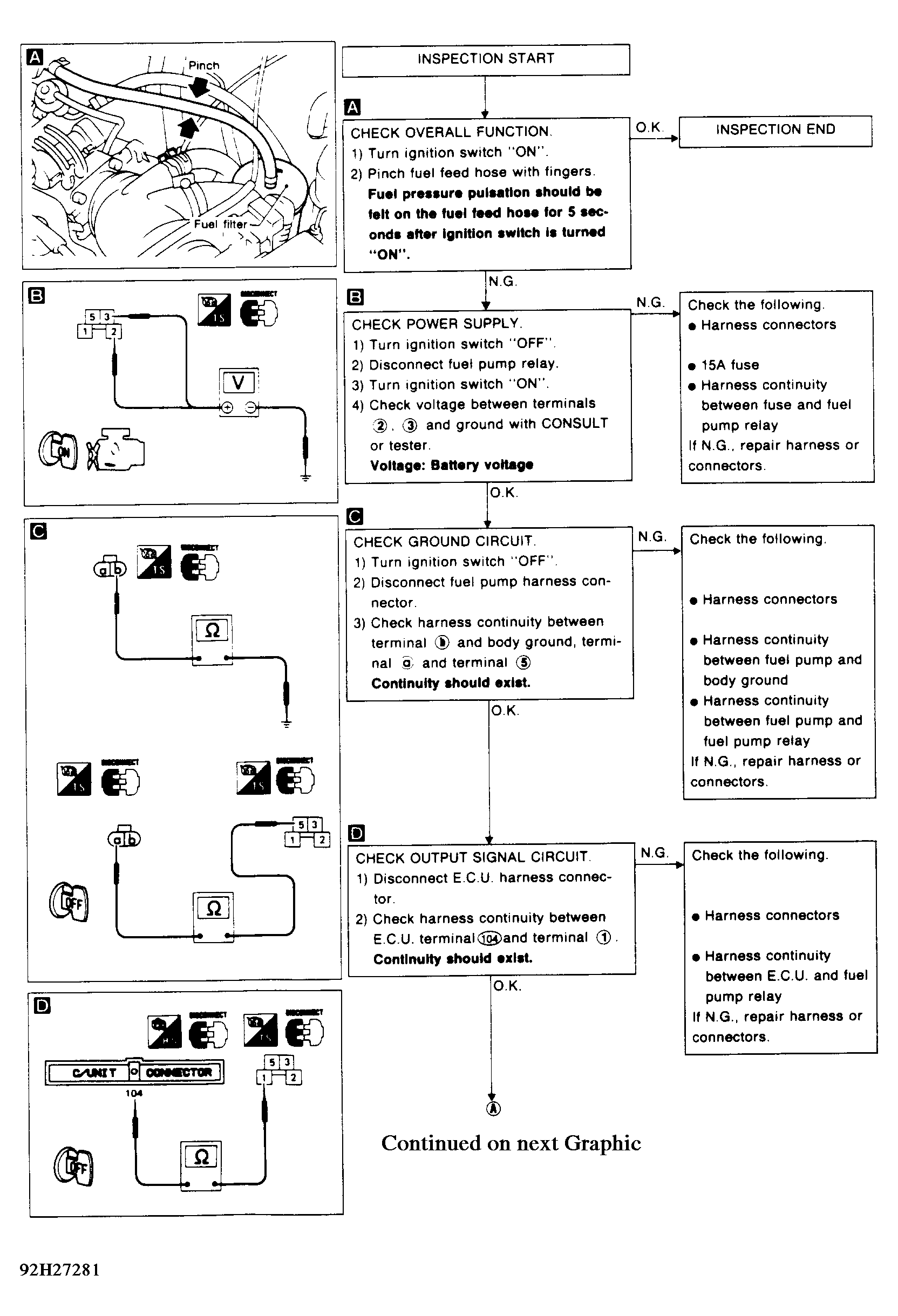

Fig 1: Fuel Pump Flow Chart (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

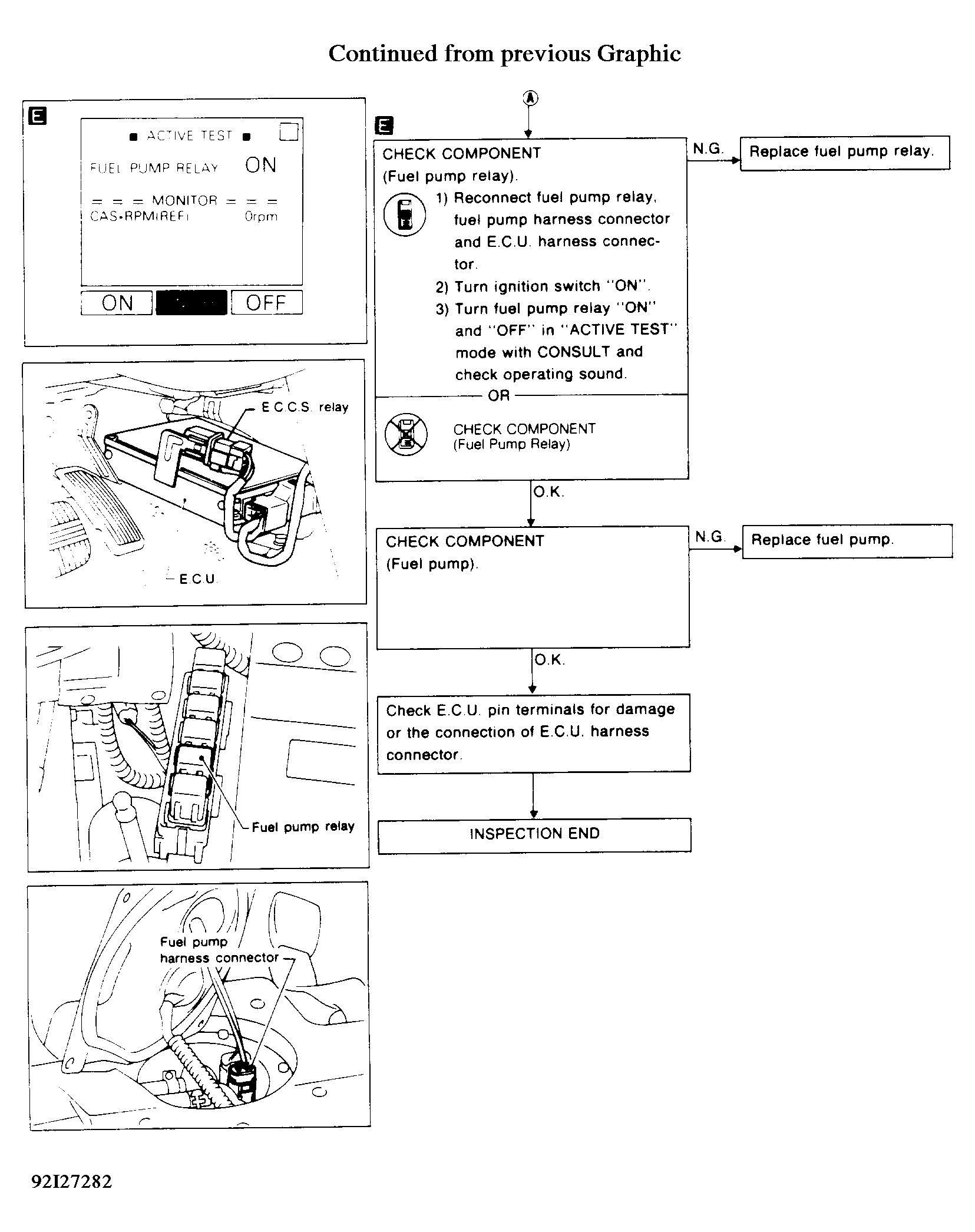

Fig 2: Fuel Pump Flow Chart (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
