Engine Controls - System/Component Tests
›
Diagnostic Charts
›
Power Steering Oil Pressure Switch Chart
Power Steering Oil Pressure Switch Chart

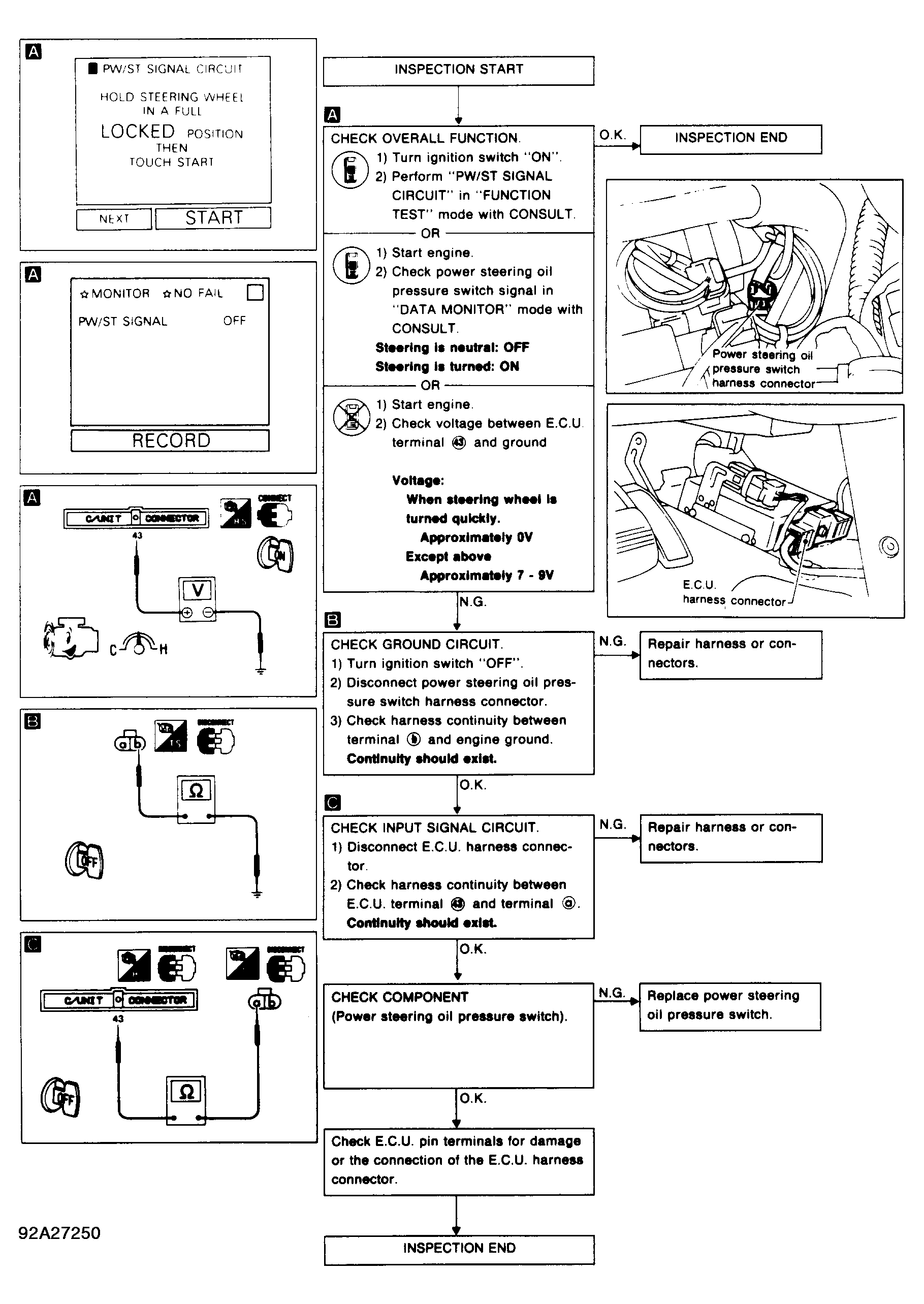

Fig 1: Power Steering Oil Pressure Switch Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
