Radiator (Cooling) Fan Control (2.0L) Diagnostic Chart
Radiator (Cooling) Fan Control (2.0L) Diagnostic Chart

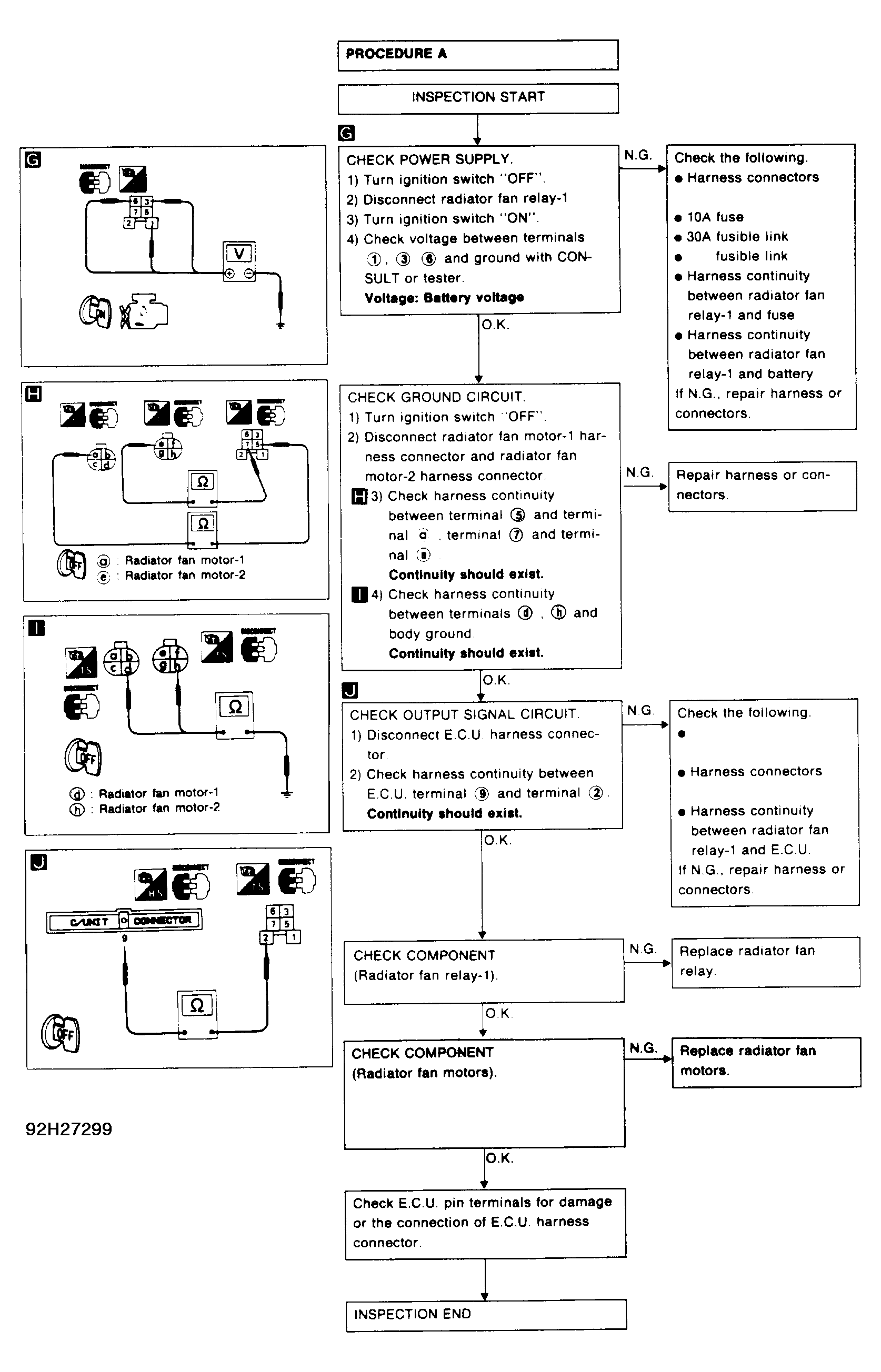

Fig 1: Radiator (Cooling) Fan Control Flow Chart (2.0L)
Courtesy of NISSAN MOTOR CO., U.S.A.

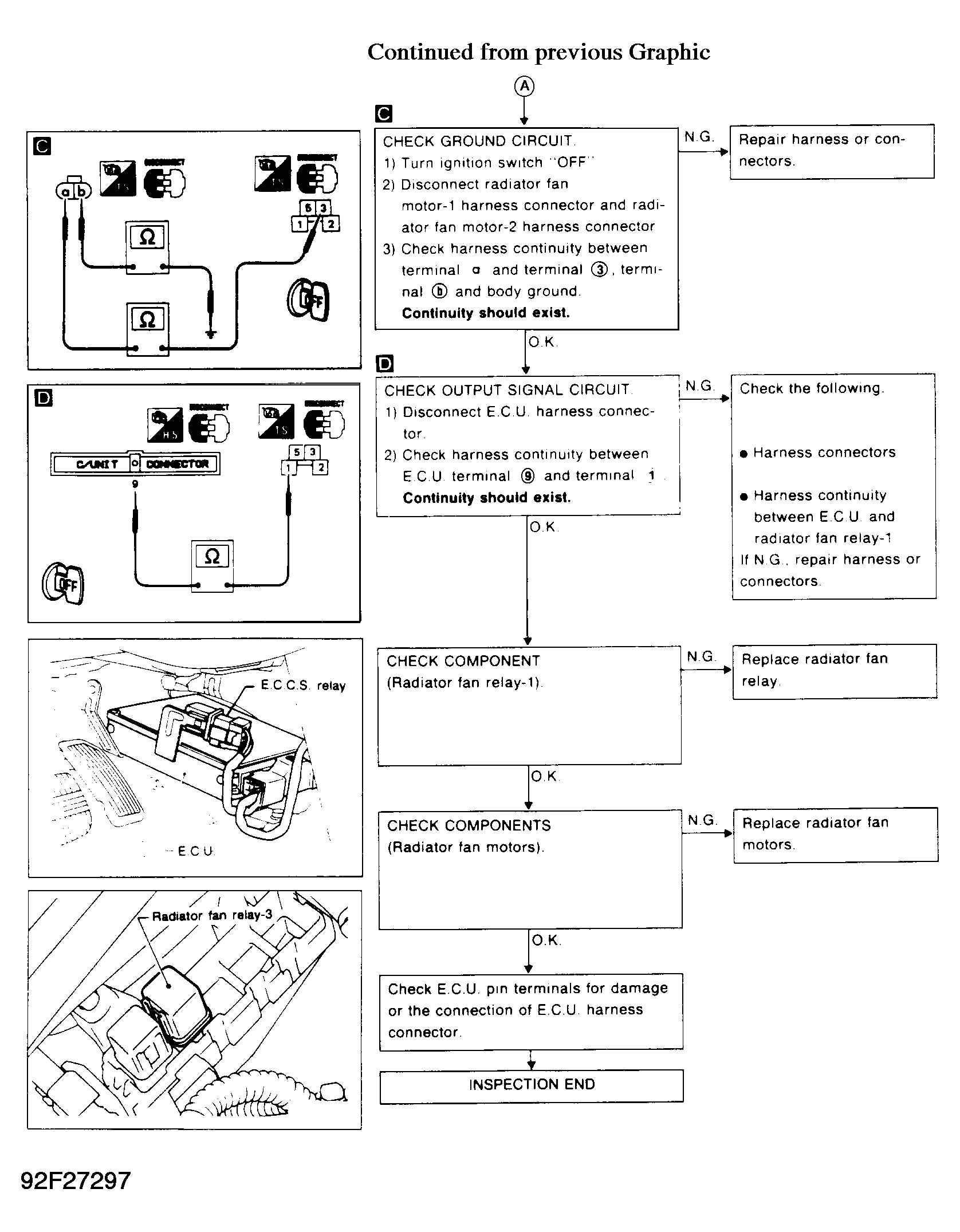

Fig 2: Radiator (Cooling) Fan Control Flow Chart (2.0L)
Courtesy of NISSAN MOTOR CO., U.S.A.

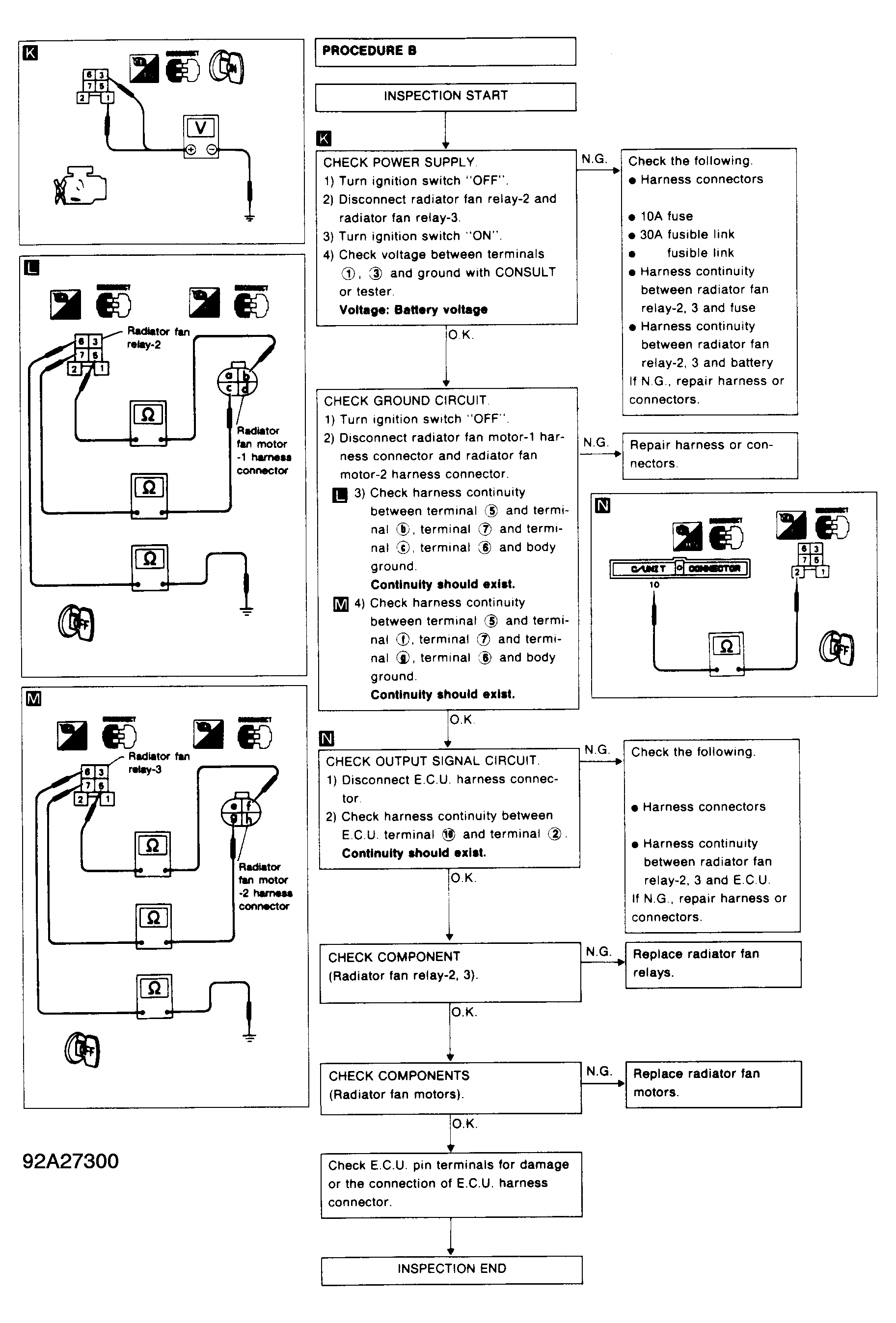

Fig 3: Radiator (Cooling) Fan Control Flow Chart (2.0L)
Courtesy of NISSAN MOTOR CO., U.S.A.

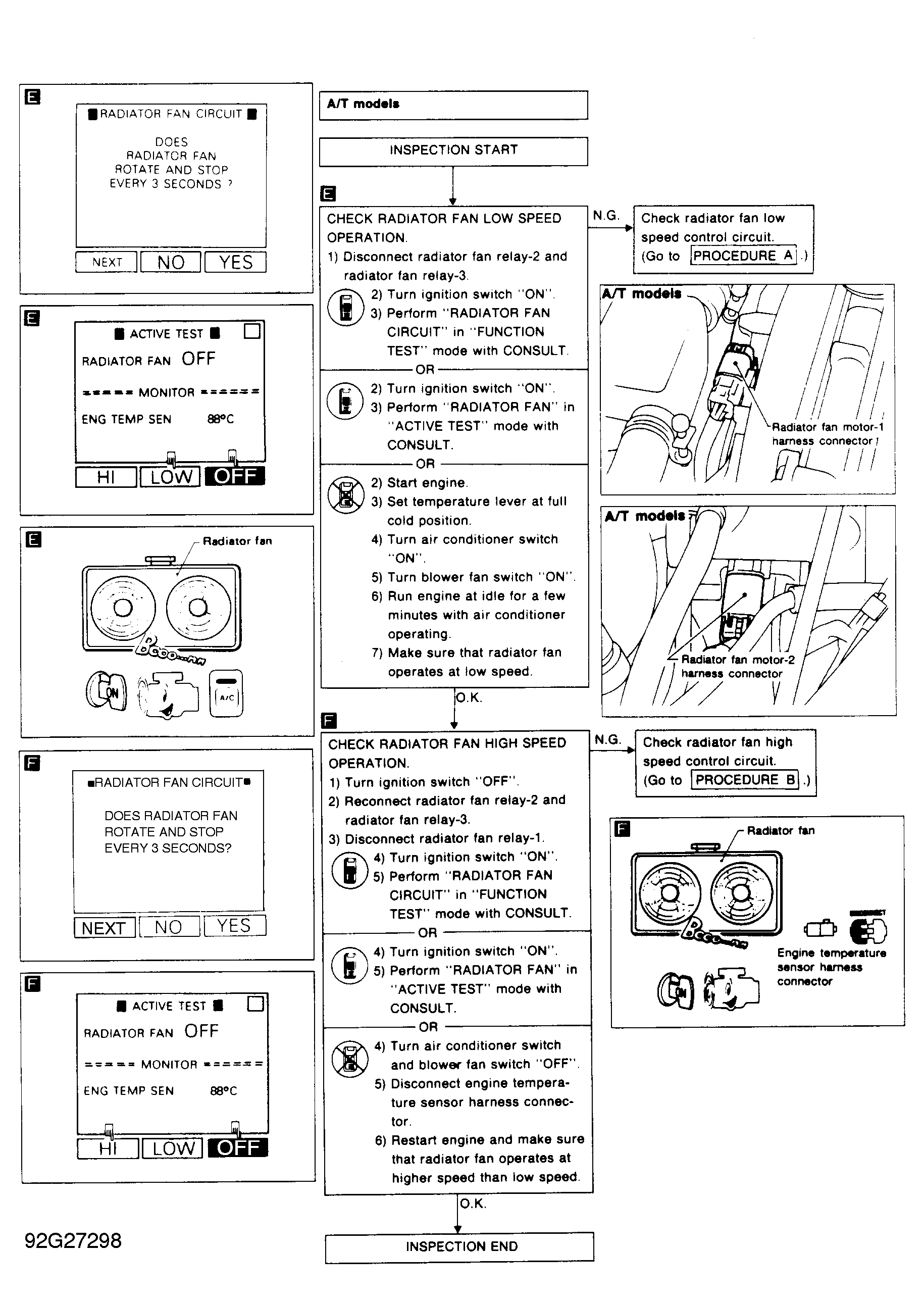

Fig 4: Radiator (Cooling) Fan Control Flow Chart (2.0L)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
