Code 32 - EGR Sensor (2.0L)

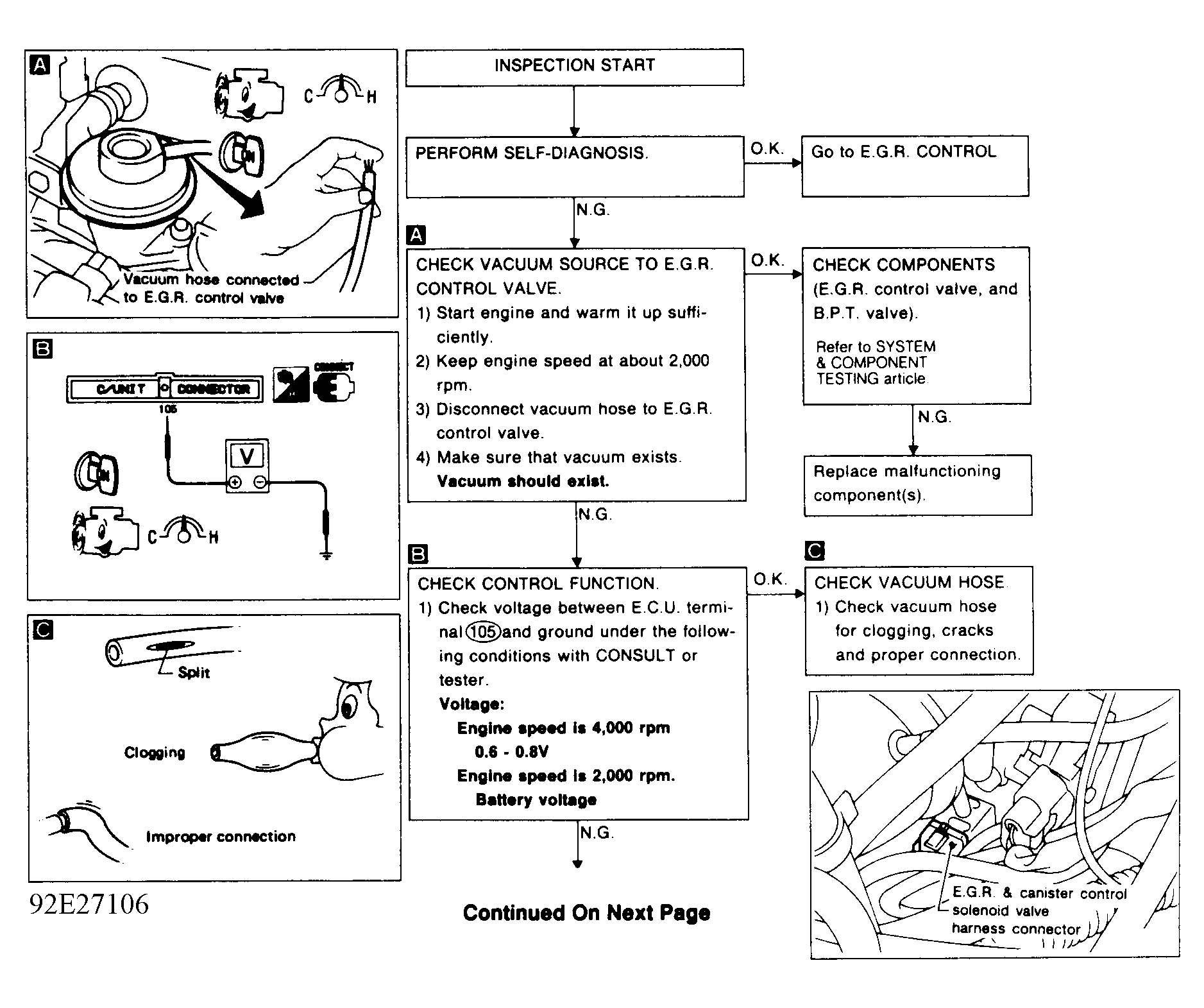

Fig 1: Code 32 - EGR Sensor (2.0L)(1 Of 2)

G92E27106

Courtesy of NISSAN MOTOR CO., U.S.A.

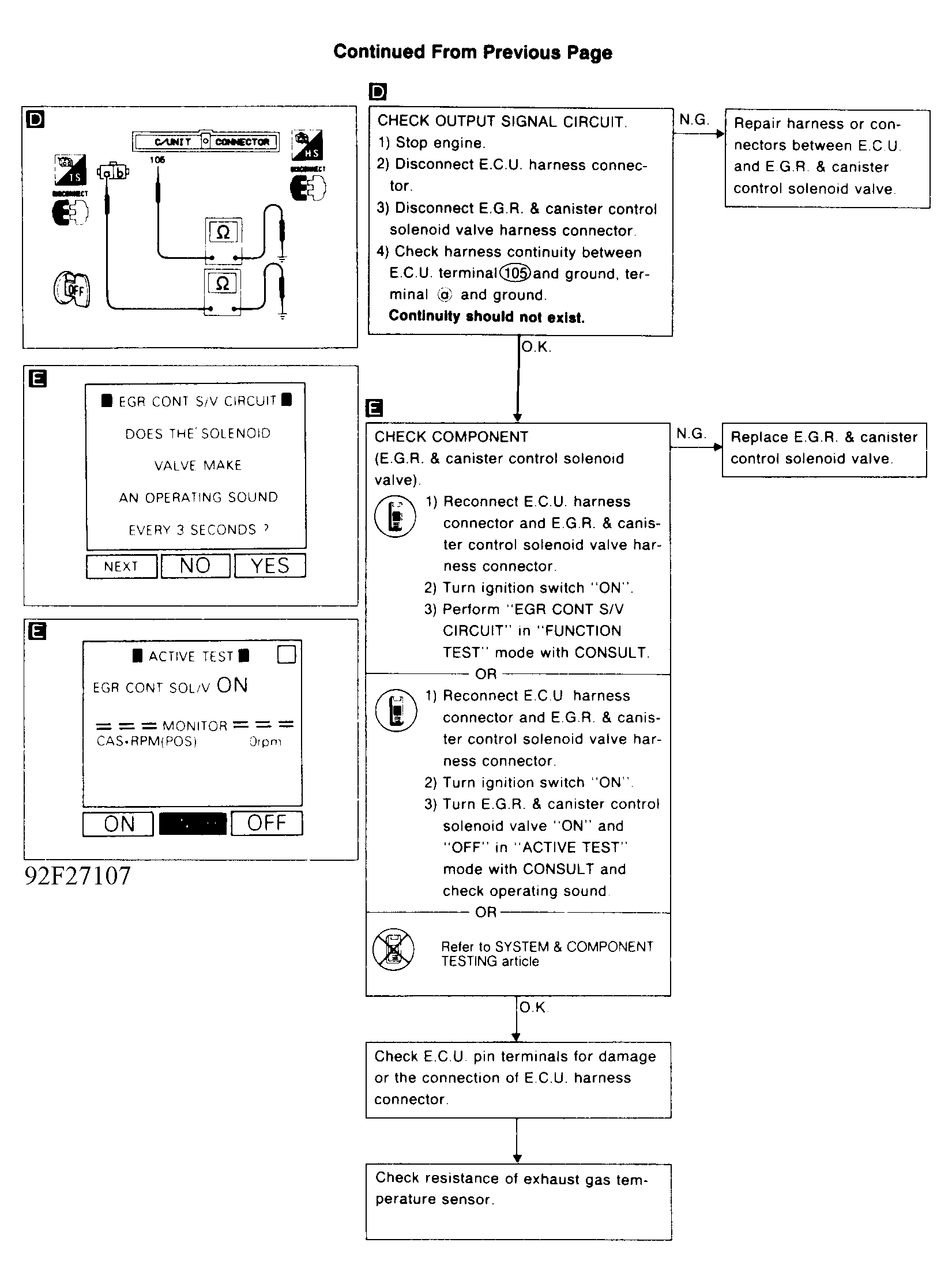

Fig 2: Code 32 - EGR Sensor (2.0L)(2 Of 2)

G92F27107

Courtesy of NISSAN MOTOR CO., U.S.A.
