Fuel Pump Chart
Fuel Pump Chart

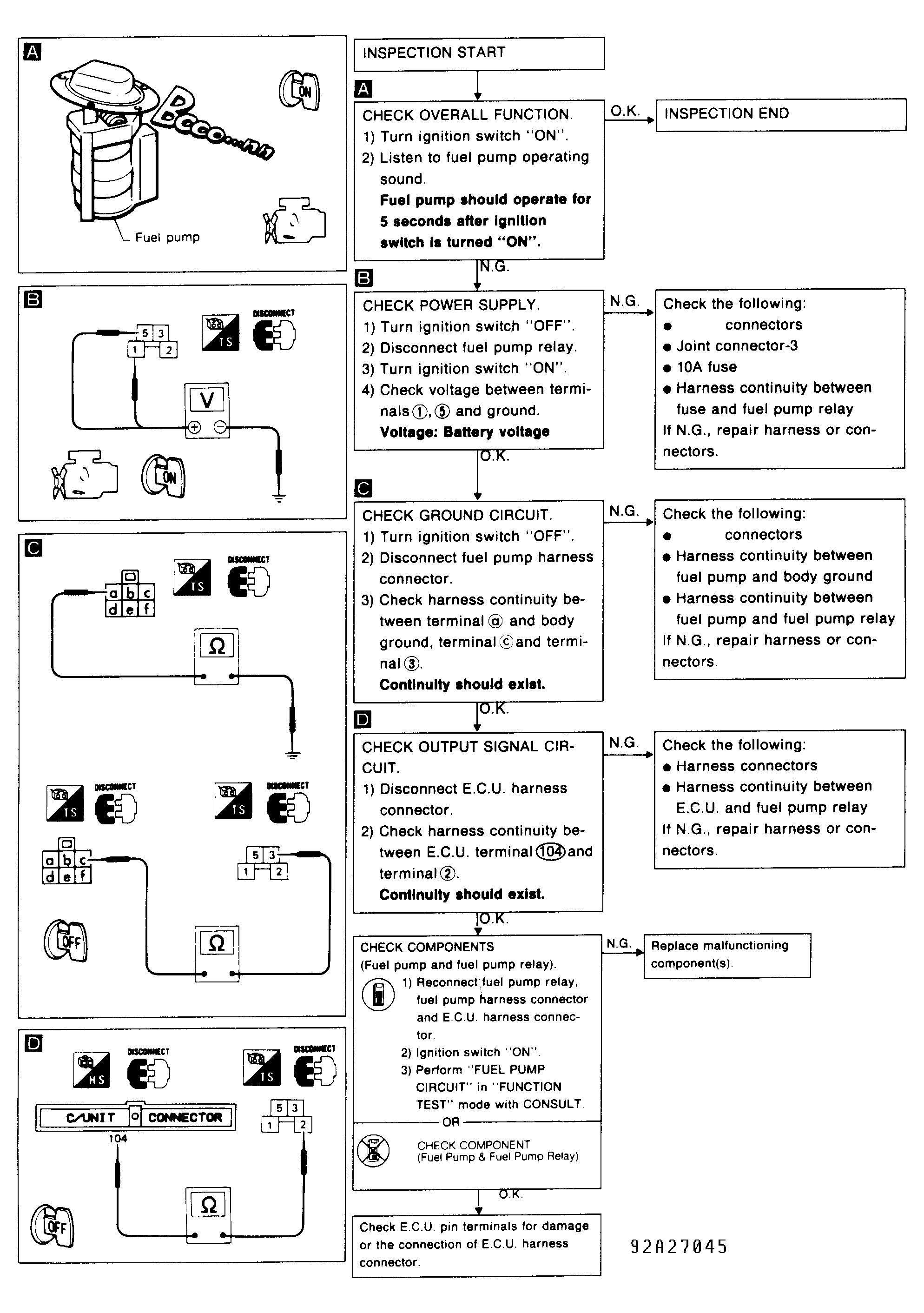

Fig 1: Fuel Pump Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
