Auxiliary Air Control Chart

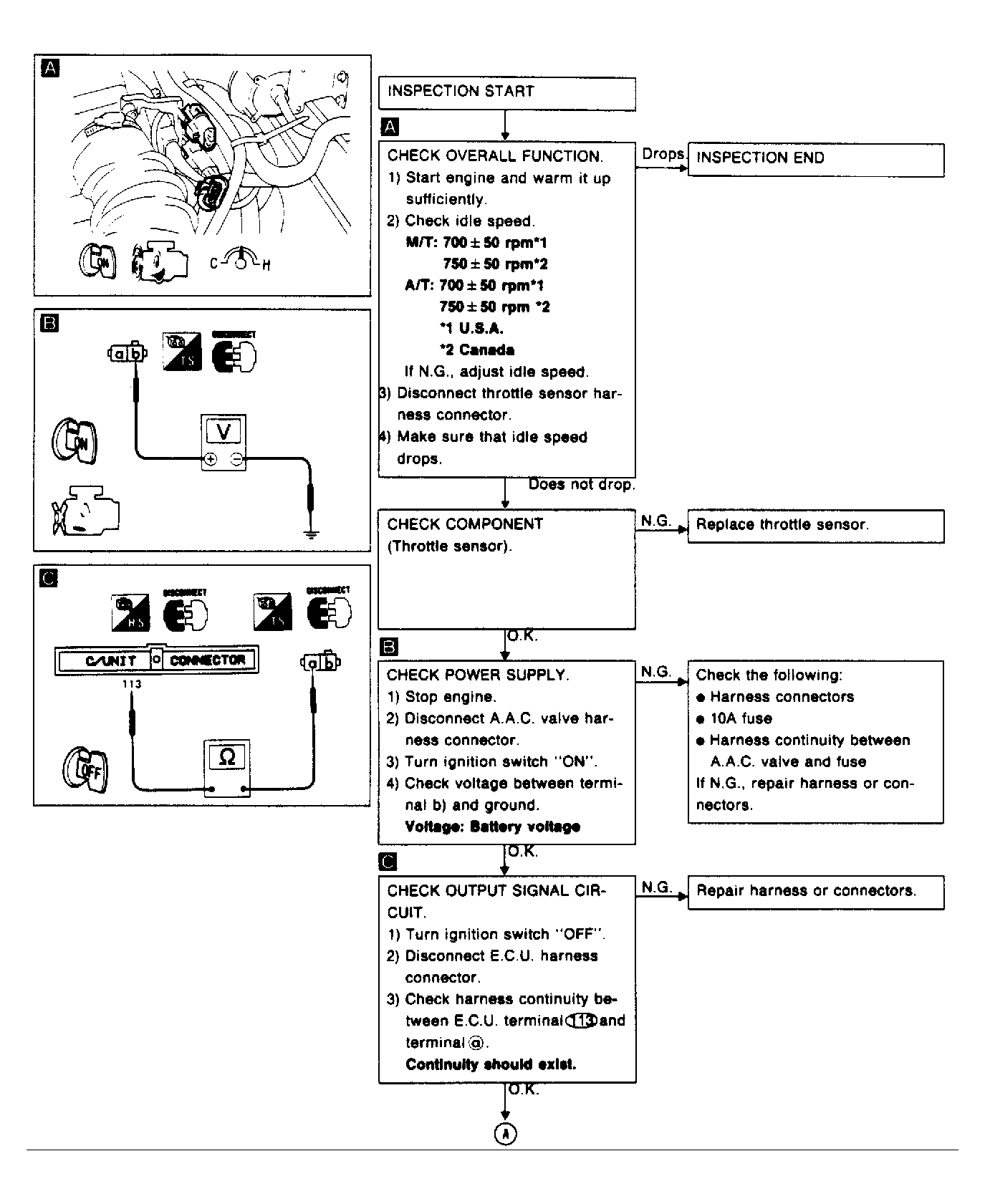

Fig 1: Auxiliary Air Control (AAC) Diagnostic Chart (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

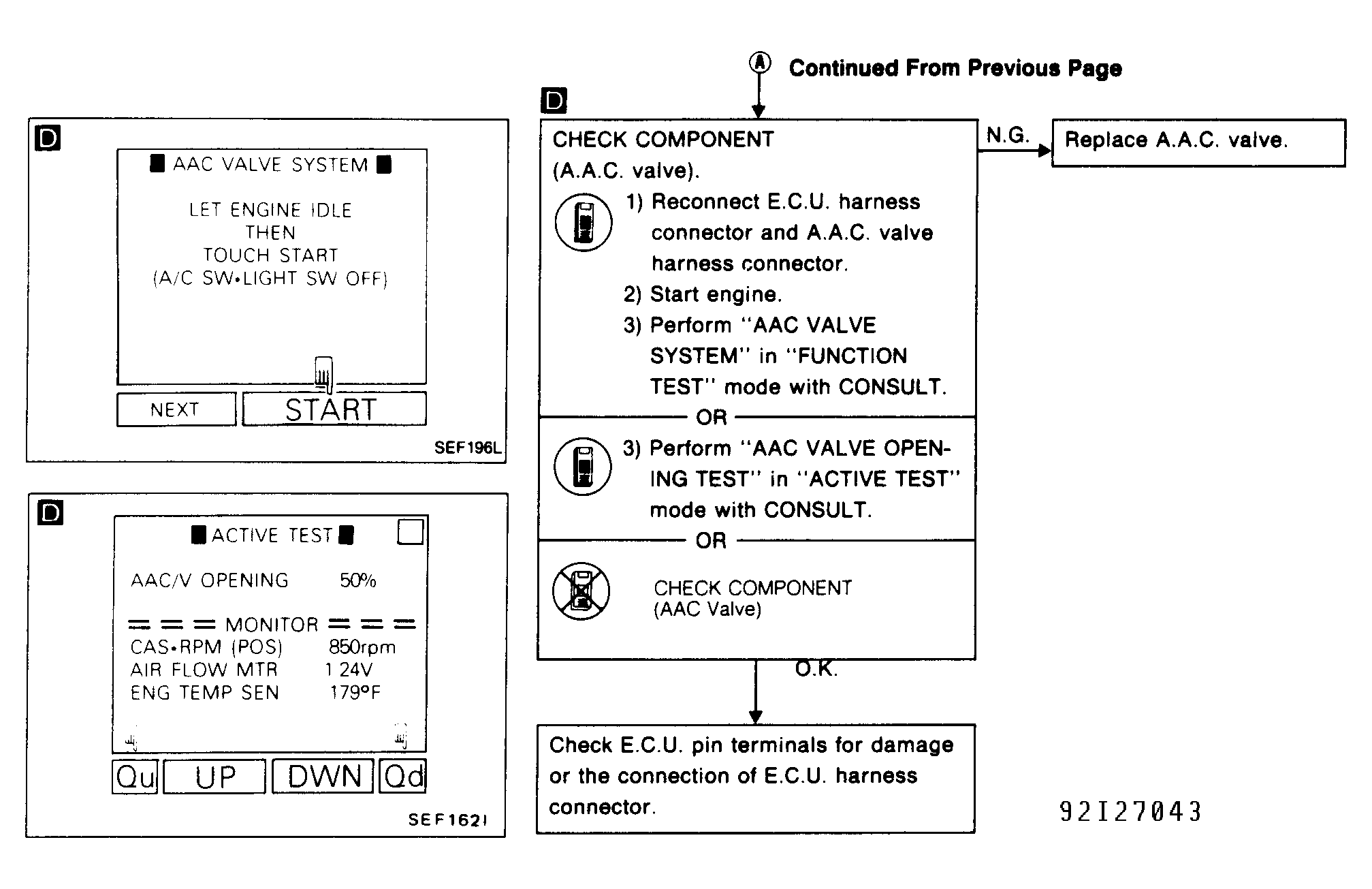

Fig 2: Auxiliary Air Control (AAC) Diagnostic Chart (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
