Control Units

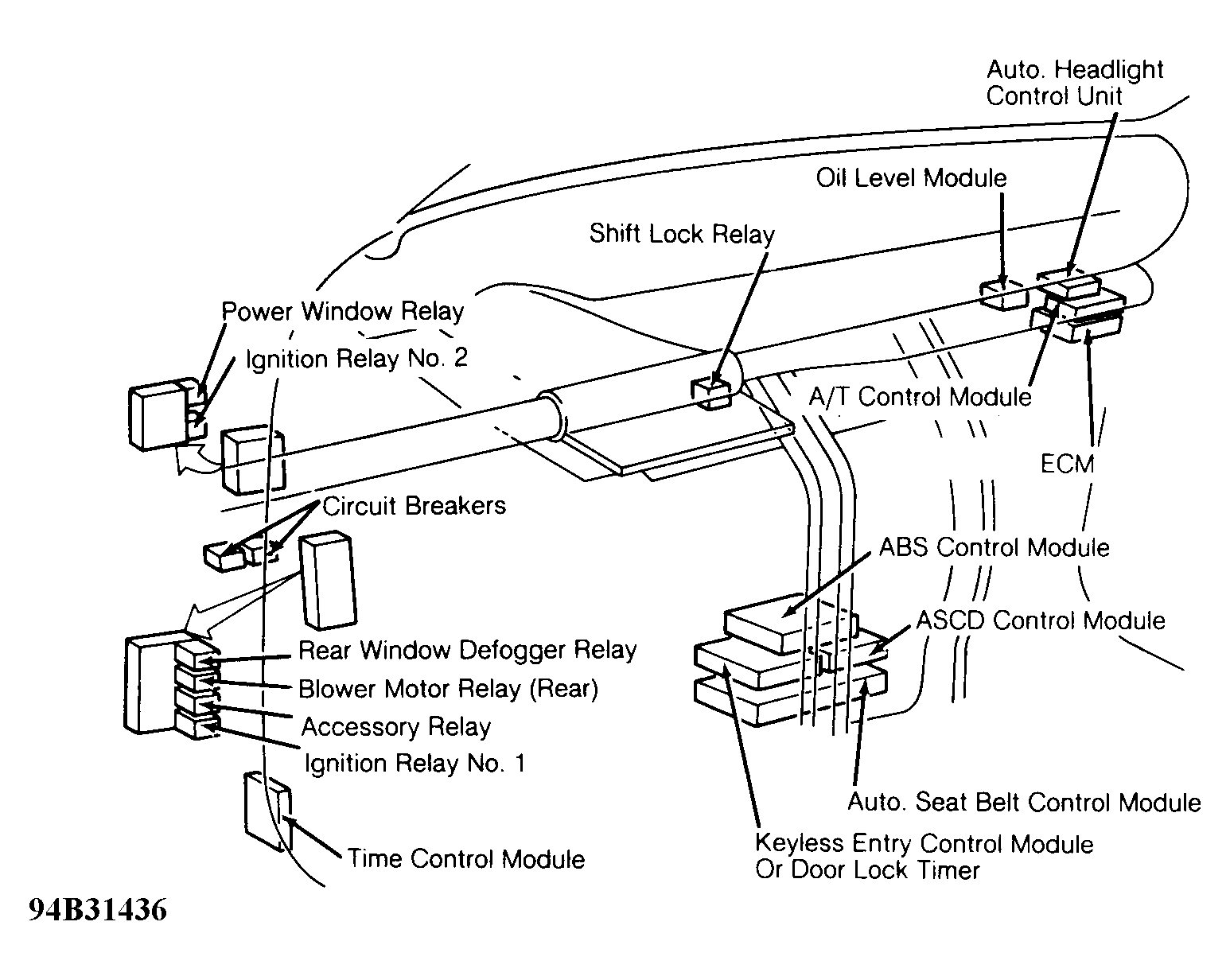

CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | Behind front of center console. See Figure . |
| ASCD Control Module | Behind front of center console. See Figure . |
| A/T Control Module | Behind glove compartment. See Figure . |
| Auto. Headlight Control Unit | Behind glove compartment. See Figure . |
| Auto. Seat Belt Control Module | Behind front of center console. See Figure . |

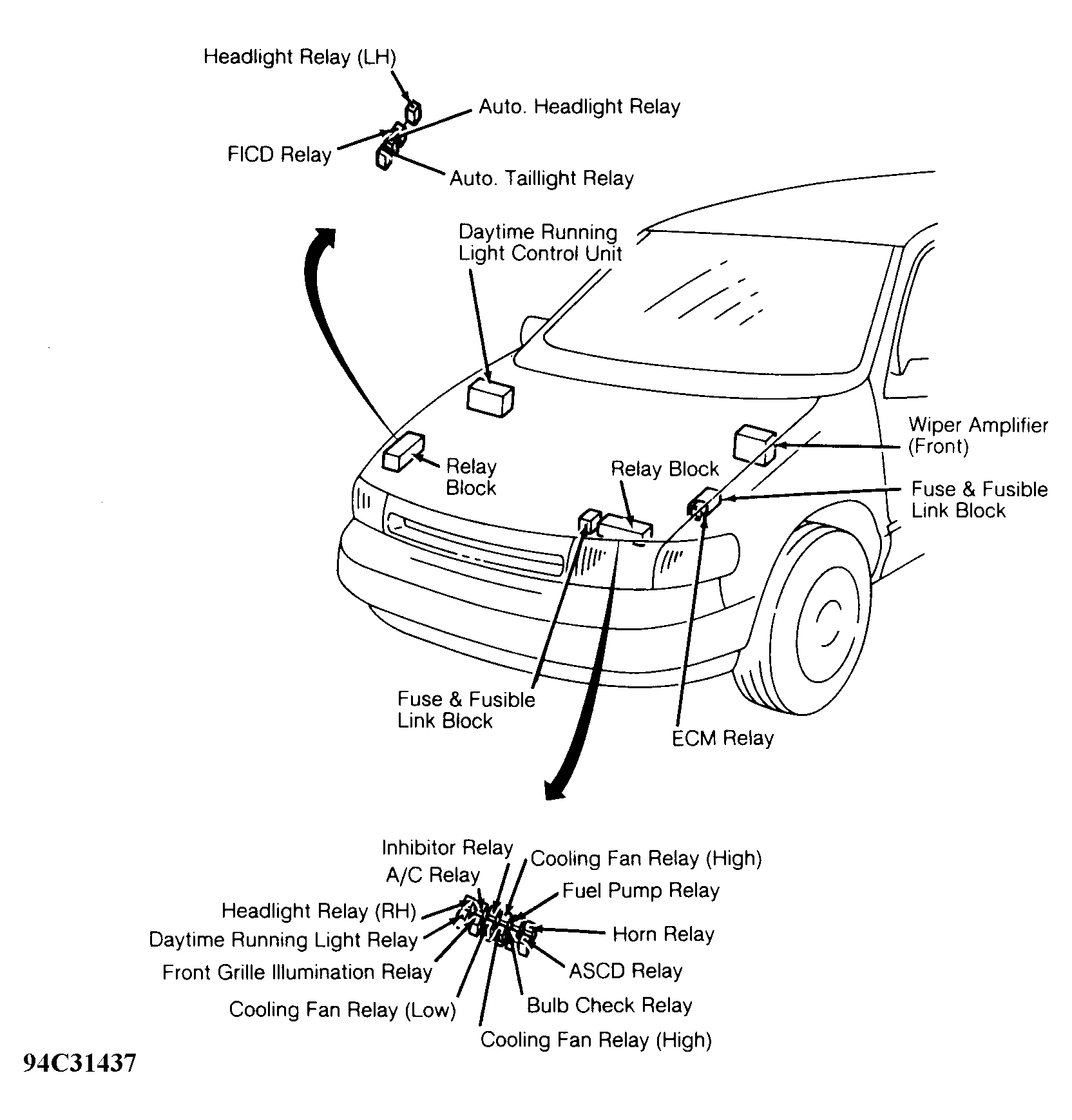

| Daytime Running Light Control Unit | In right rear of front inner fender panel. See Figure . |
| Engine Control Module (ECM) | Behind glove compartment. See Figure . |
| Keyless Entry Control Module | Behind front of center console. See Figure . |
| Oil Level Module | Behind glove compartment. See Figure . |
| Time Control Module | Behind left kick panel. See Figure . |
