Starter - HITACHI: Overhaul: Commutator

Inspect commutator for roughness, grooves, burns, pitting and out-of-round. If necessary, sand lightly with 500-600 grit sandpaper. If mica insulator undercut is less than .008" (.20), undercut to .020-.031" (.50-.80 mm). Replace armature if commutator diameter is less than specified. See COMMUTATOR MINIMUM DIAMETER  table.

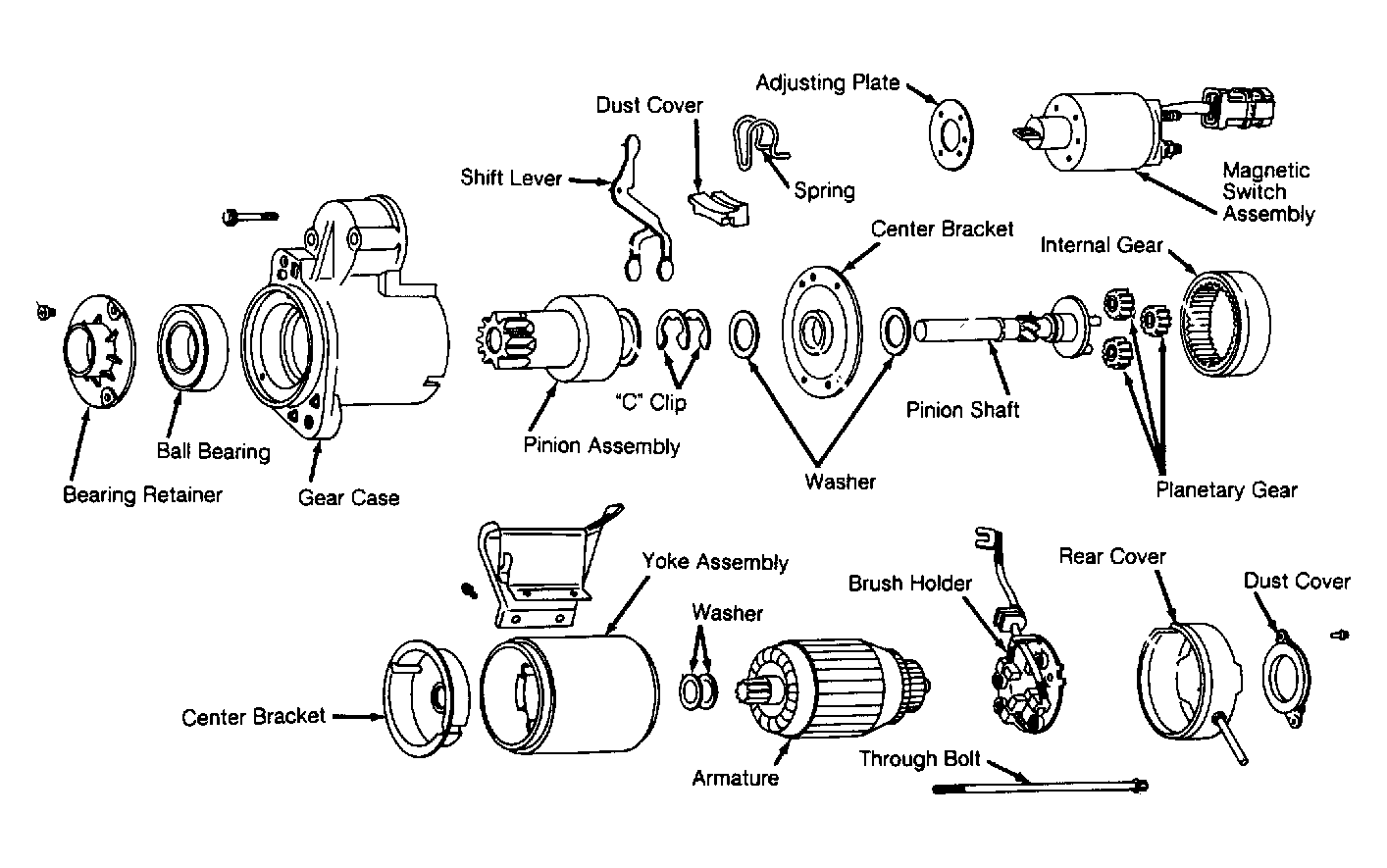

Fig 1: View Of Starter S114-461A (Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.

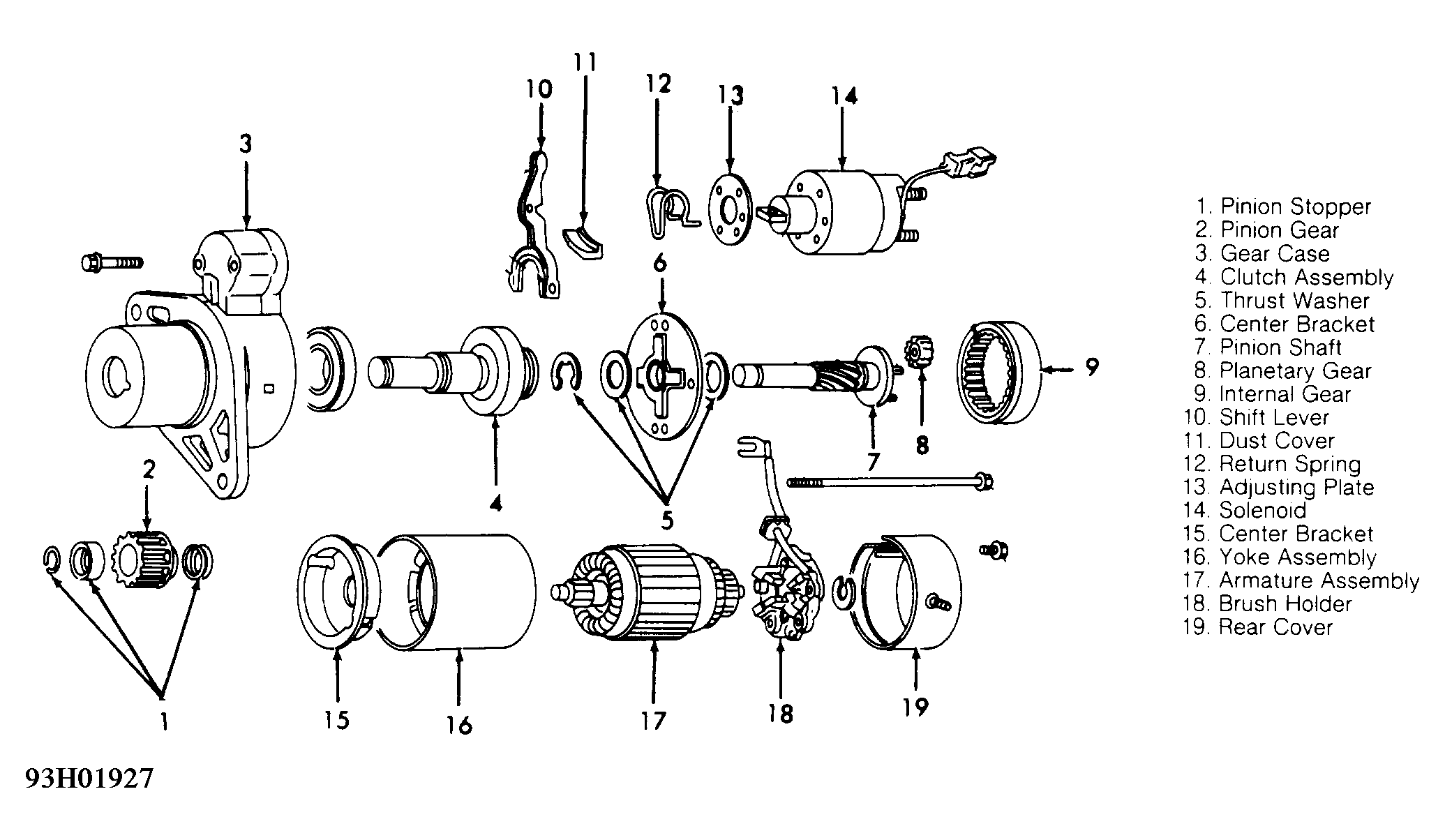

Fig 2: View Of Starters S114-754 (Altima), S114-756 (Maxima), S114 767/769 (NX & Sentra) & S114-757 (Quest)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: View Of Starters S114-701B (NX & Sentra) & S114-703A (Pathfinder & Pickup)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: View Of Starters S114-630 (NX & Sentra) & S114-607C (Pathfinder & Pickup)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: View Of Starter S114-528 (Pathfinder & Pickup)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: View Of Starter S114-527A (Pathfinder & Pickup)

Courtesy of NISSAN MOTOR CO., U.S.A.
