Fuel Pump: Notes

NOTE: Fuel pump is located in fuel tank. See Fig 1 . If vehicle is not equipped with a maintenance access cover for fuel pump service, remove fuel tank.

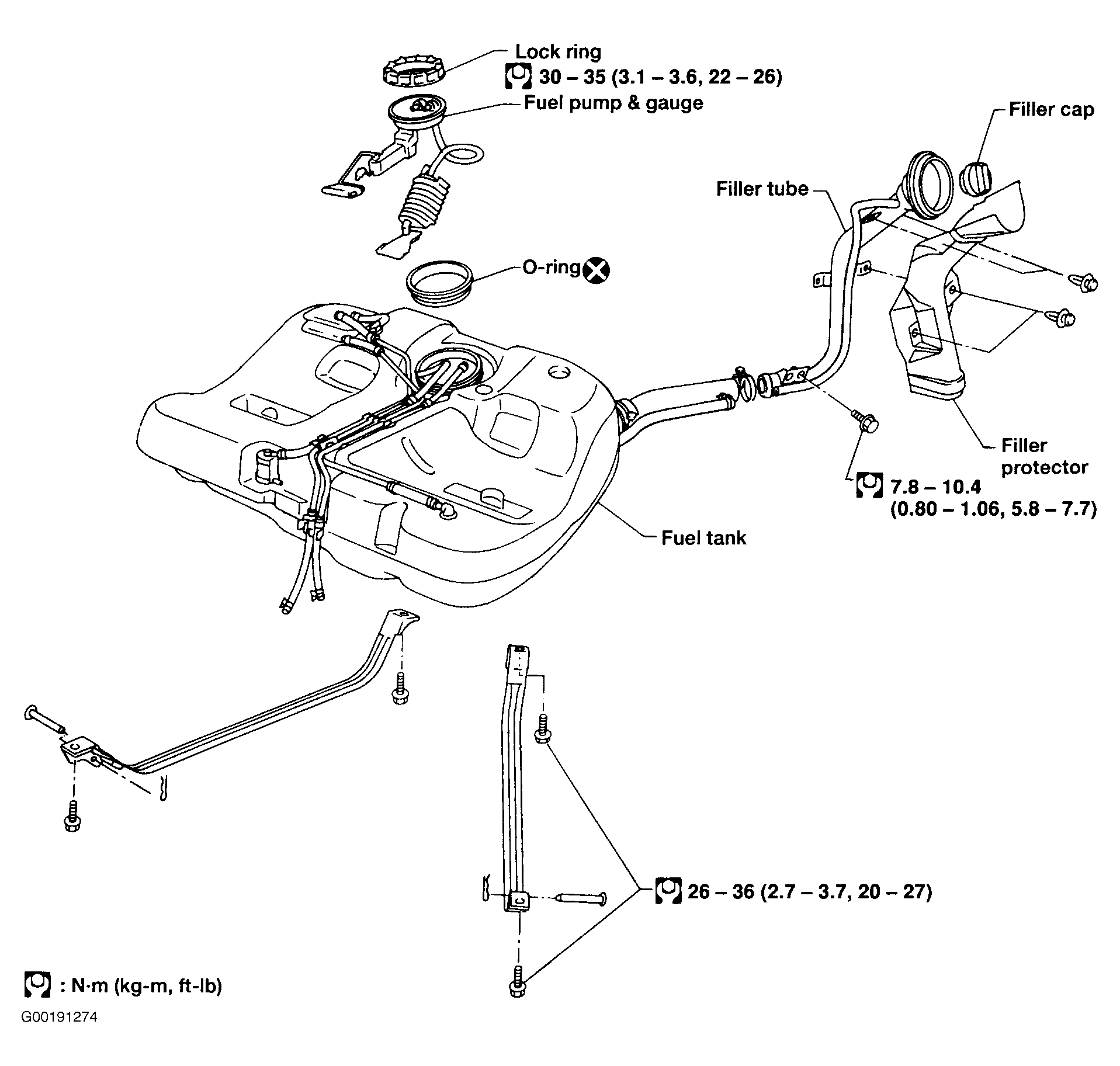

Fig 1: Locating Fuel Pump & Related Components

Courtesy of NISSAN MOTOR CO., U.S.A.
