Anti-Lock Brake System: Description

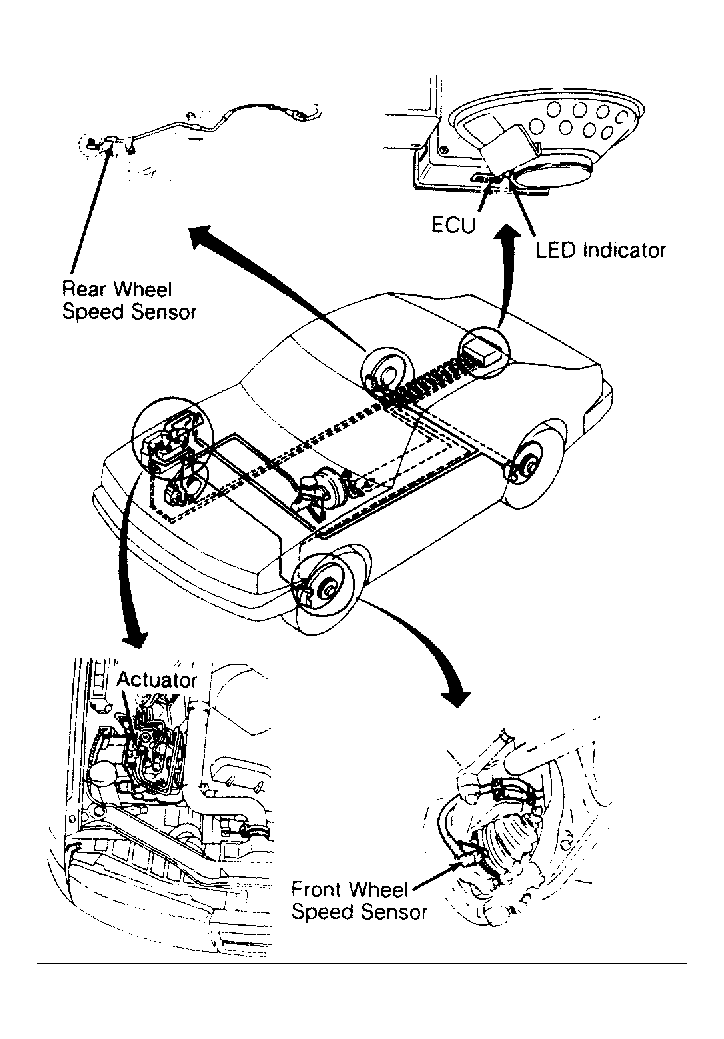

Anti-Lock Brake System (ABS) prevents wheel lock-up, allowing driver to maintain steering control during heavy braking. ABS consists of an Electronic Control Unit (ECU) with an LED that displays self-diagnostic codes, actuator (electro-hydraulic unit), warning light, wheel speed sensors, wiring and hydraulic lines. See ELECTRICAL COMPONENT LOCATIONS table. See Fig 1.
Actuator (electro-hydraulic unit) consists of a pump motor, accumulator, solenoid valves for each channel, actuator relay, pump motor relay, check valves and reservoirs.
ELECTRICAL COMPONENT LOCATIONS
| Component | Location | |||
|---|---|---|---|---|
| Actuator | In Engine Compartment | |||
| ECU | In Trunk, At Right End Of Rear Shelf | |||
| Relays | (1) On Actuator | |||
| Wheel Speed Sensor | ||||
| Front | At Wheel Hub | |||
| Rear | At Wheel Hub | |||
|
||||
NOTE:
For more brake system information, see BRAKE SYSTEM
article in the BRAKES section.
