Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

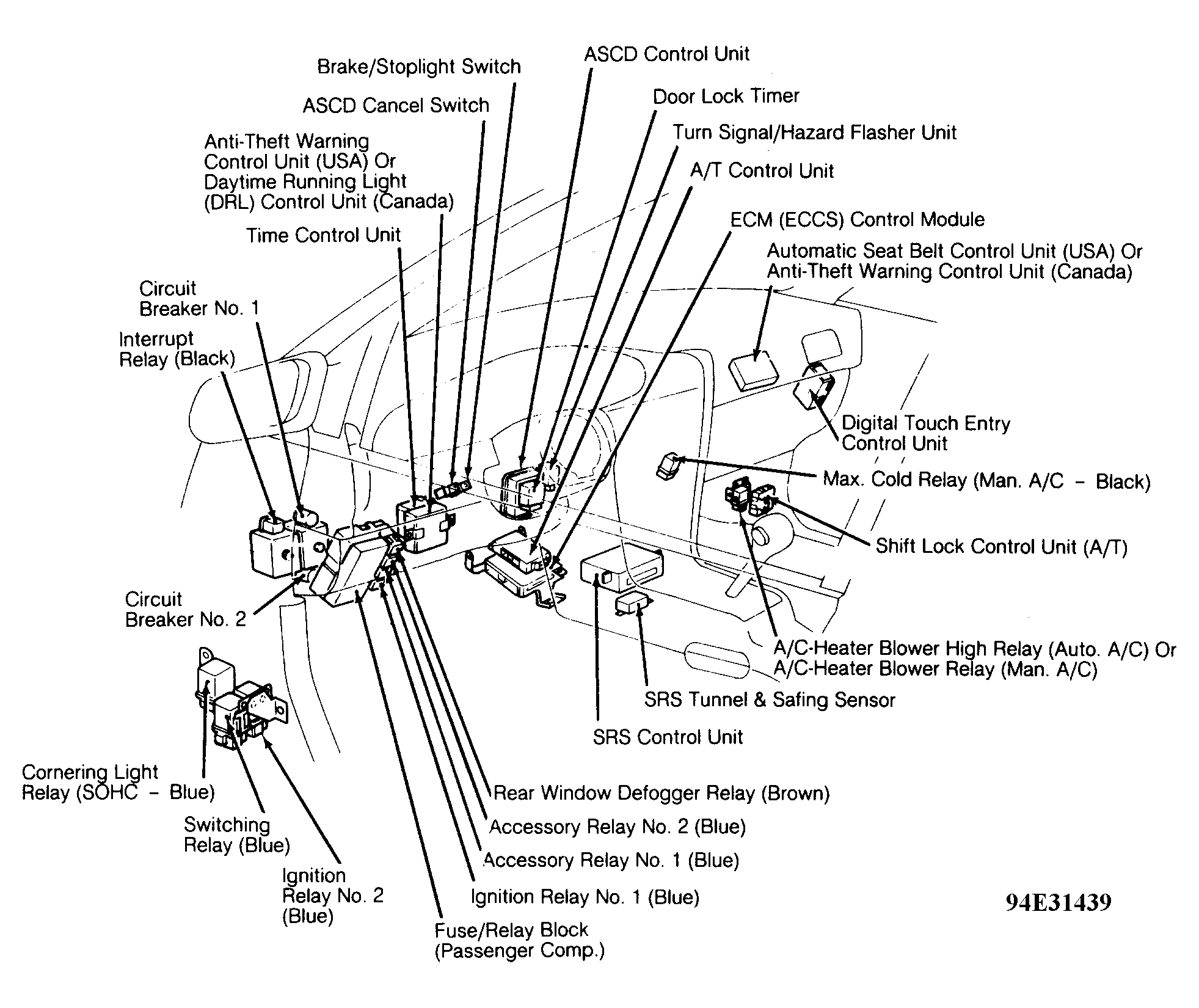

| Circuit Breakers (2) | Under left side of dash, behind fuse/relay block. See Figure . |

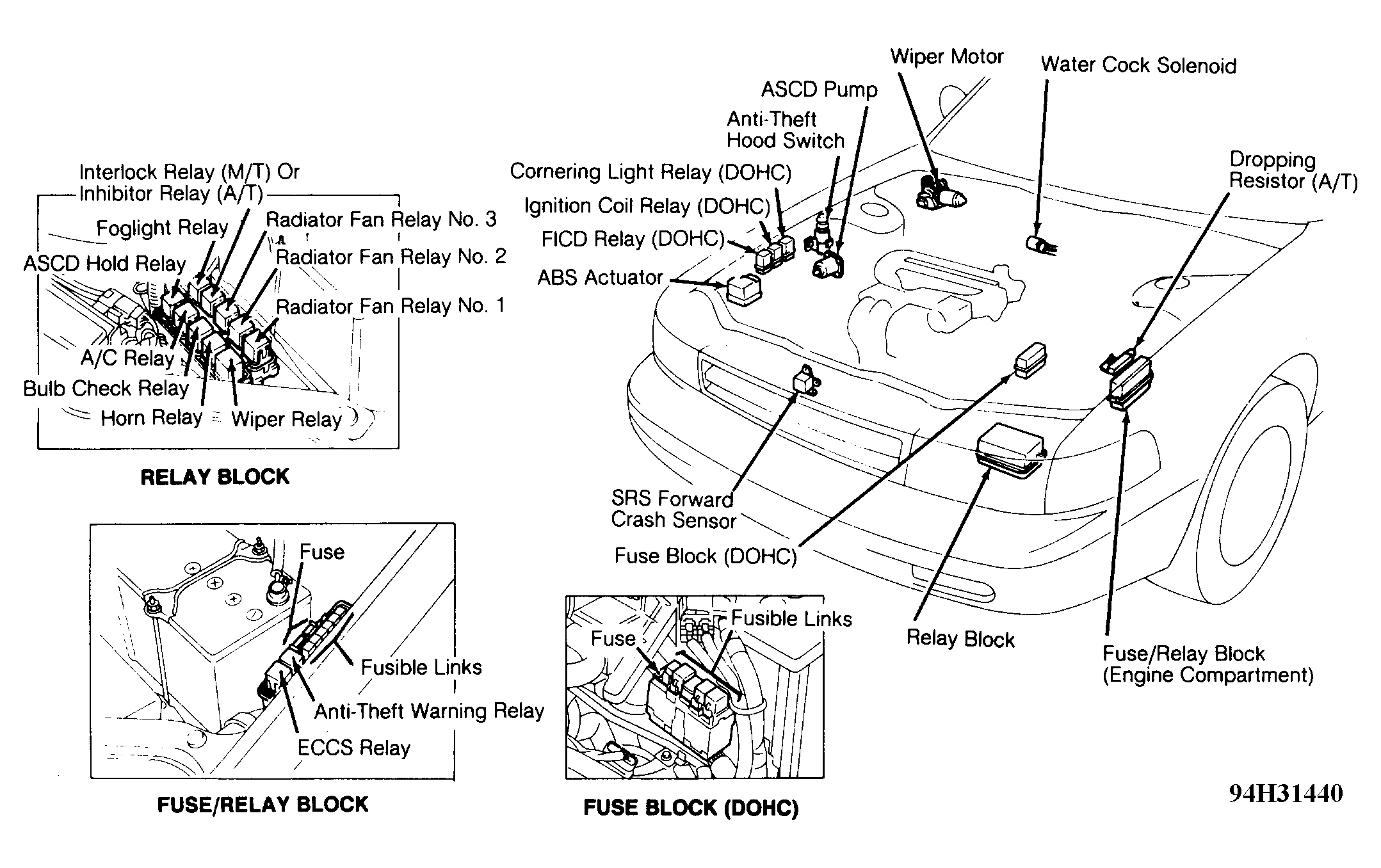

| Engine Compartment Fuse/Relay Block | On inner left front fender panel, near battery. See Figure . |
| Passenger Compartment Fuse/Relay Block | Under left side of dash. See Figure . |

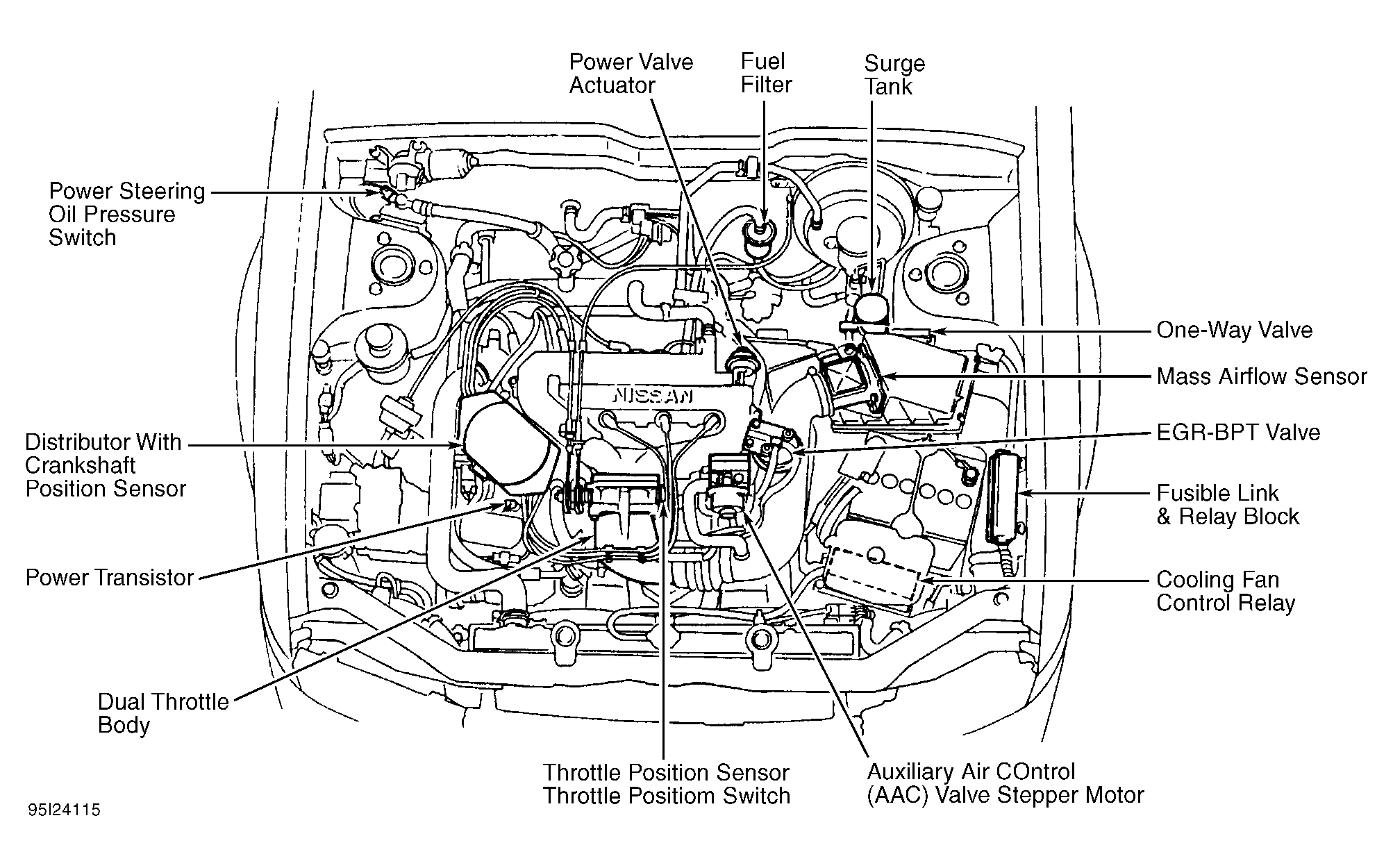

| Fusible Links | On inner left front fender panel, in fuse/relay block. See Figure & Figure . |

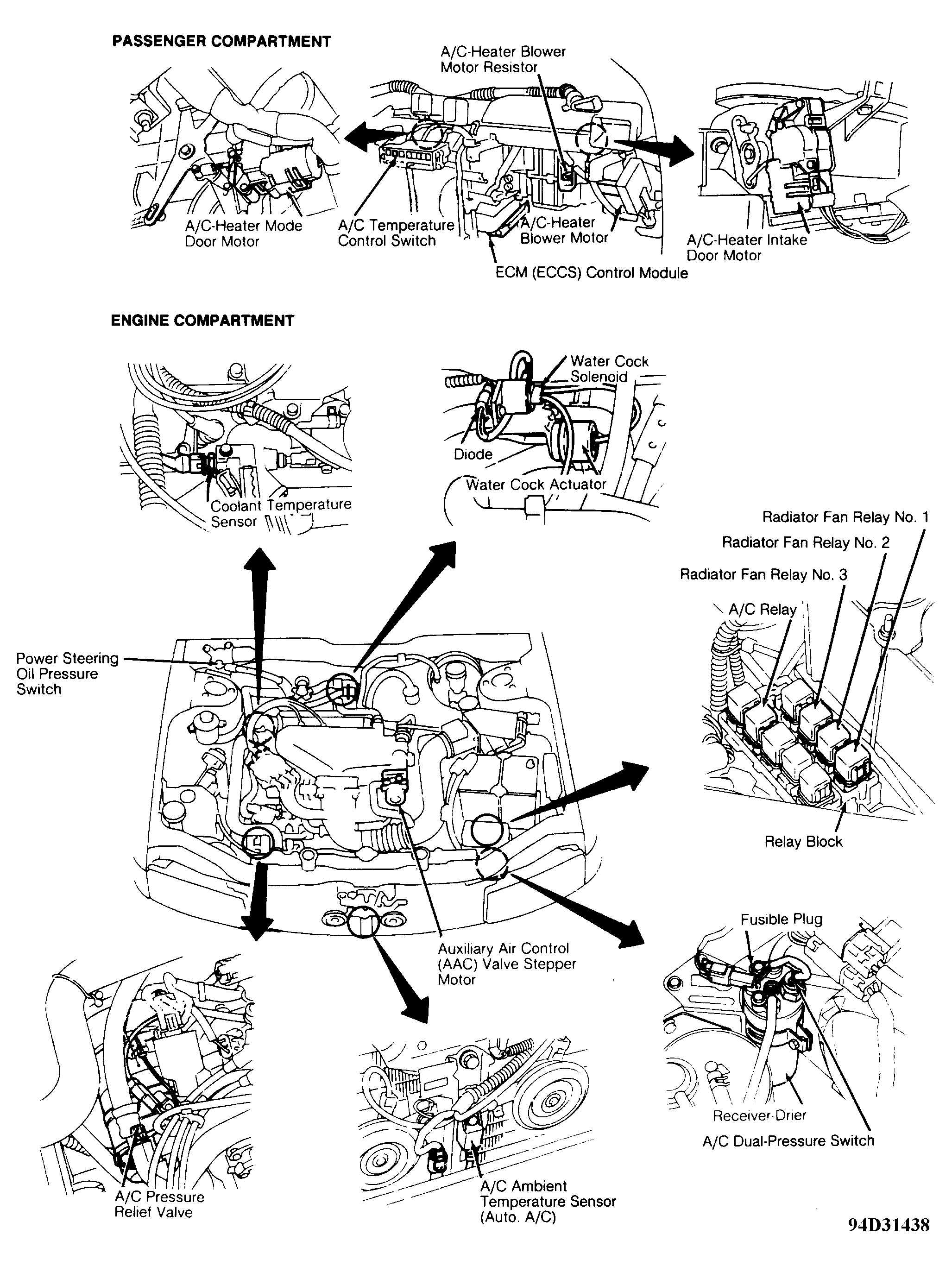

| Relay Block | On left front corner of engine compartment, in front of battery. See Figure - Figure . |
