Control Valve Upper Body: Reassembly

Lay control valve body face down when installing valves. DO NOT stand valve body on edge. Lubricate valves and control valve body with ATF prior to installation. Install control valves by sliding valves into appropriate bores. DO NOT scratch or damage valve body. Wrap shaft of small screwdriver with vinyl tape and insert valves into bores using screwdriver as necessary.
Install 1-2 accumulator valve, then align 1-2 accumulator retainer plate with 1-2 accumulator valve from opposite side of control valve body. Install return spring, 1-2 accumulator piston and plug. See Fig 1. While pushing plug or return spring, install retainer plates. See UPPER VALVE BODY RETAINER PLATE IDENTIFICATION

table for retainer plate dimensions.

UPPER VALVE BODY RETAINER PLATE IDENTIFICATION ⁽¹⁾

Application

⁽²⁾ Length "B" In. (mm)

Lock-Up Control & 2-3 Timing Valves

1.102 (28.00)

Torque Converter Relief, Pilot & 1st Reducing Valves

.846 (21.50)

1-2 Accumulator & Piston Valves

1.516 (38.50)

Overrun Clutch Reducing Valve

.945 (24.00)

⁽¹⁾	See Figure for retainer plate locations.

⁽²⁾	Length "A" for all valves is .236" (6.0 mm). All valves use type "A" retainer plate. See Fig 2.

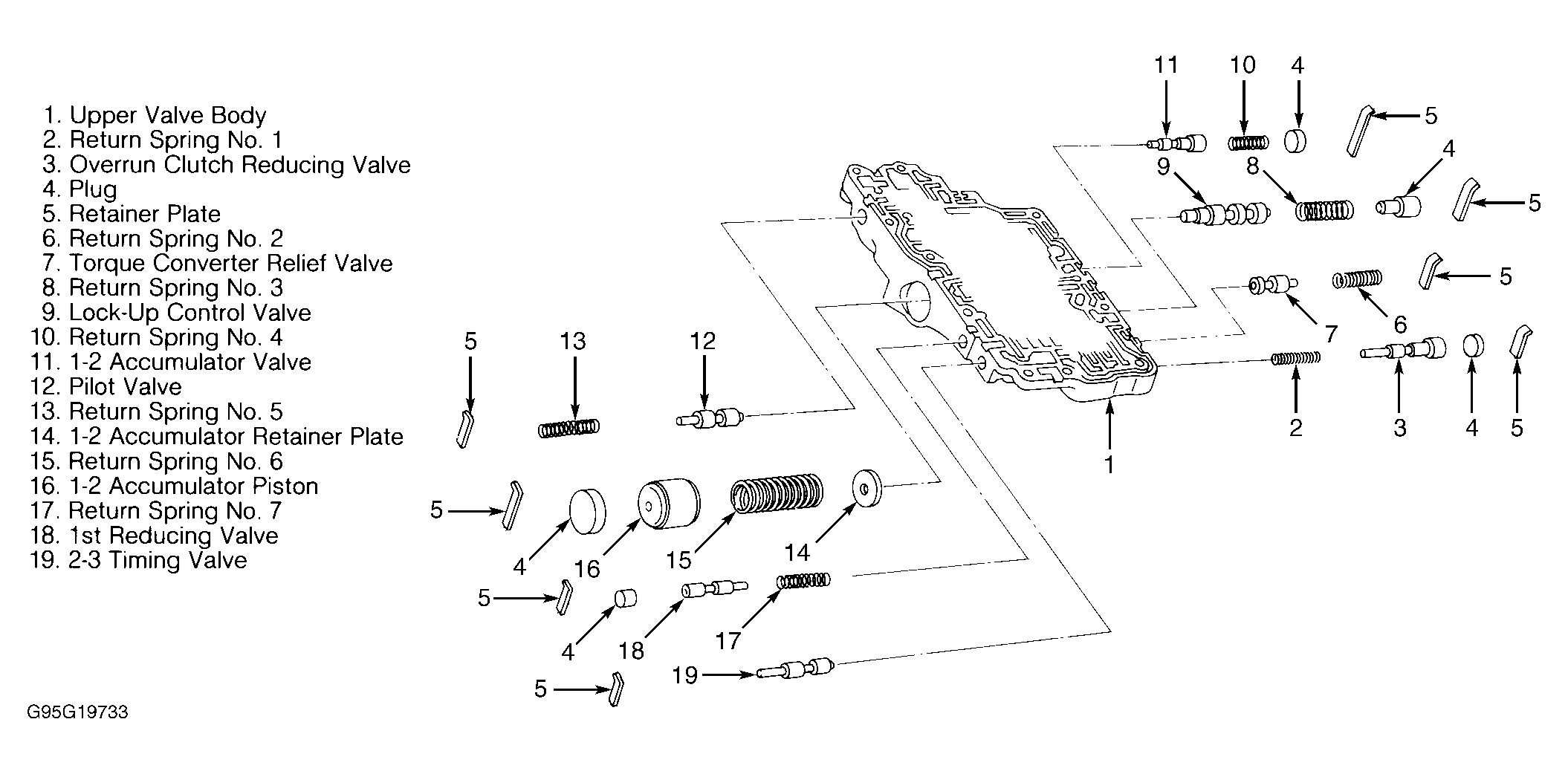

Fig 1: Exploded View Of Control Valve Upper Body
