Low Fuel Warning Light Sensor

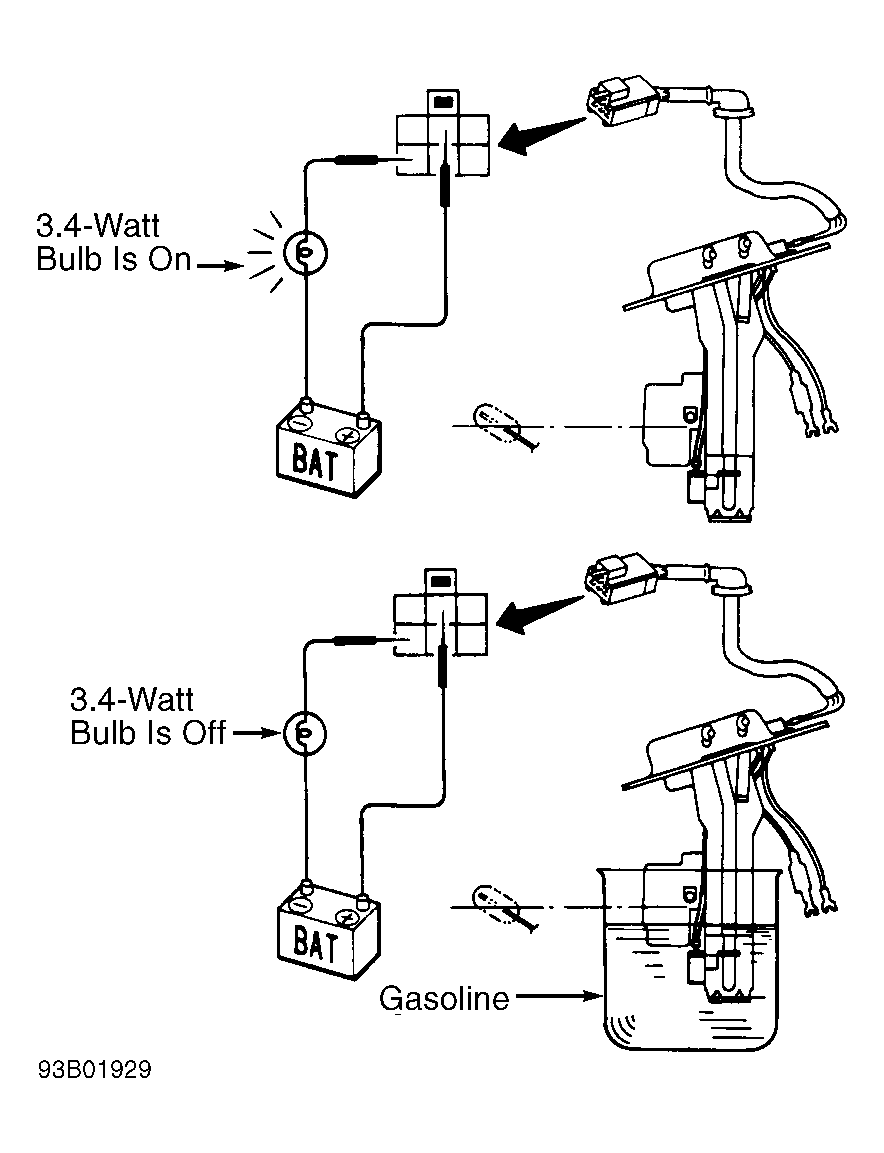

Remove fuel gauge sending unit. Connect a 12-volt battery and a 3.4-watt light bulb, in series, to terminals "E" and "S" of fuel gauge sending unit connector. See Fig 1 . Allow time for light bulb to come on. With sending unit float submerged in gasoline, light should turn off.
