Removal & Installation: Engine: Installation

1. To install, reverse removal procedure. Ensure engine mounts are installed so rubber seats are properly positioned and engine mount is centered in mounting bracket. See Fig 1 . On M/T models, position engine at specified height on engine mount. See Fig 2 .
   Fig 1: Positioning Engine Mounts

   Courtesy of NISSAN MOTOR CO., U.S.A.

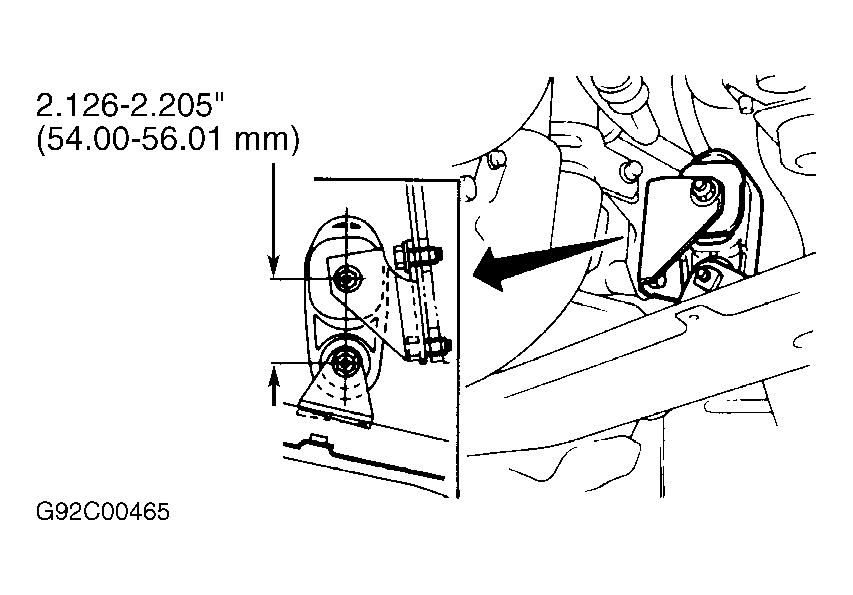

   Fig 2: Adjusting Engine Height On Engine Mount (M/T Models)

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. On all models, install Oil Seal Protector (J-34296 for left side and J-34284 for right side) in oil seal on transaxle before installing axle shaft in transaxle. See Fig 3 .
3. Install axle shaft, and then remove oil seal protector. Ensure axle shaft circular clip locks in groove of differential side gear and axle shaft cannot be pulled out of transaxle.
4. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS  . Evacuate and recharge A/C system (if necessary). Coat fuel hoses-to-fitting surface with small amount of silicone oil before installing. Adjust all control cables and fluid levels. Fill and bleed cooling system. See COOLING SYSTEM BLEEDING  .

Fig 3: Installing Oil Seal Protector

Courtesy of NISSAN MOTOR CO., U.S.A.
