Speedometer & Speed Sensor
›
With Tachometer
With Tachometer
For speedometer and speed sensor testing on models equipped with a tachometer, see
Fig 1
.

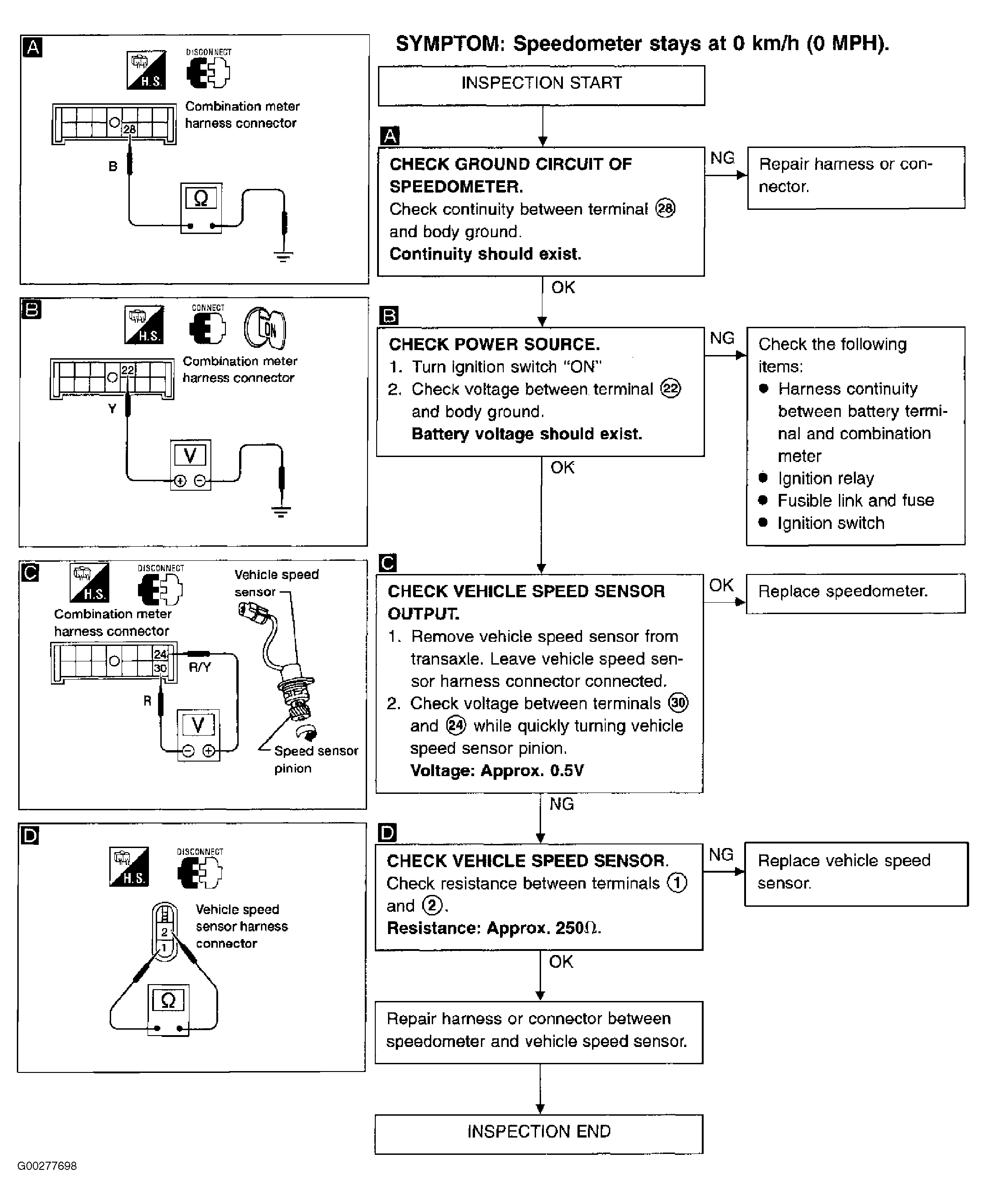

Fig 1: Testing Speedometer & Vehicle Speed Sensor (Sentra & 200SX With Tachometer)
Courtesy of NISSAN MOTOR CO., U.S.A.
