Without Tachometer
For speedometer and speed sensor testing on models not equipped with a tachometer, see
Fig 1
.

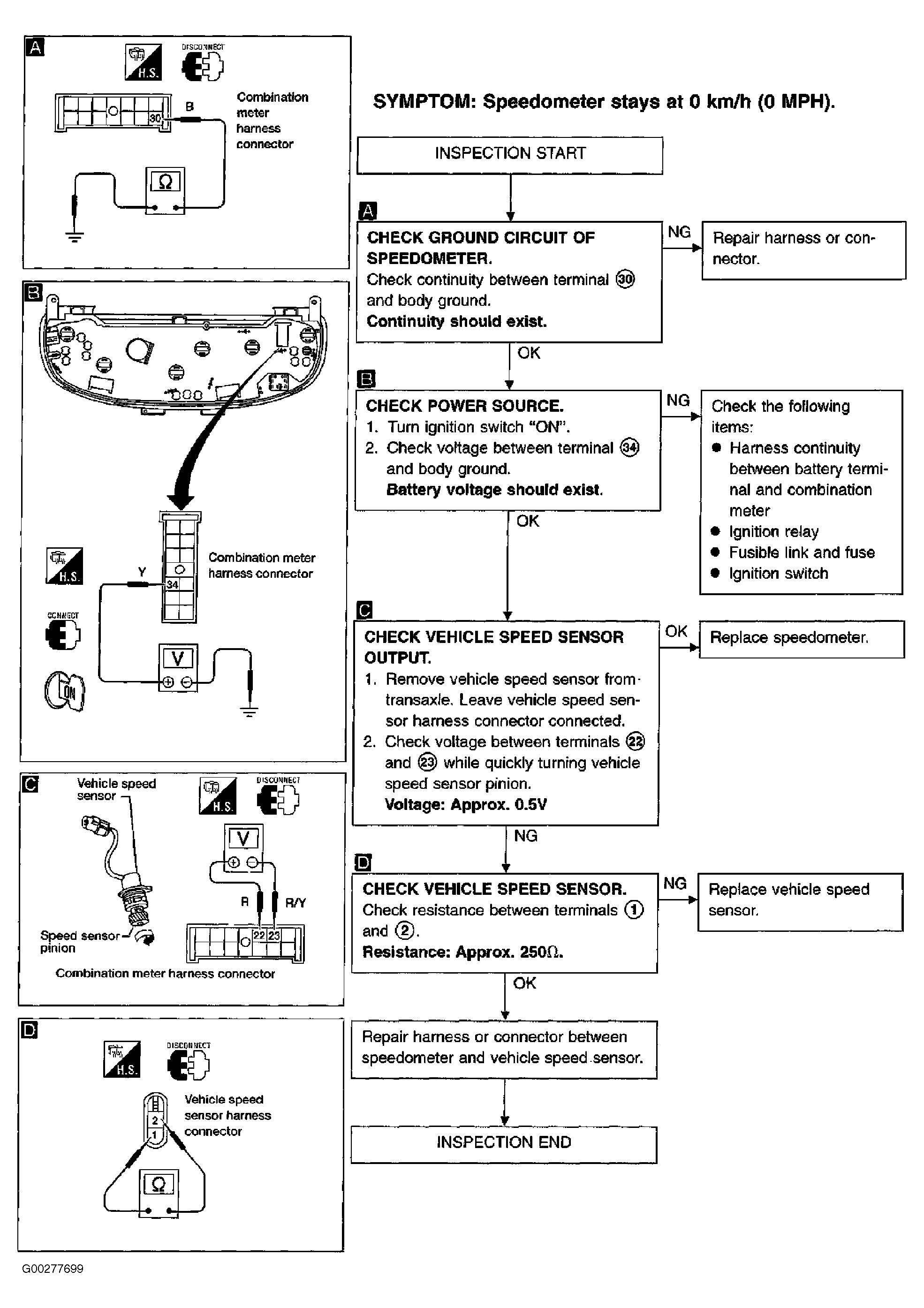

Fig 1: Testing Speedometer & Vehicle Speed Sensor (Sentra & 200SX Without Tachometer)
Courtesy of NISSAN MOTOR CO., U.S.A.
