Distributor Cap Replacement (NTB97-004A)

Publication date: 1999-05-19
Reference number: NTB97-004A
Supersedes refnos: NTB97-004

DISTRIBUTOR CAP REPLACEMENT

TECHNICAL SERVICE BULLETIN

Reference Number(s): NTB97-004A, Date of Issue: May 19, 1999

NISSAN:	1995-1999 Sentra; 1995-1998 200SX; 1990-1997 Truck; 1998-2000 Frontier, Altima; 2000 Xterra
CLASSIFICATION:	EC97-002A
SECTION:	Engine Control System
APPLIED VEHICLE(S):	1995-1999 Sentra (B14) - GA16DE Engine only; 1995-1998 200SX (B14) - GA16DE Engine only; 1990-97 Truck (D21) - KA24 Engines only; 1998-2000 Frontier (D22) - KA24DE Engine only; 1998-2000 Altima (L30) - All; 2000 Xterra (WD22) - KA24DE Engine only

Superceded Bulletin(s): NTB97-004, Date of Issue: January 22, 1997

NOTE: This amended version of NTB97-004 adds B14, D21, D22, WD22, and L30 information to the Applied Vehicles section. Please discard all paper copies of NTB97-004.

SERVICE INFORMATION

Distributor rotors are now available as replacement parts for the vehicles listed in the Applied Vehicles section of this bulletin. Order them as P/N 22157-4B000.

CAUTION: The rotor hold-down screw securing the distributor rotor to the distributor shaft must be torqued to 32 +/- 3 in-lb (37 +/- 3 kg-cm). If not secured to the proper torque the rotor may come loose causing the engine to stop without warning.

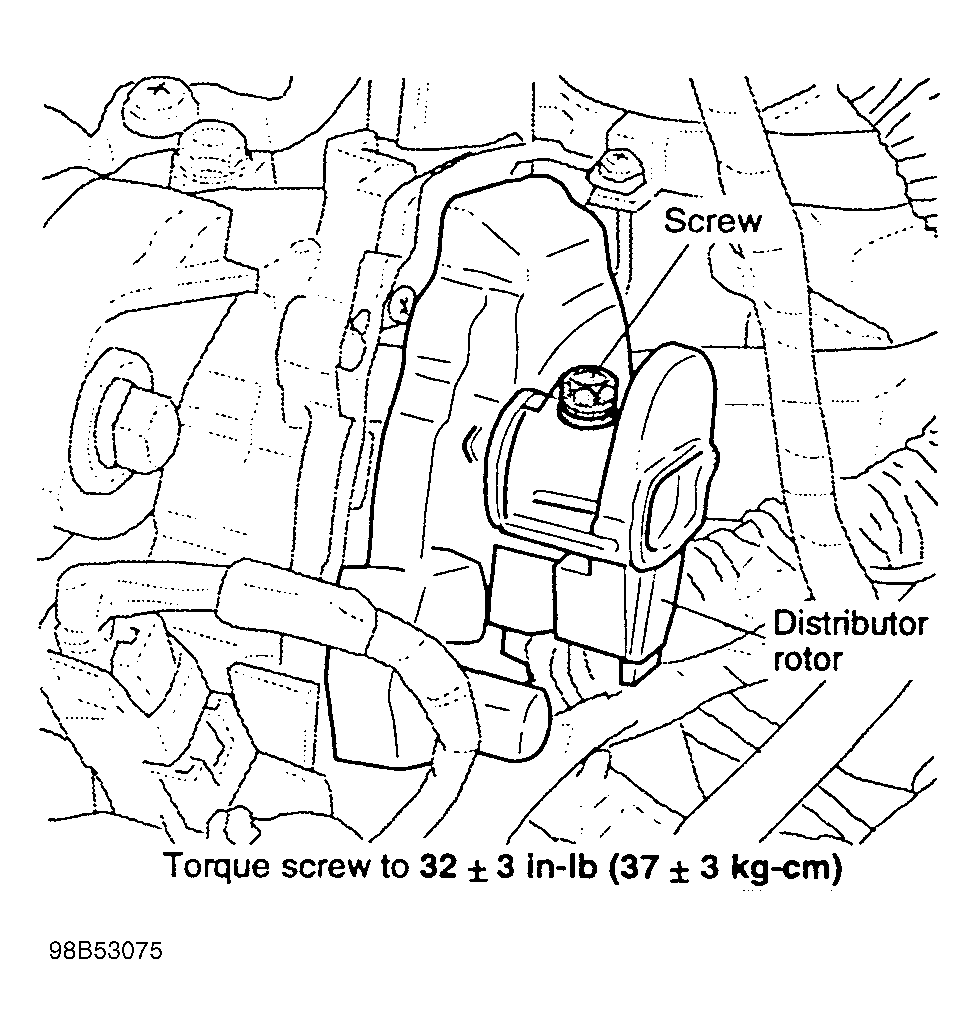

Fig 1: Distributor Rotor

PARTS INFORMATION

Description	Part #/PFP	Quantity
Distributor rotor	22157-4B000	1
