Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

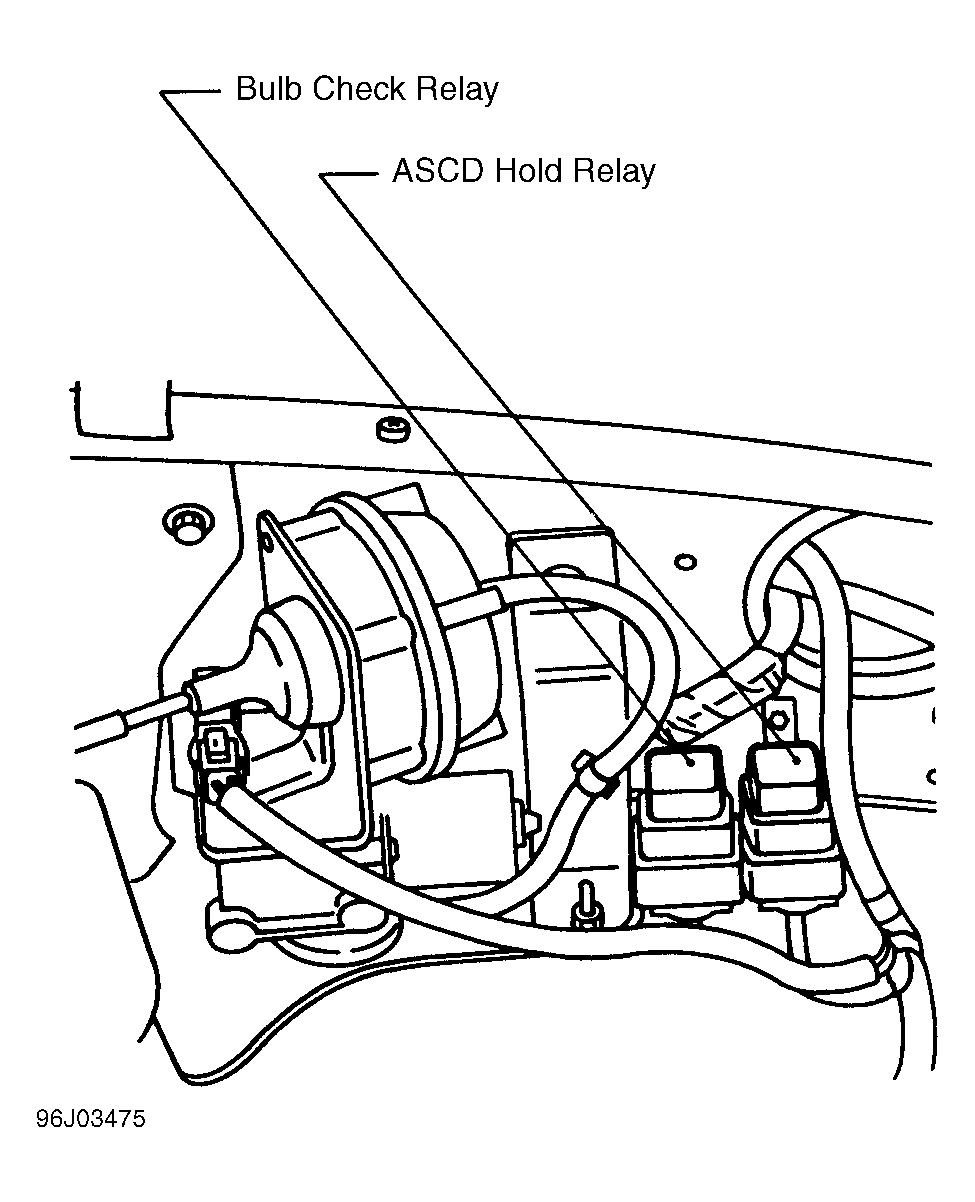

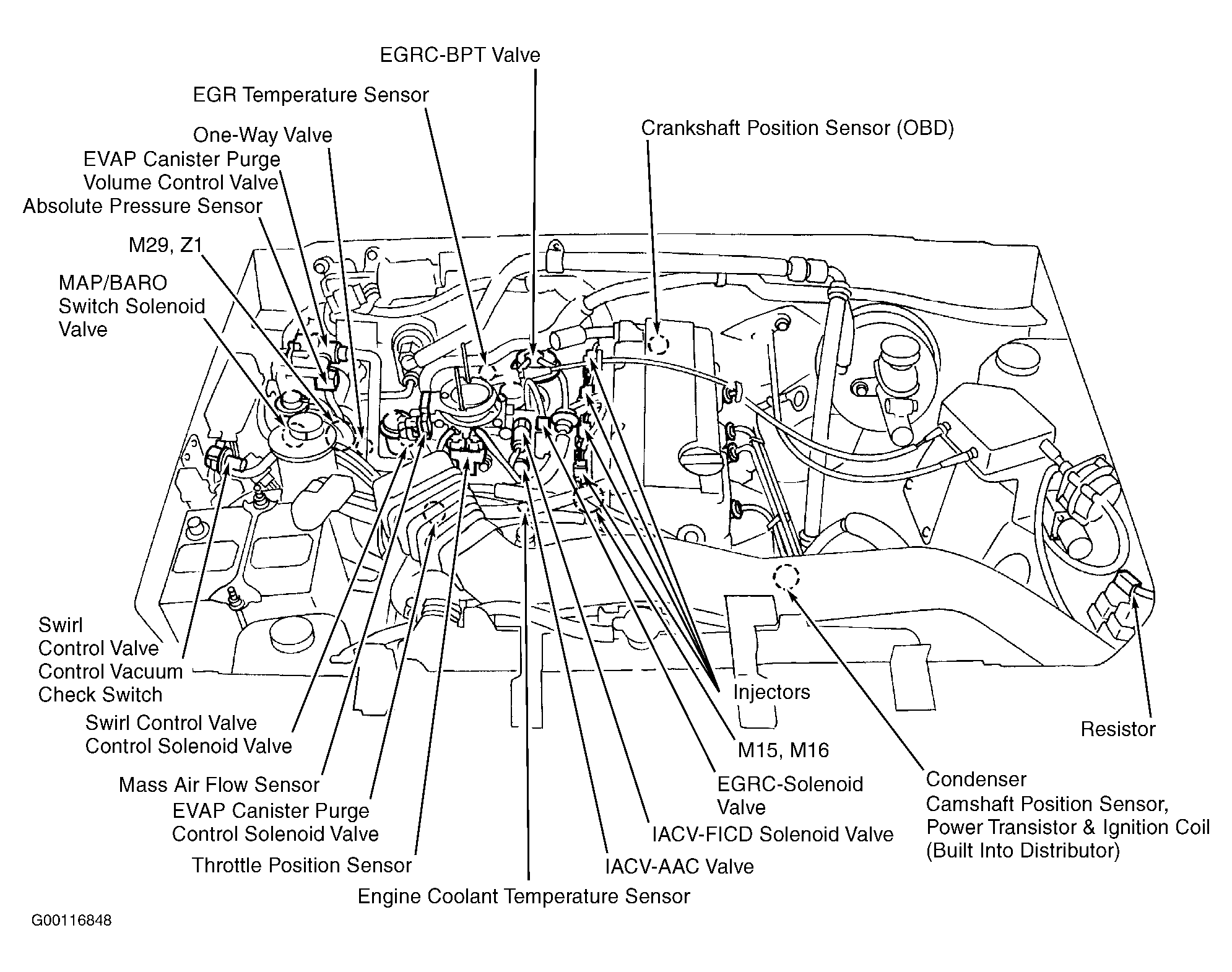

Fig 1: Engine Compartment

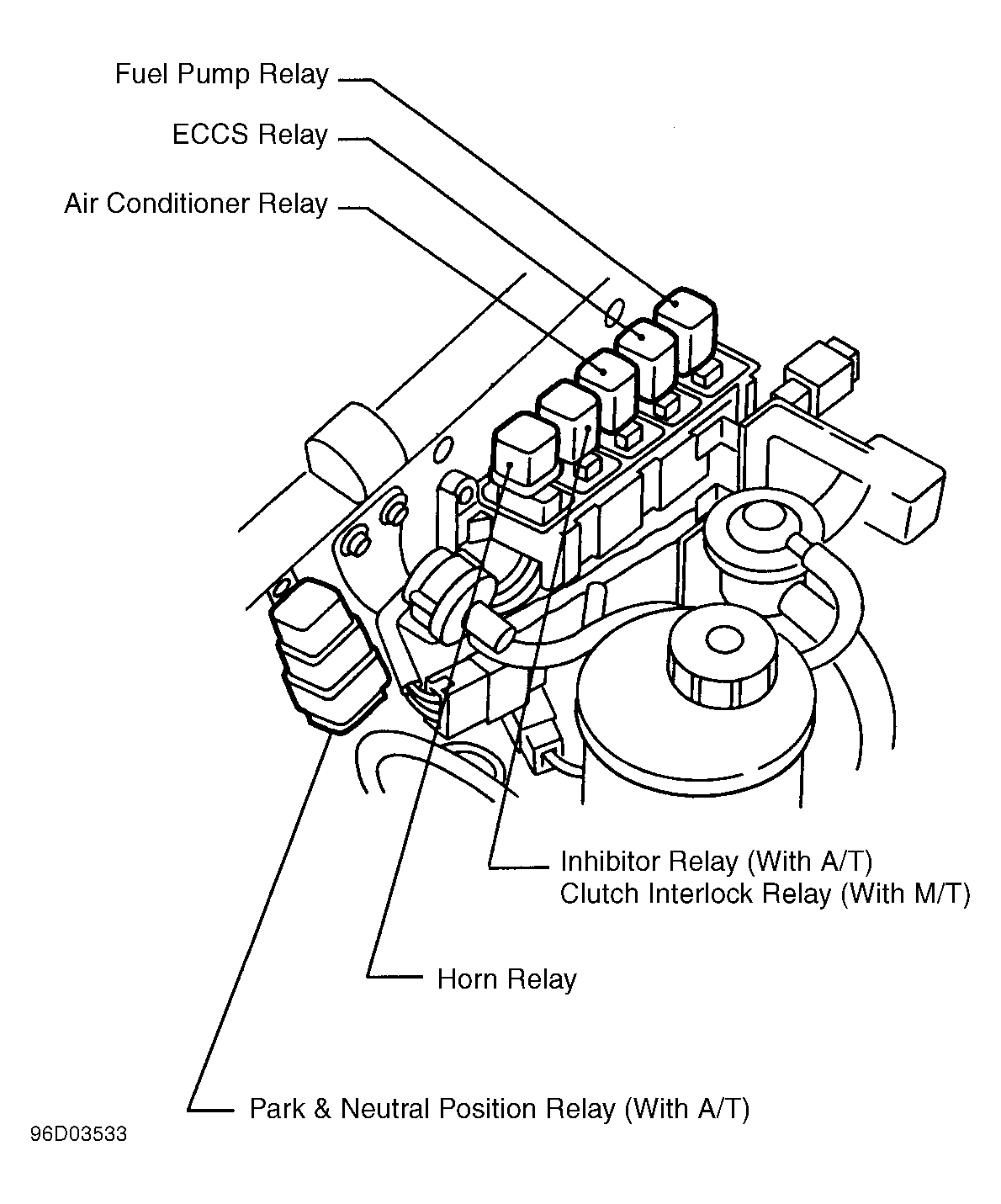

Fig 2: Dash

Fig 3: Left Fender

Fig 4: Right Fender
