Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

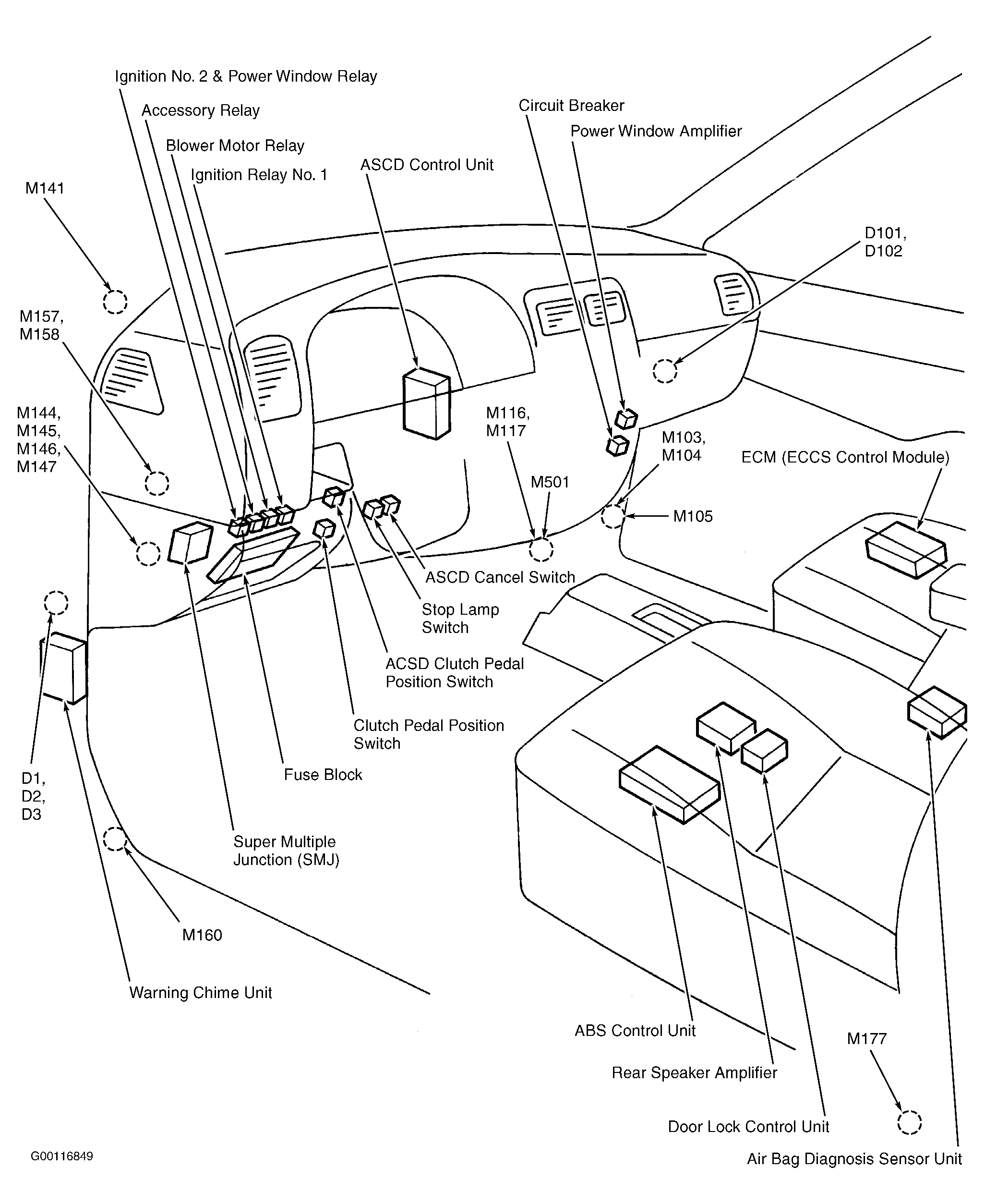

| ABS Control Unit | On floor, below driver's seat. See Figure . |
| Air Bag Diagnosis Sensor Unit | Below rear of center console. See Figure . |
| ASCD Control Unit | Behind dash, right of steering column. See Figure . |
| Daytime Lamp Control Unit (Canada) | On right front corner of engine compartment. |
| Door Lock Control Unit | On floor, below driver's seat. See Figure . |
| ECM (ECCS Control Module) | On floor, below passenger's seat. See Figure . |
| Power Window Amplifier | Behind right kick panel. See Figure . |
| Rear Speaker Amplifier | On floor, below driver's seat. See Figure . |
| Thermal Control Amplifier | Behind right kick panel. |
| Wiper Amplifier | Right side of firewall. |
