Shift Release Button Replacement (NTB97-032)

Publication date: 1997-04-16
Reference number: NTB97-032

SHIFT RELEASE BUTTON REPLACEMENT

TECHNICAL SERVICE BULLETIN

Reference Number(s): NTB97-032, Date of Issue: April 16, 1997

1996-97 SENTRA/200SX SHIFT RELEASE BUTTON REPLACEMENT

Model(s): 1996-97 Nissan Sentra/200SX

Classification: Automatic Transmission/Transaxle

Section: AT97-003

Bulletin No.: NTB97-032

Date: April 16, 1997

APPLIED VEHICLES

1996-97 Sentra/200SX (B14)

APPLIED DATE

Vehicles built from January 1996 through September 1996

APPLIED TRANSMISSION #

Vehicles equipped with automatic transmission only

SERVICE INFORMATION

If a 1996-97 Sentra/200SX vehicle built from 1/96 through 9/96 has a shift release button that breaks or falls out of position, use this bulletin to install a countermeasure button.

The countermeasure release button may be ordered as a service replacement part.

SERVICE PROCEDURE

With the ignition off, the parking brake set and the shift lever in neutral, remove any pieces of the broken release button from the shift knob.
Remove the screw that attaches the shift knob to the shift lever. See Fig 1
Raise the knob assembly straight up (approximately 1/2 inch) on the shift lever.
Install the original spring and the new release button. If a new spring is required, use the part number from the table below.
Hold the button in while pressing the knob assembly back down into its correct location.
Reinstall the screw.
Test for proper operation.

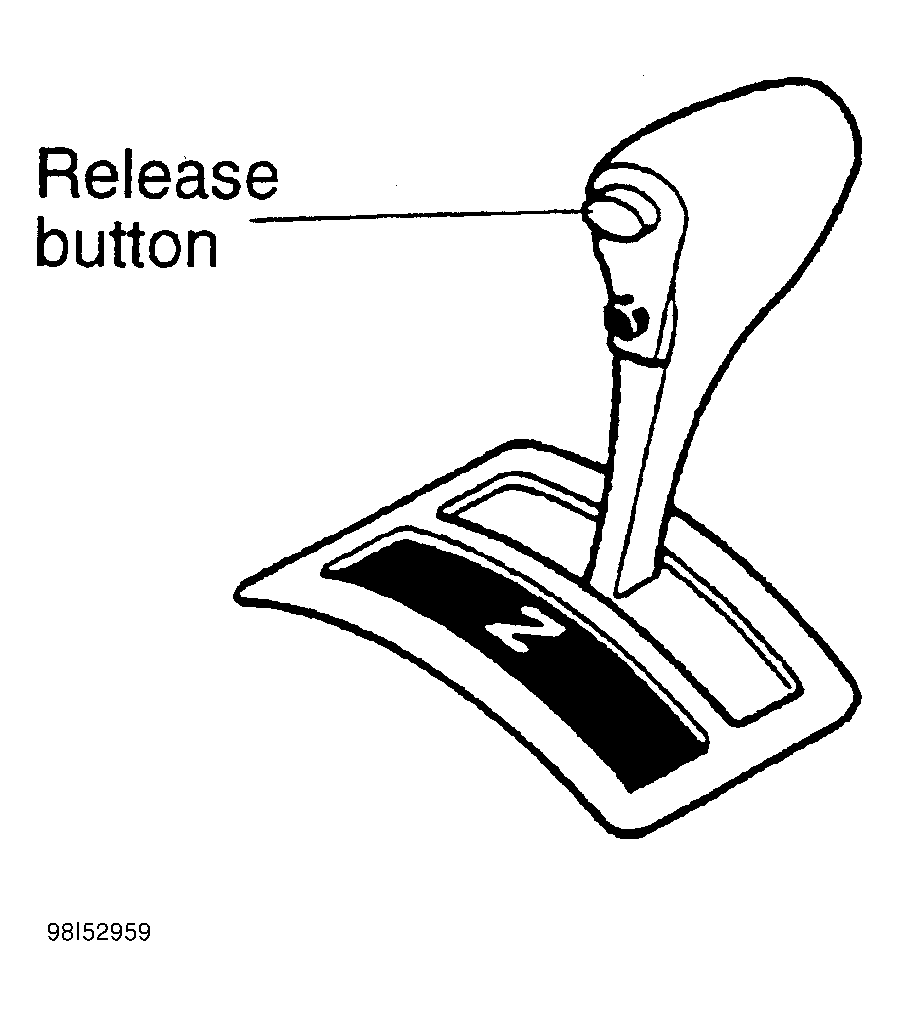

Fig 1: Release Button

PARTS INFORMATION

Description	Part #/PFP	Qty.
Button, A/T shift release	34921-2M121	1
Spring, A/T shift release	34922-01POO	1

CLAIMS INFORMATION

When applicable, normal claims coding applies.
