Nissan-Datsun
›
1998
›
Maxima GLE, RE4F04A
›
Repair and Diagnosis
›
Maintenance
›
Procedures
›
Maintenance Information
›
Service Point Locations
Service Point Locations

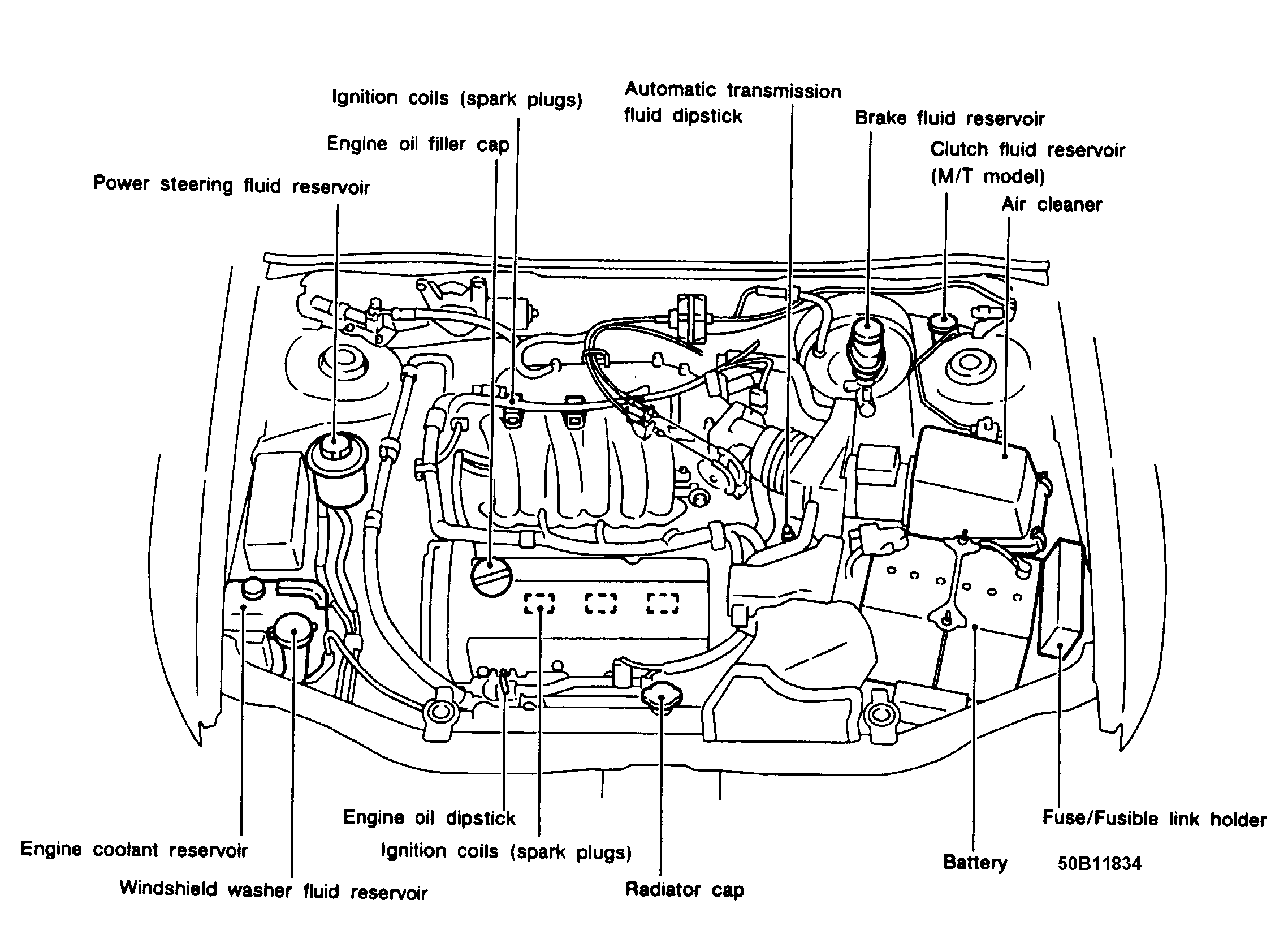

Fig 1: Engine Service Point Locations
Courtesy of NISSAN MOTOR CO., U.S.A.

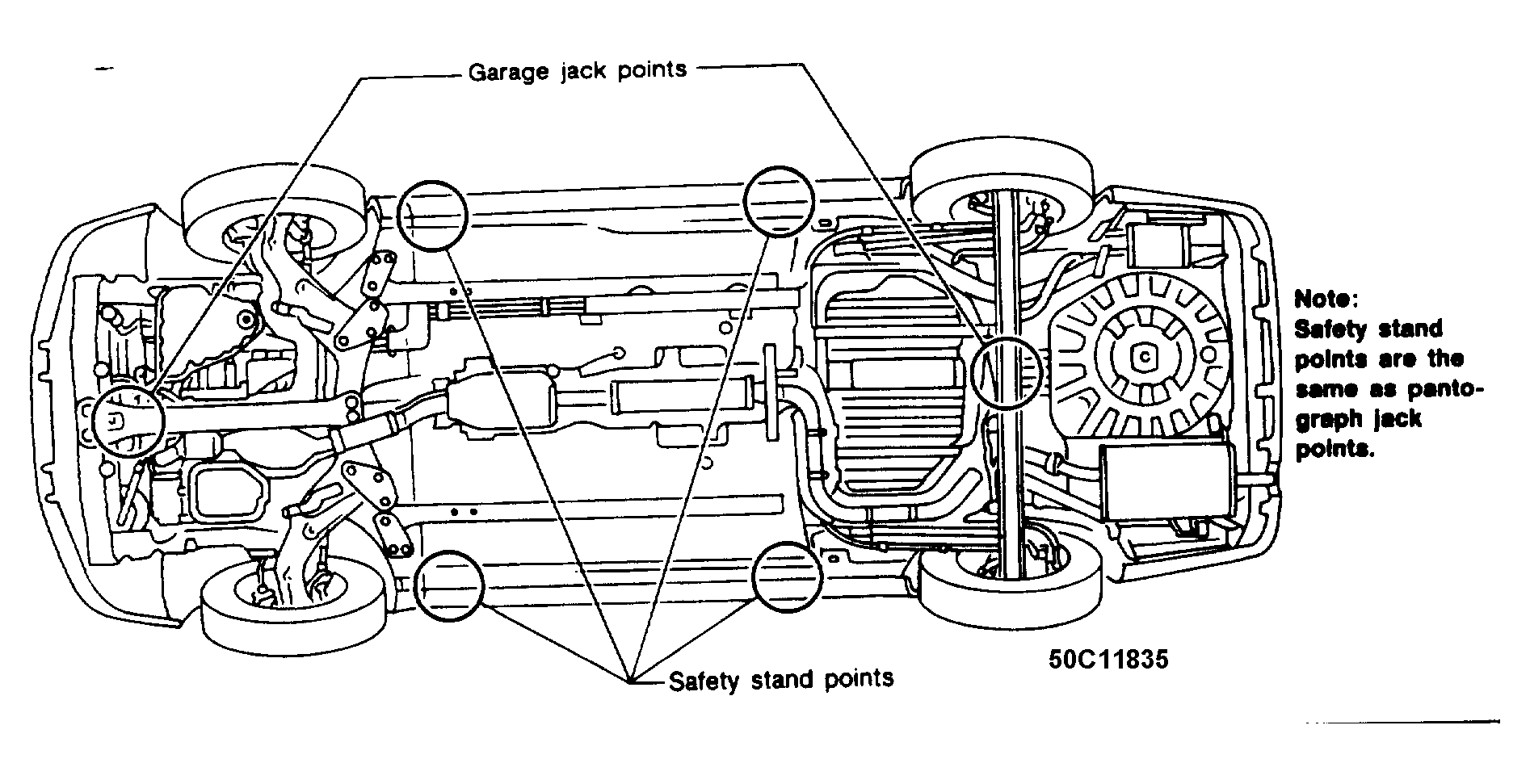

Fig 2: Lift Point Locations
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
